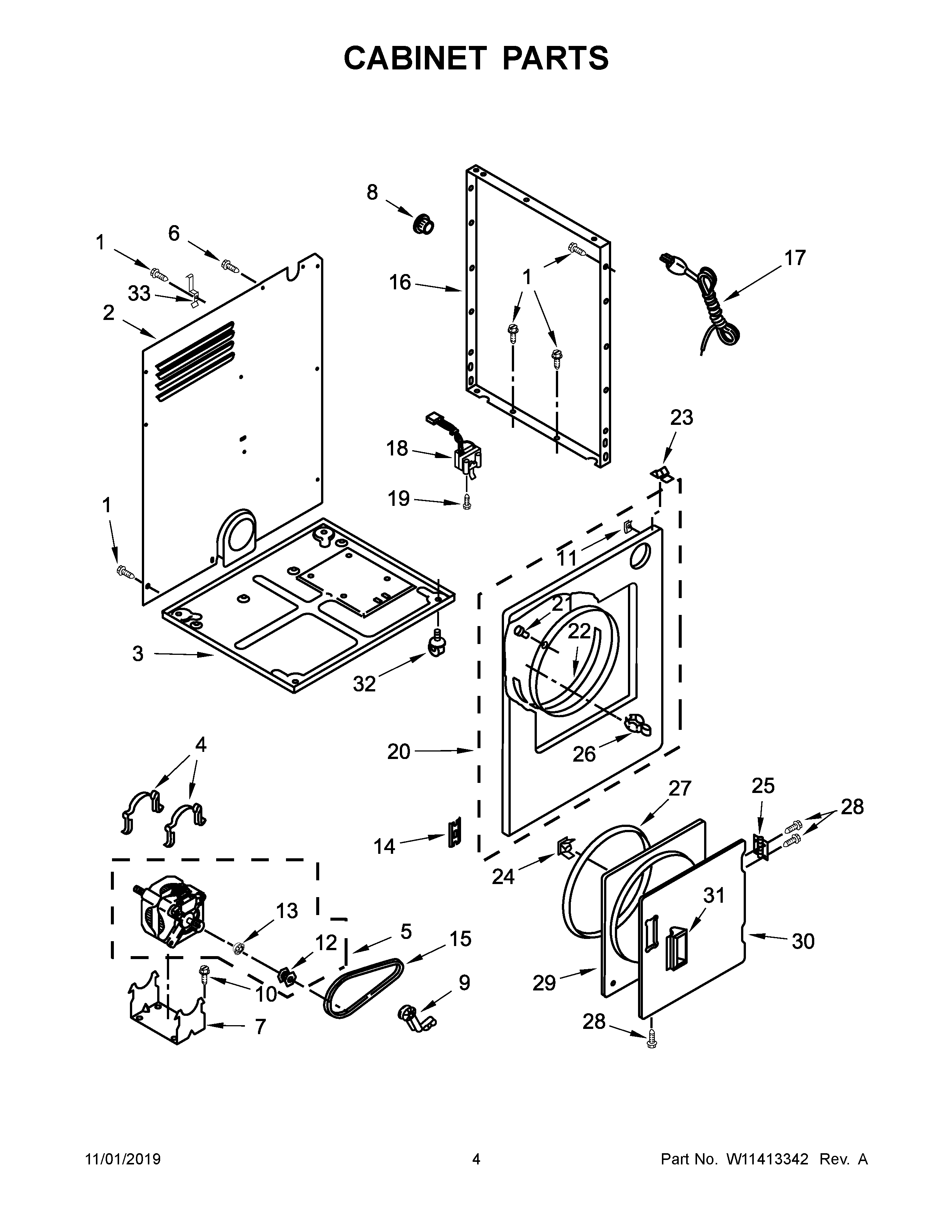

8TLDR3822HQ0 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	280048 Whirlpool Rear Panel
3	WP348726 Whirlpool Base Assembly
4	WP660658 Whirlpool Clamp
5	WPW10448901 Whirlpool Drive Motor
6	WP90767 Whirlpool Screw
7	696541 Whirlpool Base
8	8066084 Whirlpool Clip
9	WP691366 Whirlpool Dryer Idler Pulley Assembly
10	WP3390631 Whirlpool Screw
11	WP98234 Whirlpool Nut
12	8066051 Whirlpool Motor Pulley
13	WP3393657 Whirlpool Belt Retainer
14	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
15	3394652 Whirlpool Drum Belt
16	Panel, Side (2) (White)
17	CORD, POWER
18	WP3406105 Whirlpool Door Switch
19	WP3395530 Whirlpool Screw
20	280044 Whirlpool Panel
21	279220 Whirlpool Clip
22	279264 Whirlpool Bearing and Seal Kit
23	WP345670 Whirlpool Lock
24	WP3389441 Whirlpool Door Catch
25	WP348023 Whirlpool Hinge
26	279570 Whirlpool Dryer Door Latch Kit
27	W11613302 Whirlpool Door Seal
28	WP488627 Whirlpool Refrigerator Screw
29	280077 Whirlpool Door
30	WP348205 Whirlpool Door
31	8562104 Whirlpool Handle
32	279127 Whirlpool Caster
33	345790 Whirlpool Bracket
