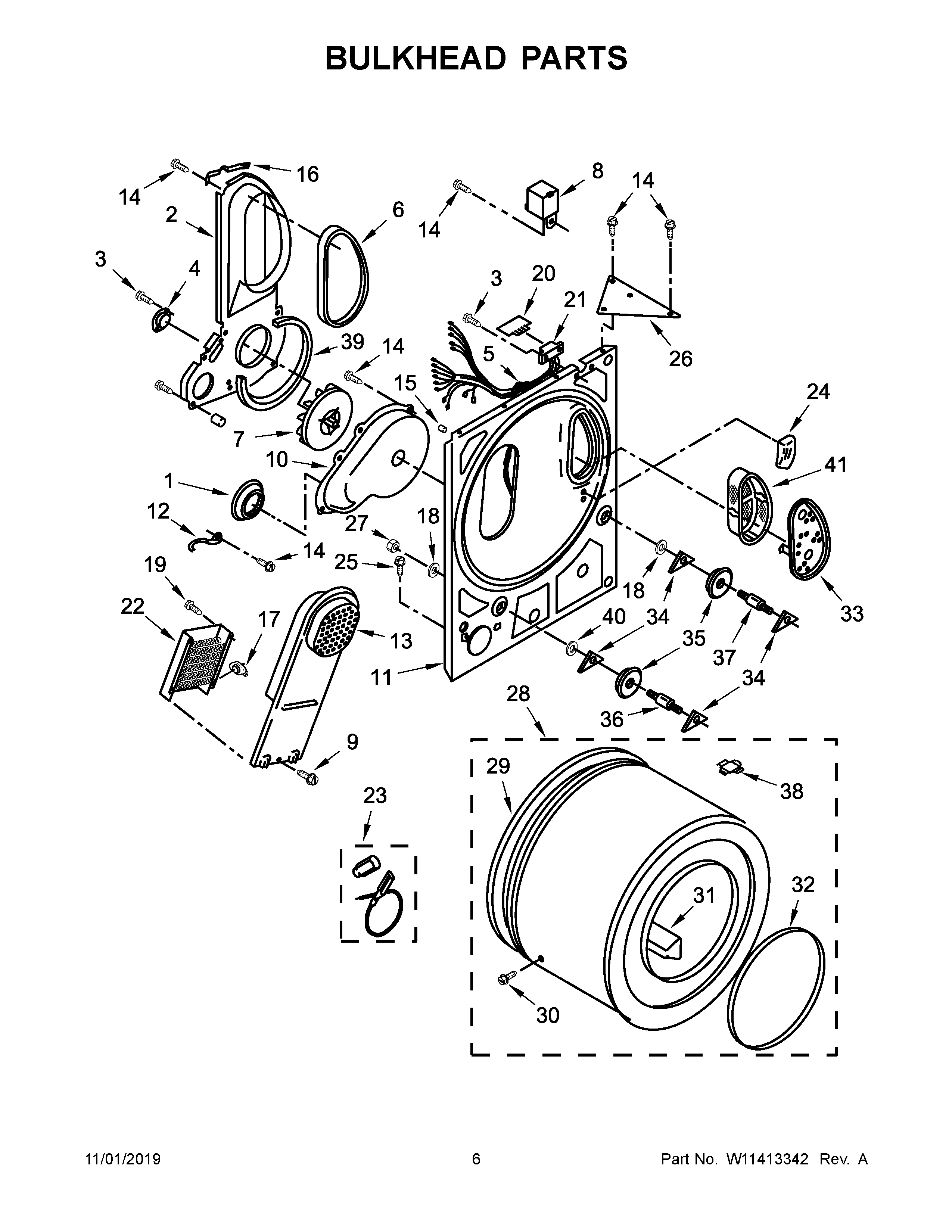

8TLDR3822HQ0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11233063 Whirlpool Shield Assembly
2	Air Duct Assembly
3	WP90767 Whirlpool Screw
4	WP694674 Whirlpool Cycling Thermostat
5	W11368311 Whirlpool Wire Harness
6	SEAL
7	WP696426 Whirlpool Wheel
8	W10503559 Whirlpool Buzzer Adjuster
9	WP489463 Whirlpool Refrigerator Screw
10	696419 Whirlpool Housing
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	WP3401380 Whirlpool Box
14	SCREW
15	W10491983 Whirlpool Tine Tip
16	345396 Whirlpool Clip
17	WP3404153 Whirlpool Thermostat
18	WP348197 Whirlpool Washer Assembly
20	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
21	3391885 Whirlpool Connector
22	WP3403591 Whirlpool Element
23	279457 Whirlpool Dryer Heating Element Wide Spade Connection
24	SENSOR KIT
25	WP3390631 Whirlpool Screw
26	345325 Whirlpool Gusset
27	W11229607 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	W10853898 Whirlpool Screw
31	685207 Whirlpool Dryer Baffle
32	WP3394508 Whirlpool Bearing Ring
33	COVER, LINT SCREEN OUTLET
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	WPW10314173 Whirlpool Dryer Drum Support Wheel
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
38	8066086 Whirlpool Plug
39	8066094 Whirlpool Seal
40	WP3388703 Whirlpool Washer
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
