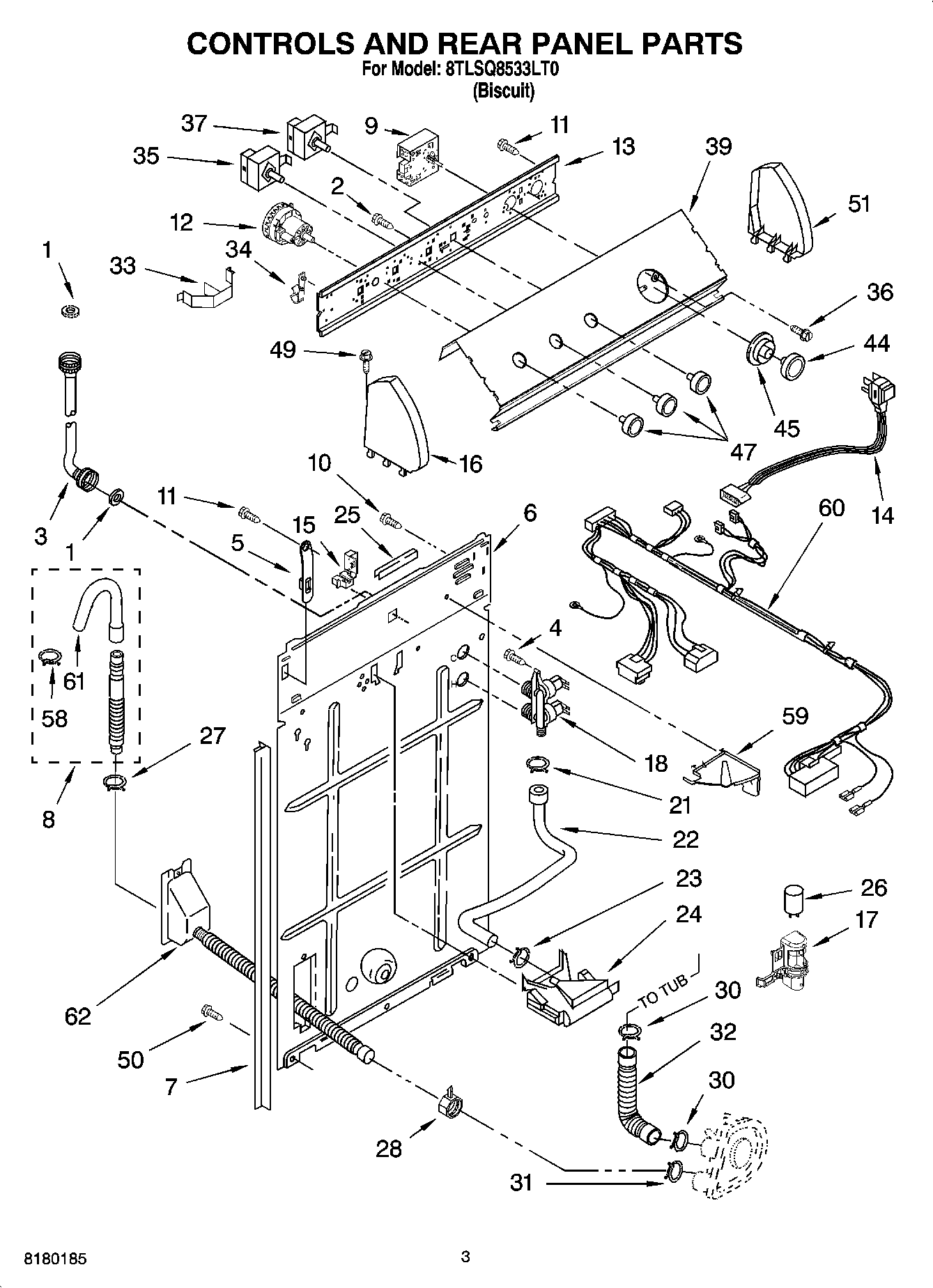

8TLSQ8533LT0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Screw (6)
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	WP3953553 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	W10130795 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	CAPACITOR
27	WP356138 Whirlpool Hose Clamp
28	Clamp, Hose
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Retainer, Harness
35	W10851055 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	3949185 Whirlpool Temperature Switch
39	Panel, Console
44	WP3957822 Whirlpool Knob
45	Dial, Timer (Biscuit)
47	3957797 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	WPL 8271362
58	WP3357331 Whirlpool Clamp
59	WPL 8539874
60	WPL 3956875
61	WP3357027 Whirlpool Nozzle Assembly
62	WPW10358149 Whirlpool Hose
