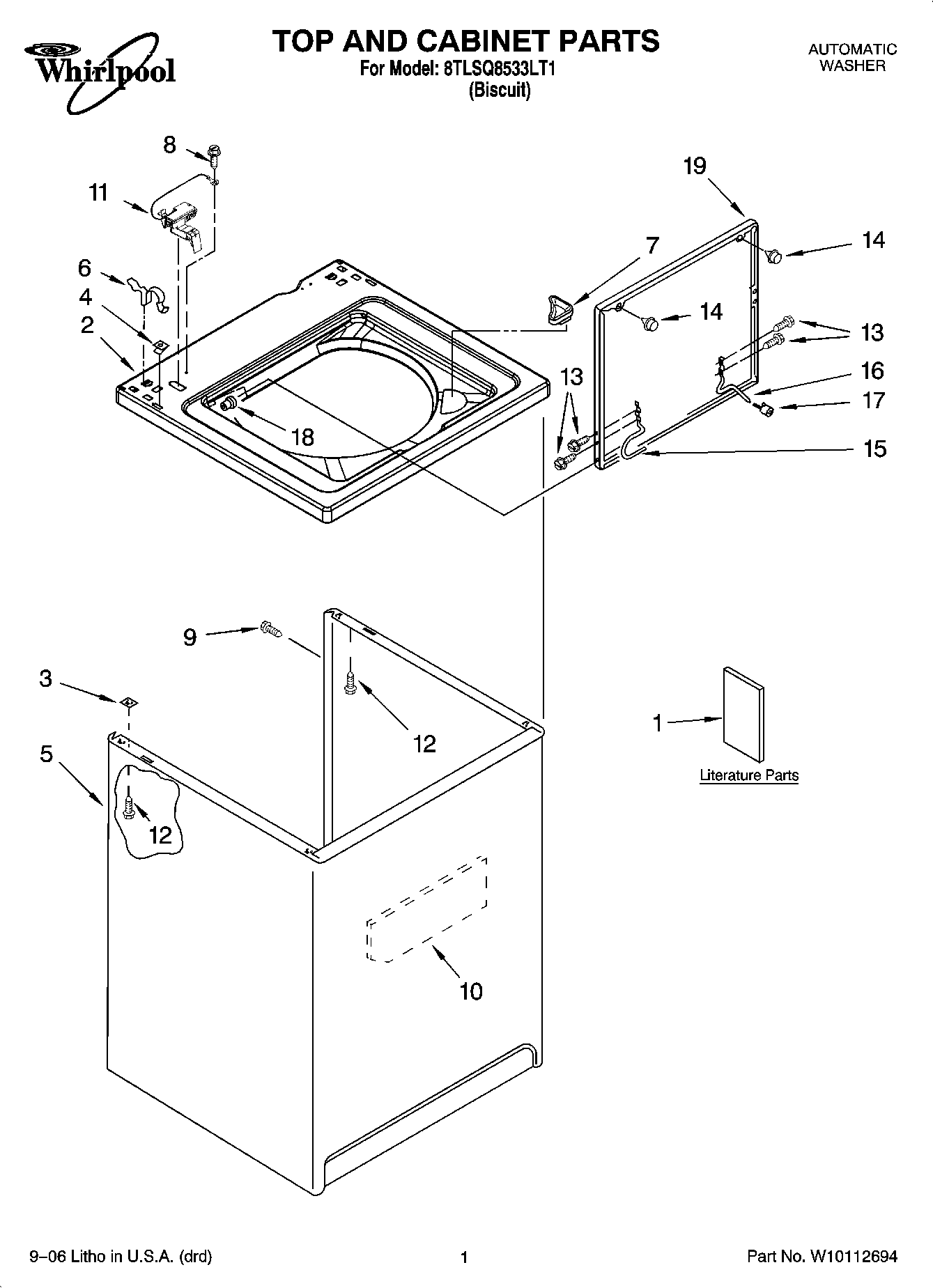

8TLSQ8533LT1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Feature Sheet
1	Use & Care Guide (English/Chinese)
1	Wiring Diagram
2	Top (Biscuit)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet
6	WP62780 Whirlpool Cabinet Clip
7	WP3362952 Whirlpool Bezel
8	WP3351614 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
10	Cabinet – Sound Damper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP3390631 Whirlpool Screw
13	SCREW
14	WP9724509 Whirlpool Bumper
15	8318088 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WP3957511 Whirlpool Lid
