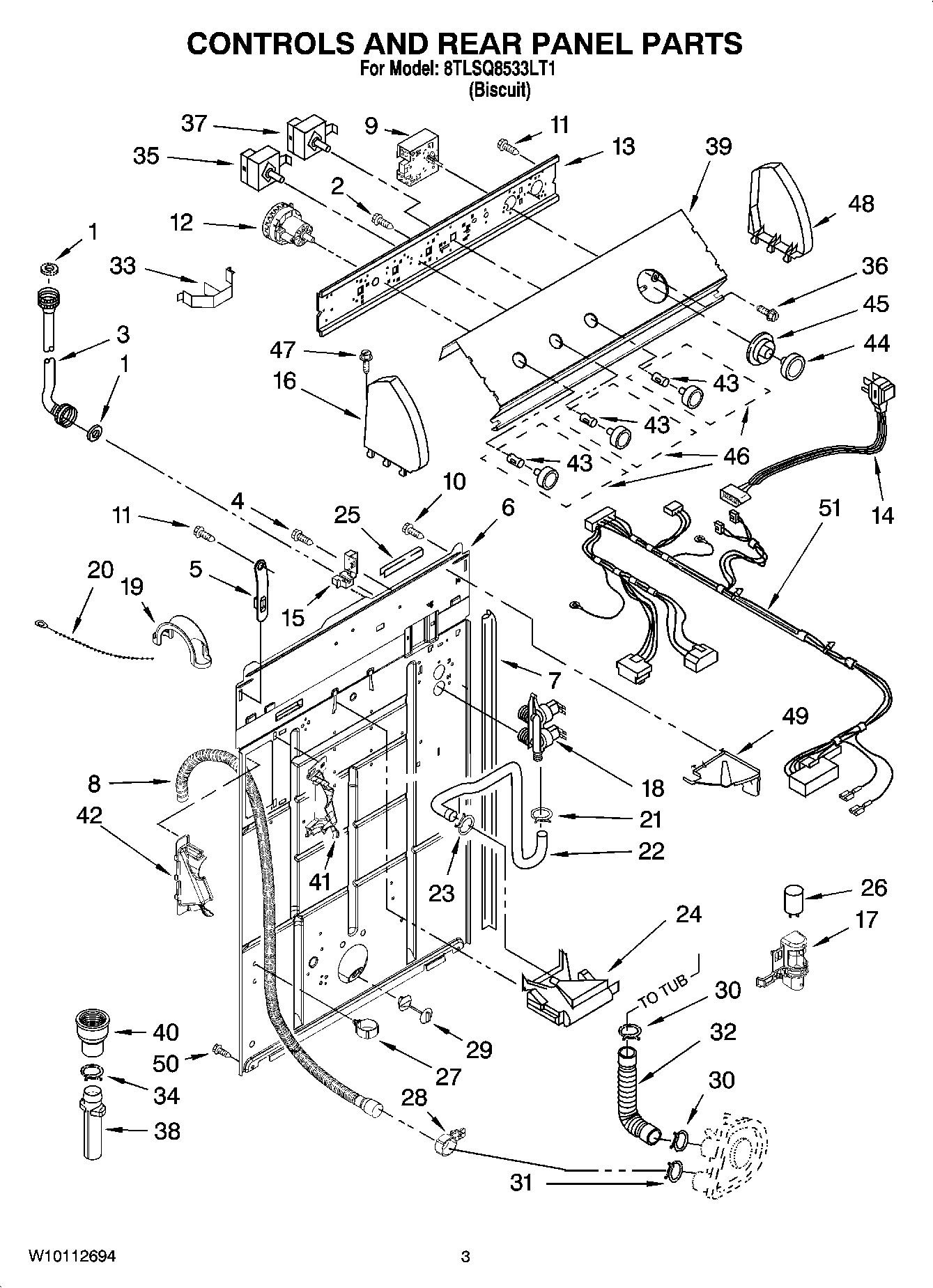

8TLSQ8533LT1 02 – CONTROLS AND REAR PANEL PARTS

8TLSQ8533LT1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

8TLSQ8533LT1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3953553 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14WP8559419 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
19WP8577378 Whirlpool Retainer
20WPW10339879 Whirlpool Wire Tie
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26CAPACITOR
27Clamp, Hose
288541668 Whirlpool Washer Clamp
29WP8519200 Whirlpool Support Assembly
30WP616099 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34WP285655 Whirlpool Hose Clamp
35W10851055 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
373949185 Whirlpool Temperature Switch
383363920A Whirlpool Adapter Assembly
39Panel, Console
40WP8577375 Whirlpool Hose Coupler
42WPW10096921 Whirlpool Hose
43WP8536939 Whirlpool Spring Clip
44WP3957822 Whirlpool Knob
45Dial, Timer (Biscuit)
463957797 Whirlpool Knob
47WP388326 Whirlpool Screw
48WPL 8271362
49WPL 8539874
50WP3390631 Whirlpool Screw
51WPL 3956875
