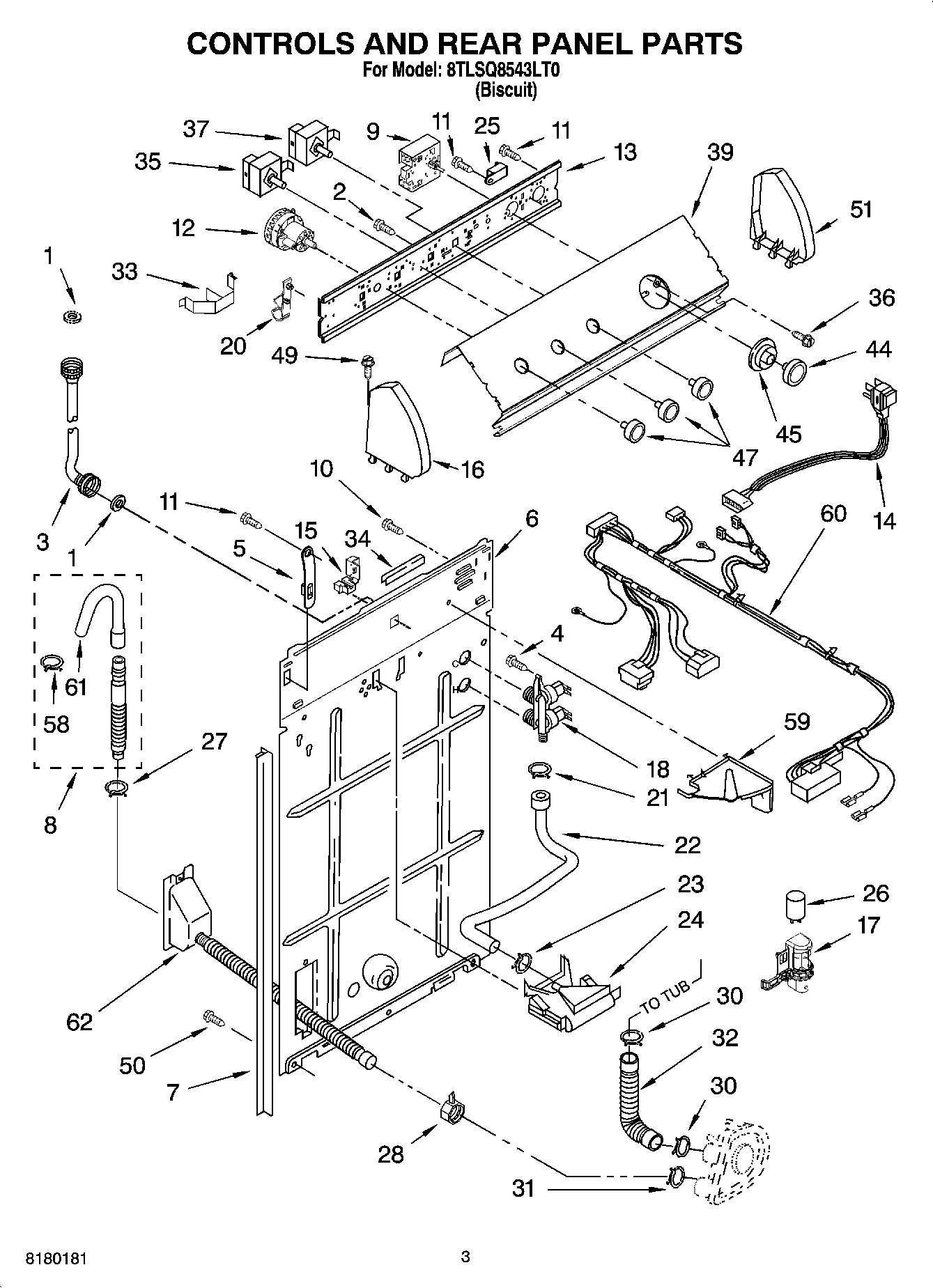

8TLSQ8543LT0 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
8TLSQ8543LT0 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP16123 Whirlpool Washer
2
Screw (6)
3
WP89503 Whirlpool Washer Fill Hose
4
WP9740848 Whirlpool Dishwasher Screw
5
WP8568314 Whirlpool Strap
6
Panel, Rear
7
WP62747 Whirlpool Pad
8
285702 Whirlpool Extensions
8
285664 Whirlpool Drain Hose
8
285666 Whirlpool Drain Hose 10'
9
WP8541270 Whirlpool Timer
10
WP3351614 Whirlpool Screw
11
WP90767 Whirlpool Screw
12
SWITCH-WL
13
WP3948608 Whirlpool Bracket
14
W10130795 Whirlpool Power Cord
15
Strain Relief, Power Cord
16
Cap, End (L.H.) (BIscuit)
17
Clip, Capacitor
18
285805 Whirlpool Washer Water Inlet Valve
20
Retainer, Harness
21
WP596669 Whirlpool Hose Clamp
22
HOSE
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
WP694419 Whirlpool Buzzer Adjuster
26
CAPACITOR
27
WP356138 Whirlpool Hose Clamp
28
Clamp, Hose
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
Clip, Harness & Pressure Hose
34
Edge Protector
35
Switch, Water Temperature
36
WP3400818 Whirlpool Screw
37
WP8528333 Whirlpool Cycle Switch
39
Panel, Console
44
WP3957822 Whirlpool Knob
45
Dial, Timer (Biscuit)
47
3957797 Whirlpool Knob
49
WP388326 Whirlpool Screw
50
WP3390631 Whirlpool Screw
51
WPL 8271362
58
WP3357331 Whirlpool Clamp
59
WPL 8539874
60
3956876 Whirlpool Wire Harness
61
WP3357027 Whirlpool Nozzle Assembly
62
WPW10358149 Whirlpool Hose
←
