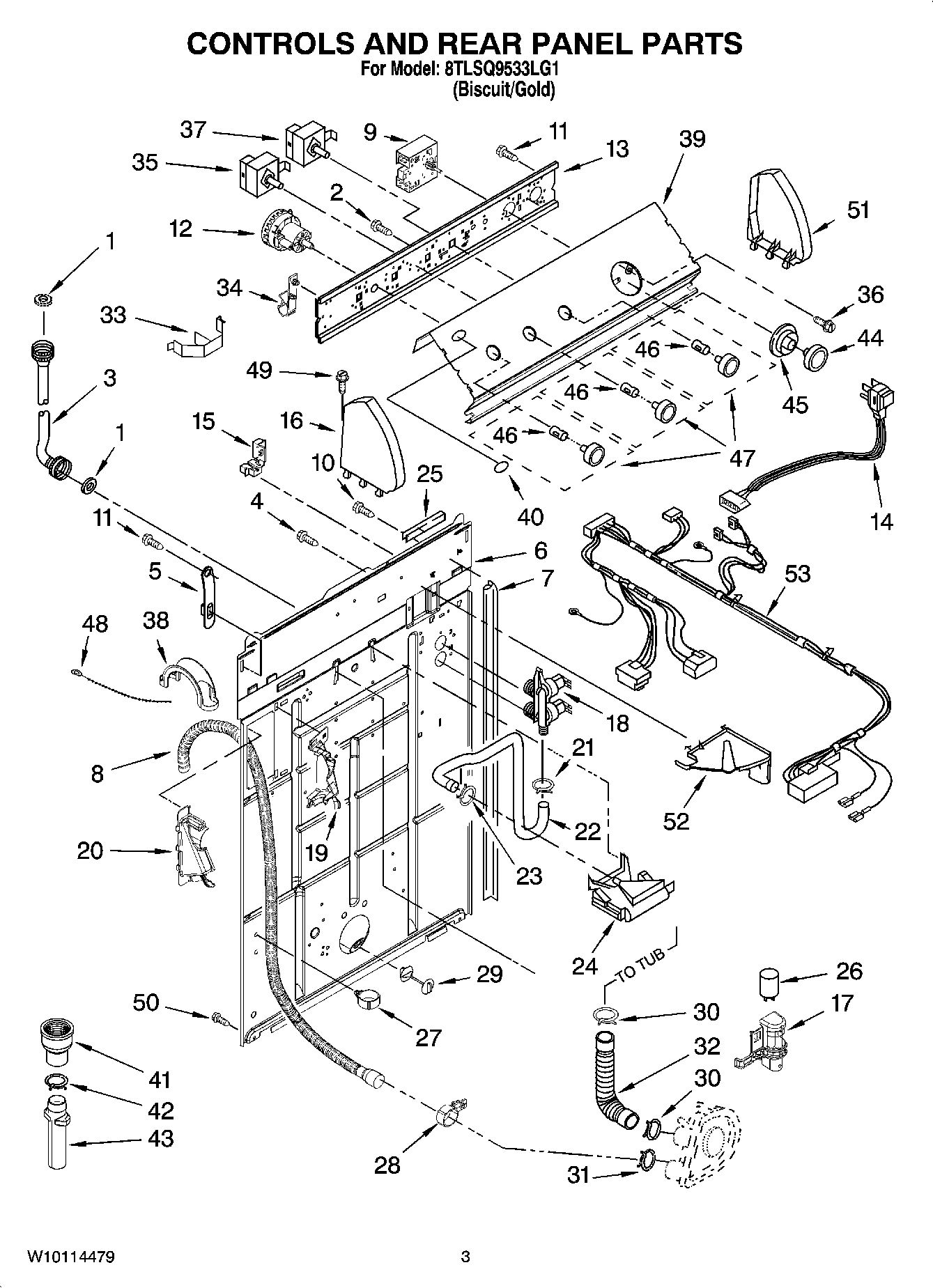

8TLSQ9533LG1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Screw (6)
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3953553 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	WP8559419 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
20	WPW10096921 Whirlpool Hose
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	CAPACITOR
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Retainer, Harness
35	W10851055 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	WPW10168256 Whirlpool Temperature Switch
38	WP8577378 Whirlpool Retainer
39	Panel, Console (Includes Item 40)
40	Medallion
41	WP8577375 Whirlpool Hose Coupler
42	WP285655 Whirlpool Hose Clamp
43	3363920A Whirlpool Adapter Assembly
44	Knob, Timer ((For LSQ9010LG0))
45	WPL 8538956
46	WP8536939 Whirlpool Spring Clip
47	WPL 8538958
48	WPW10339879 Whirlpool Wire Tie
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	WPL 8271362
52	WPL 8539874
53	WPL 3956878
