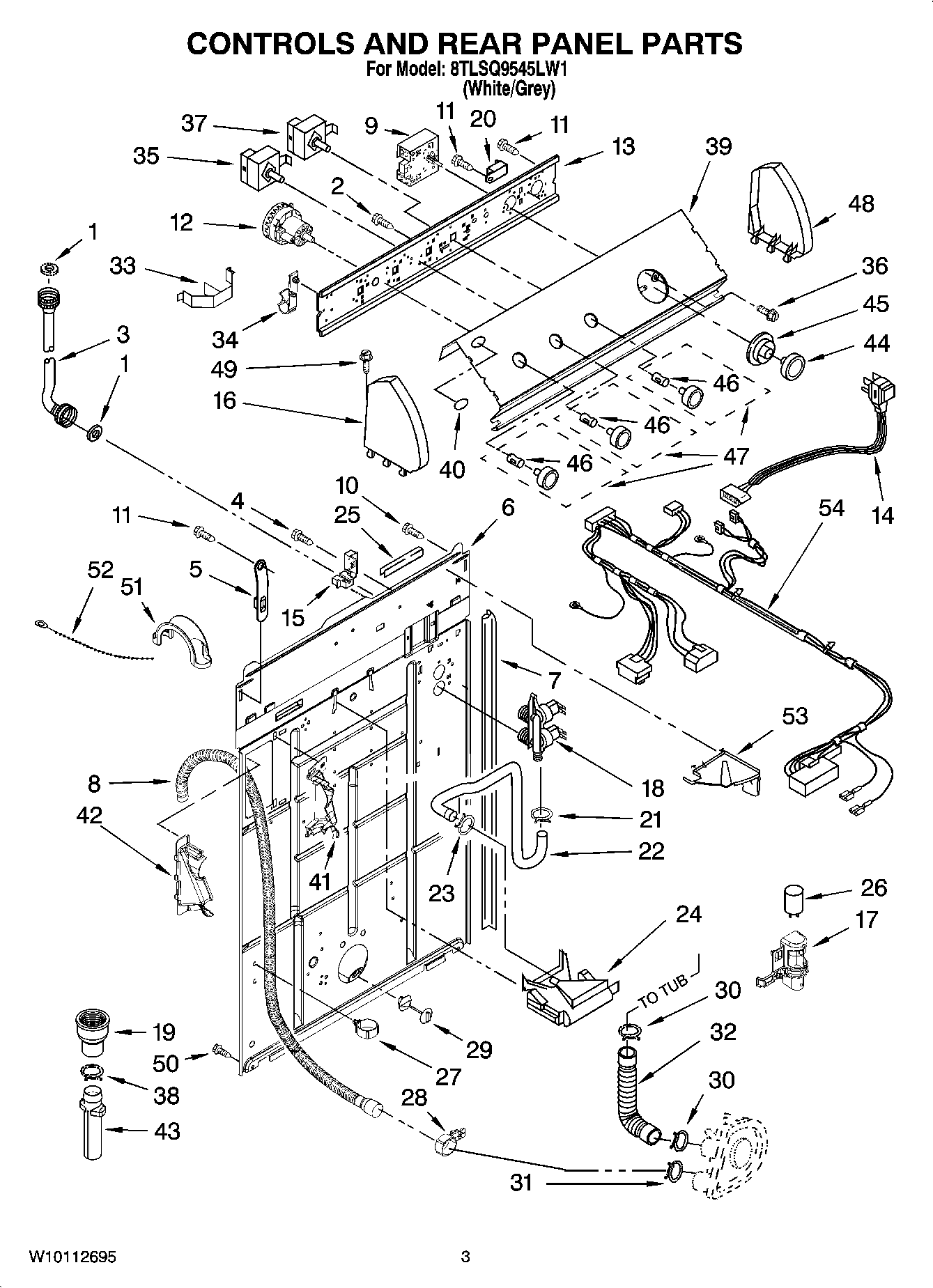

8TLSQ9545LW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Screw (6)
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8541270 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	WP3948608 Whirlpool Bracket
14	WP8559419 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
19	WP8577375 Whirlpool Hose Coupler
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	CAPACITOR
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Retainer, Harness
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
37	WP8528333 Whirlpool Cycle Switch
38	WP285655 Whirlpool Hose Clamp
39	Panel, Console (Includes Item 40)
40	Medallion
42	WPW10096921 Whirlpool Hose
43	3363920A Whirlpool Adapter Assembly
44	WP8538949 Whirlpool Knob
45	WP8538955 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	KNOB
48	W10820038 Whirlpool Endcap
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	WP8577378 Whirlpool Retainer
52	WPW10339879 Whirlpool Wire Tie
53	WPL 8539874
54	3956876 Whirlpool Wire Harness
