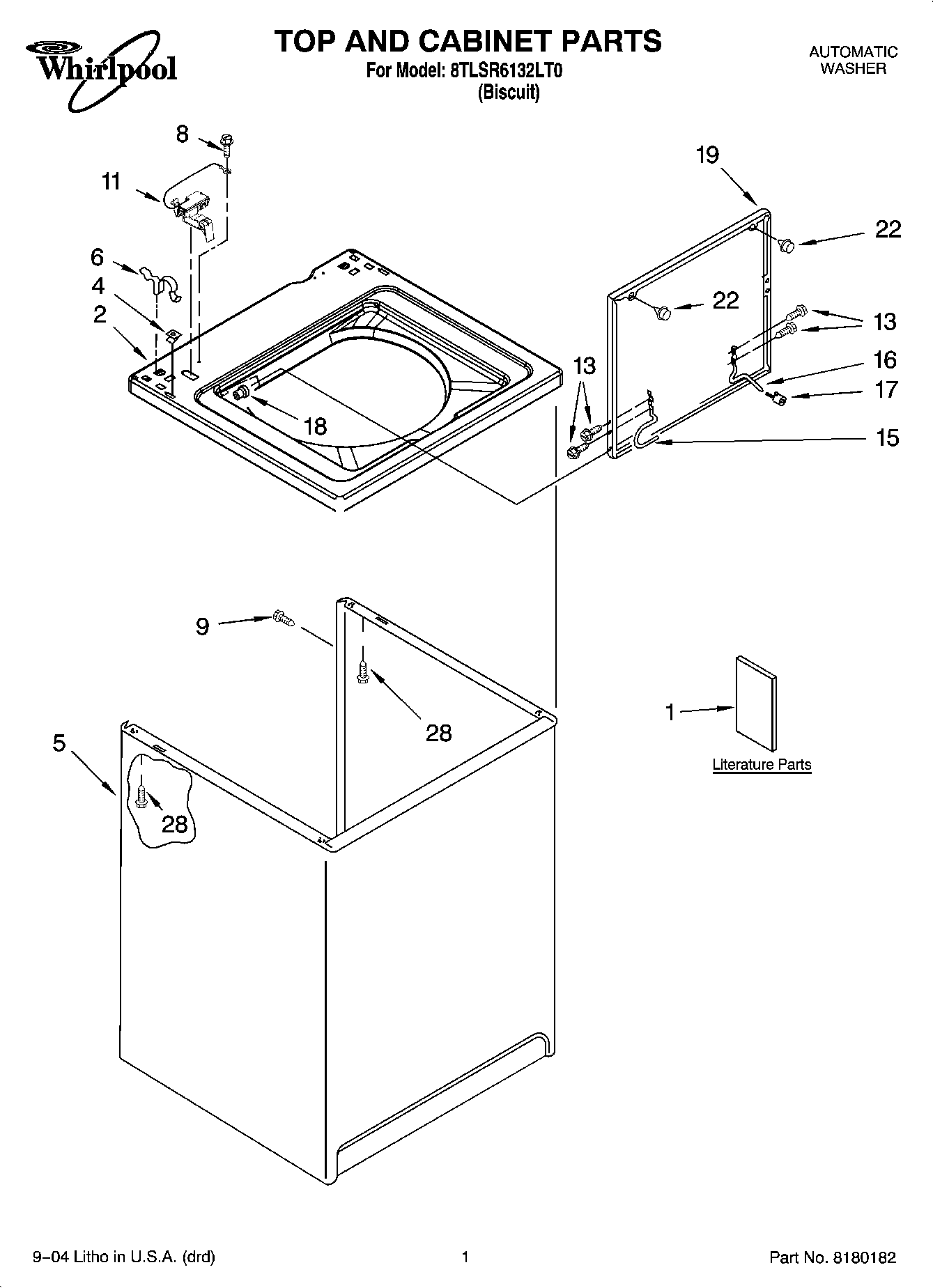

8TLSR6132LT0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Wiring Diagram
1	Use & Care Guide (English/Chinese)
1	Installation Instructions
2	Top (Biscuit)
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet
6	WP62780 Whirlpool Cabinet Clip
8	WP3351614 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
15	8318088 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WP3957511 Whirlpool Lid
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
