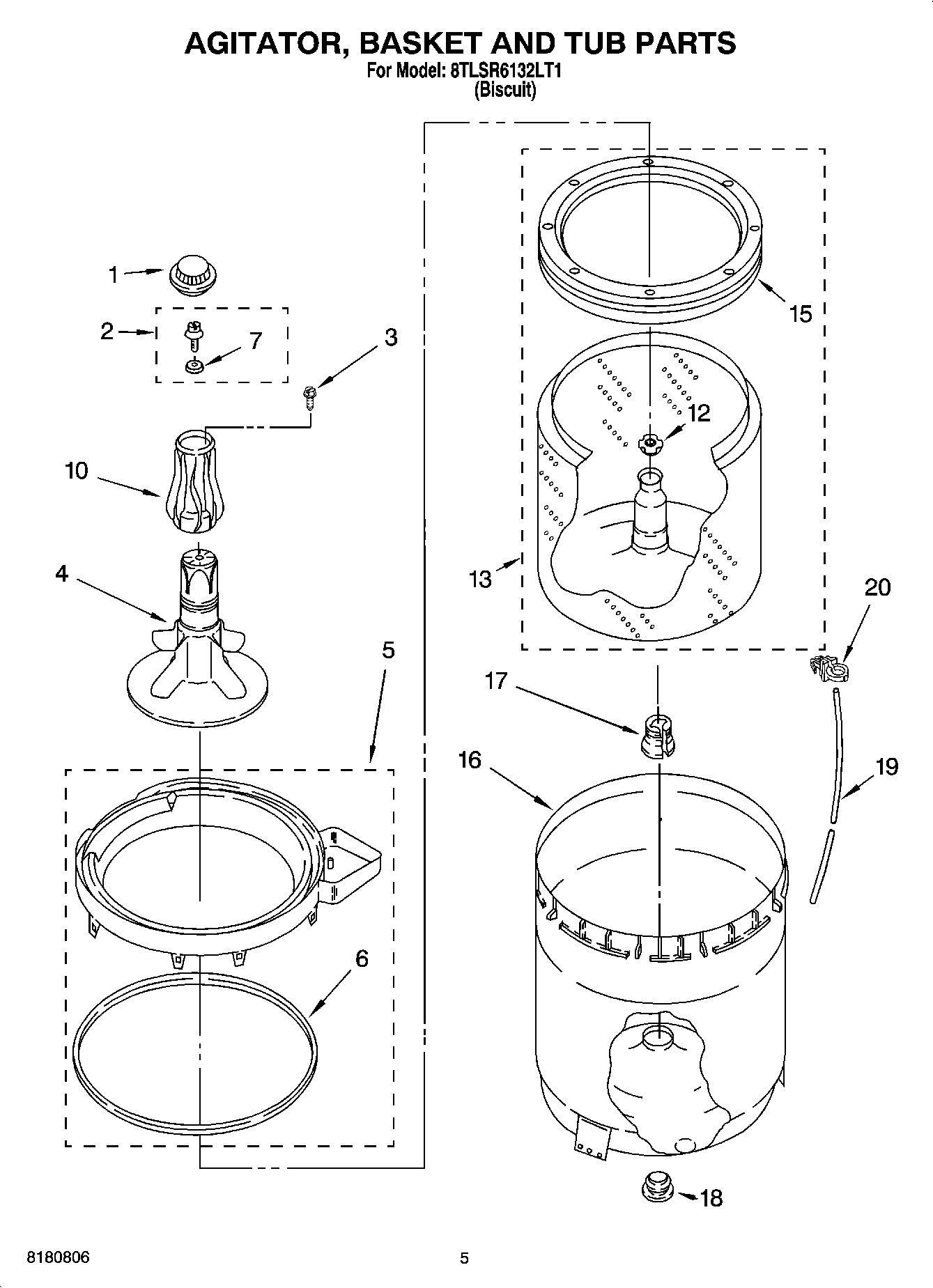

8TLSR6132LT1 03 – AGITATOR, BASKET AND TUB PARTS

8TLSR6132LT1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

8TLSR6132LT1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WPW10109200 Whirlpool Screw
4Agitator
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP3949550 Whirlpool Gasket Assembly
10Filter, Manual
12WP21366 Whirlpool Spanner Nut
13W10389328 Whirlpool Basket
15WP387240 Whirlpool Balance Ring
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
202219077 Whirlpool Refrigerator Clip
