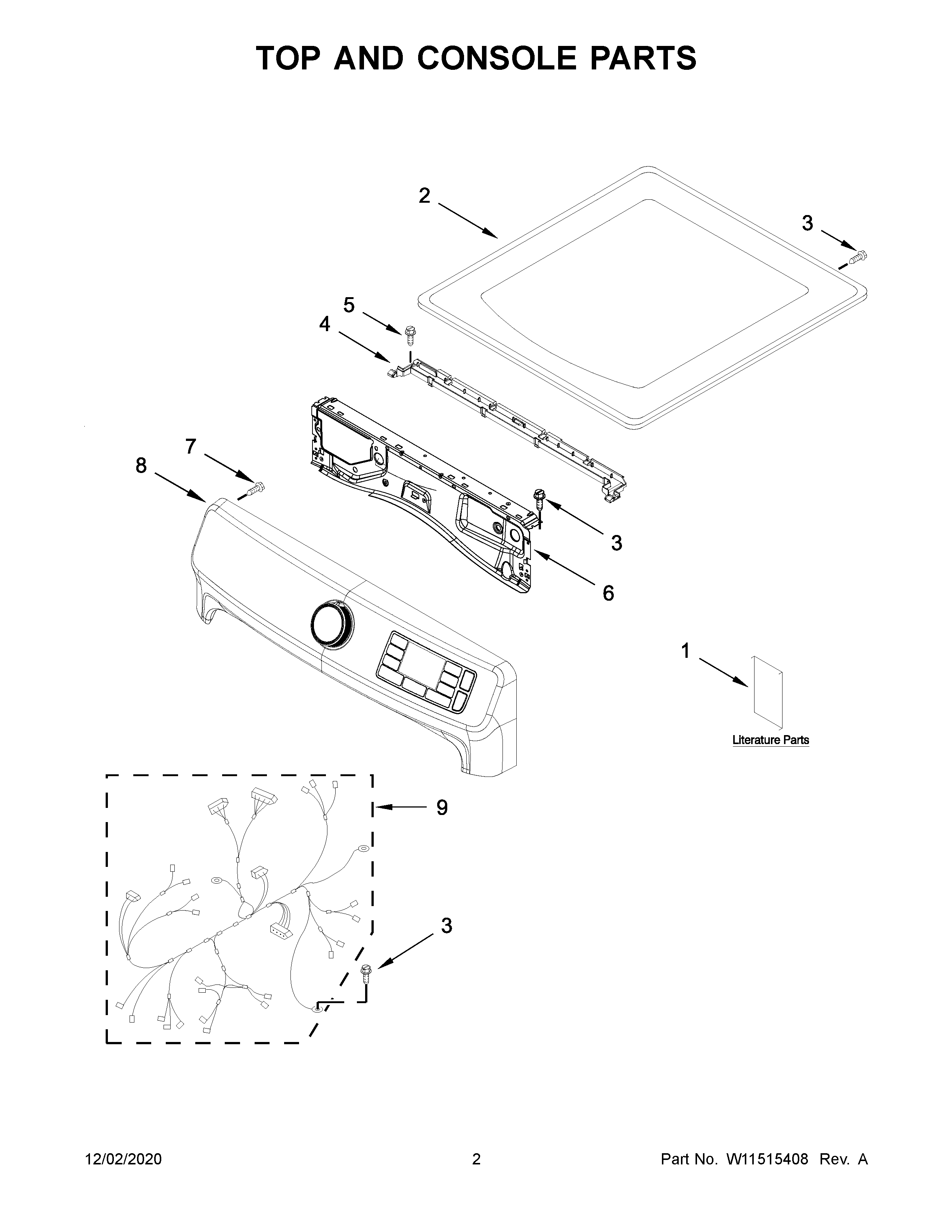

8TMGD6630HW1 02 – TOP AND CONSOLE PARTS

8TMGD6630HW1 02 – TOP AND CONSOLE PARTS

Written by

in

8TMGD6630HW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1CWIRING DIAGRAM
1BTECH SHEET
1DQUICK START GUIDE
2WPW10208383 Whirlpool Top Panel
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7WP8533993 Whirlpool Refrigerator Screw
8ASSEMBLY, CONSOLE
9W11157861 Whirlpool Wire Harness
