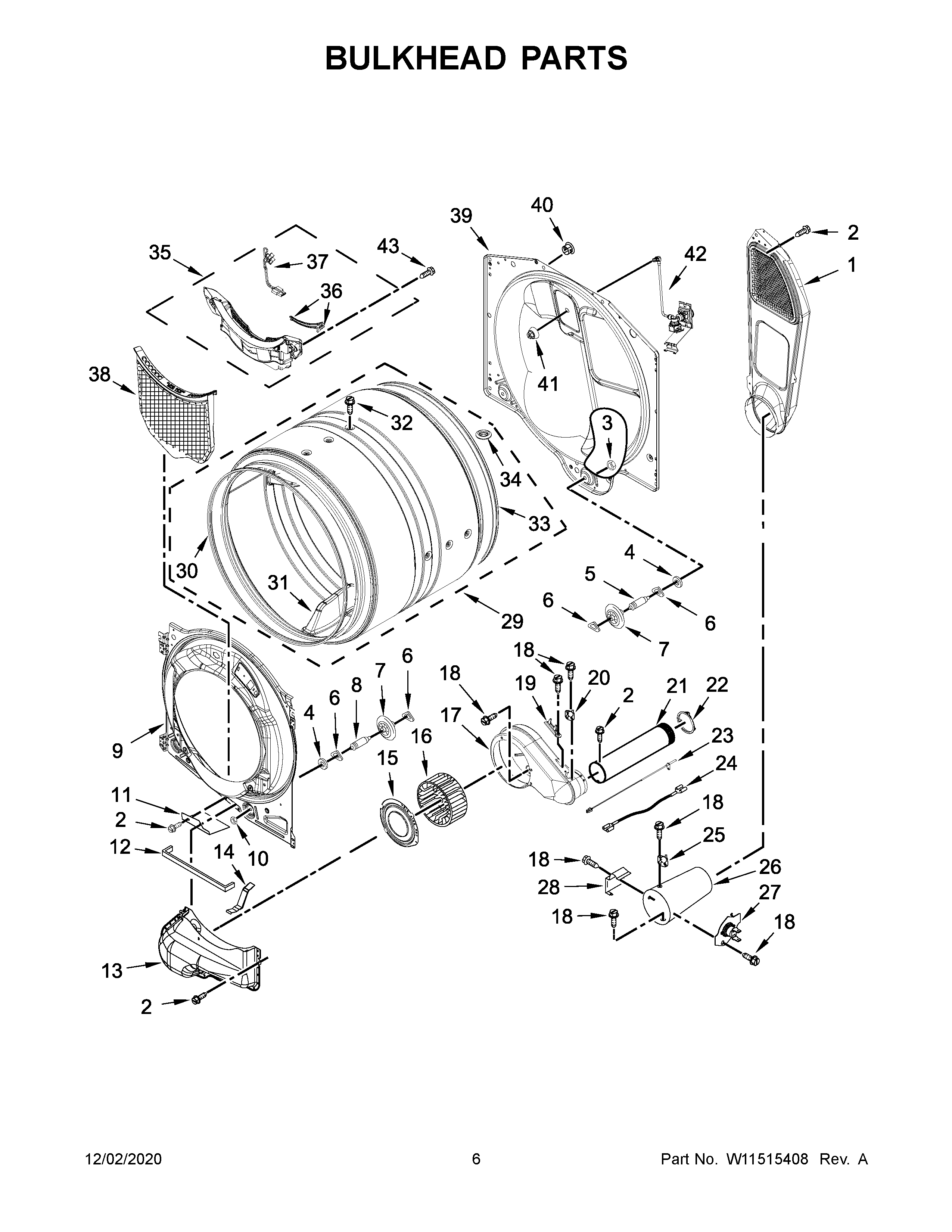

8TMGD6630HW1 04 – BULKHEAD PARTS

8TMGD6630HW1 04 – BULKHEAD PARTS

Written by

in

8TMGD6630HW1 04 – BULKHEAD PARTS

Products

PositionProduct
1WPW10293765 Whirlpool Air Duct
2WP488729 Whirlpool Refrigerator Door Screw
3WPW10080190 Whirlpool Nut
4W11236646 Whirlpool Washer Assembly
5SHAFT
6WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
7WPW10314173 Whirlpool Dryer Drum Support Wheel
8SHAFT
9W11712678 Whirlpool Bulkhead Assembly
10WPW10080210 Whirlpool Nut
11W11257251 Whirlpool Shield
12W11676493 Whirlpool Seal Assembly
13WPW10211896 Whirlpool Duct Lint
14W10414388 Whirlpool Clip
15W11688571 Whirlpool Collar
16WP697772 Whirlpool Dryer Blower Wheel
17WPW10211911 Whirlpool Housing
18WP693995 Whirlpool Screw
19FUSE-THRML
20WP8577274 Whirlpool Dryer Thermistor
21WPW10342188 Whirlpool Exhaust Pipe
22WPW10344699 Whirlpool Collar
23W11396709 Whirlpool Gas Inlet Thermostat
24W11316625 Whirlpool Wire Harness
25THRMST-FIX
26WP8573824 Whirlpool Funnel
27WP8573713 Whirlpool Thermal Fuse
28WP338906 Whirlpool Dryer Gas Sensor
29W10381481 Whirlpool Drum Assembly
30W11193479 Whirlpool Seal
31W10416098 Whirlpool Baffle Assembly
32W10853898 Whirlpool Screw
33280114 Whirlpool Dryer Drum Seal
34W10665050 Whirlpool Plug
35HOUSNG-DRYER LINT
36WP3387223 Whirlpool Electrode Assembly
37WPW10298258 Whirlpool Wire Harness
38SCREEN – LINT. ALPHA W/FELT
39W11299321 Whirlpool Bulkhead
408529007 Whirlpool Plug
41W11230609 Whirlpool Nozzle
42W11216837 Whirlpool Valve
43WP3387230 Whirlpool Screw
