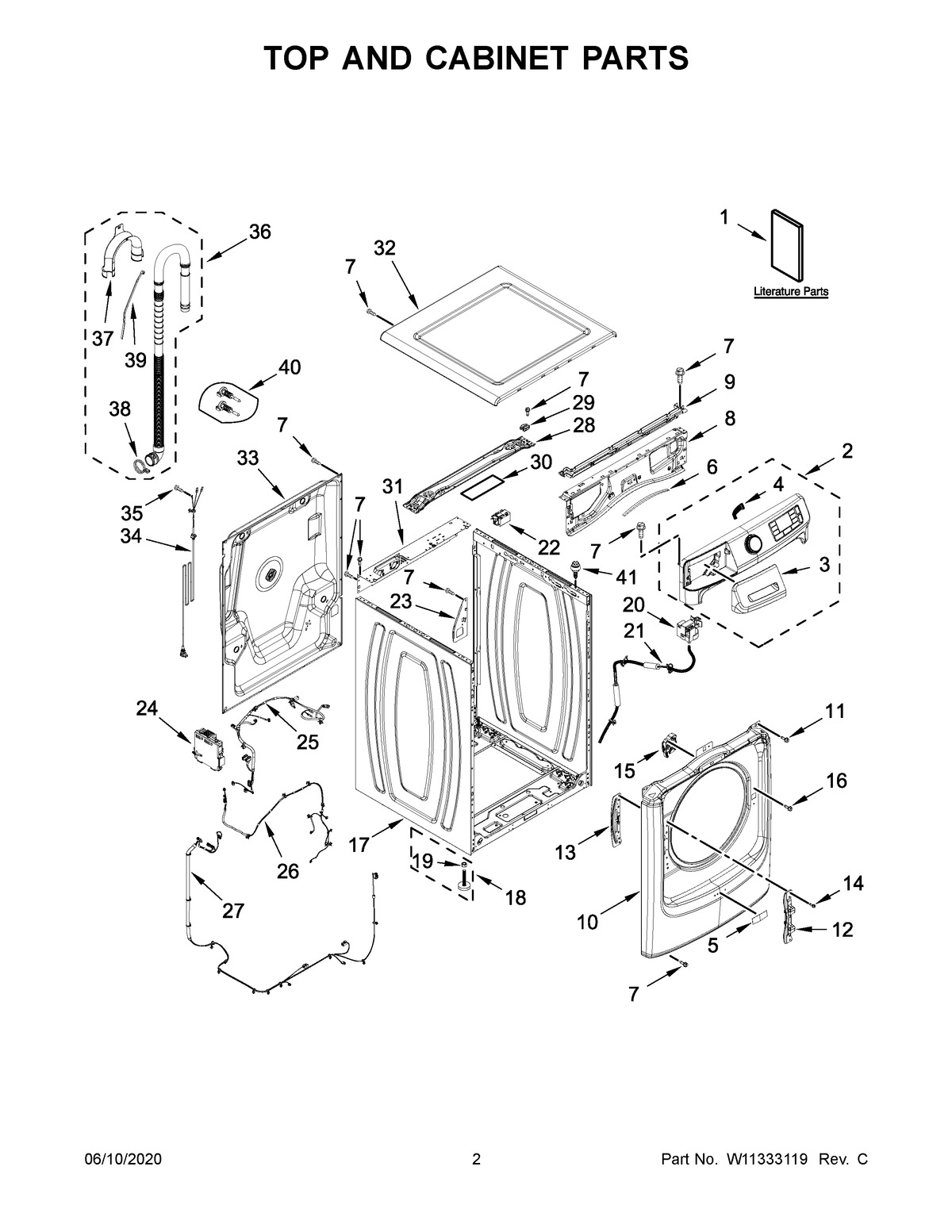

8TMHW6630HW0 02 – TOP AND CABINET PARTSadmin2025-04-26T09:25:36+00:008TMHW6630HW0 02 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1 | USE AND CARE GUIDE |
| 1C | TECH SHEET |
| 1B | QUICK START GUIDE |
| 1A | INSTALLATION INSTRUCTIONS |
| 2 | ASSEMBLY, CONSOLE (WHITE) |
| 3 | HANDLE, DRAWER (WHITE) |
| 4 | MAY W10920818 |
| 5 | BADGE, MAYTAG |
| 6 | EDGE GUARD |
| 7 | MAY W10567155 |
| 8 | BRACKET, CONSOLE |
| 9 | CHANNEL, WATER |
| 10 | PANEL, FRONT (WHITE) |
| 11 | SCREW |
| 12 | HINGE BASE |
| 13 | BRACKET, HINGE |
| 14 | MAY W10288126 |
| 15 | LOCK, DOOR |
| 16 | SCREW |
| 17 | CABINET (WHITE) |
| 18 | LEVELING LEG ASSEMBLY |
| 19 | Nut, 3/8-16 |
| 20 | PRESSURE SWITCH |
| 21 | HOSE, PRESSURE SWITCH |
| 22 | RFI FILTER |
| 23 | BRACKET, DRAIN HOSE |
| 24 | APPLIANCE CONTROL UNIT (ACU) |
| 25 | HARNESS, UPPER |
| 26 | HARNESS, NTC |
| 27 | HARNESS, MAIN LOWER |
| 28 | BRACE, TOP |
| 29 | RETAINER, SPRING |
| 30 | FOAM PAD |
| 31 | BRACKET, REAR |
| 32 | TOP (WHITE) |
| 33 | PANEL, REAR |
| 34 | CORD, POWER |
| 35 | SCREW |
| 36 | HOSE, DRAIN (EXTERNAL) |
| 37 | MAY W10280024 |
| 38 | MAY 356138 |
| 39 | MAY W10267532 |
| 40 | BOLT, TRANSPORT (SHORT) |
| 41 | SCREW AND BUSHING ASSEMBLY |
