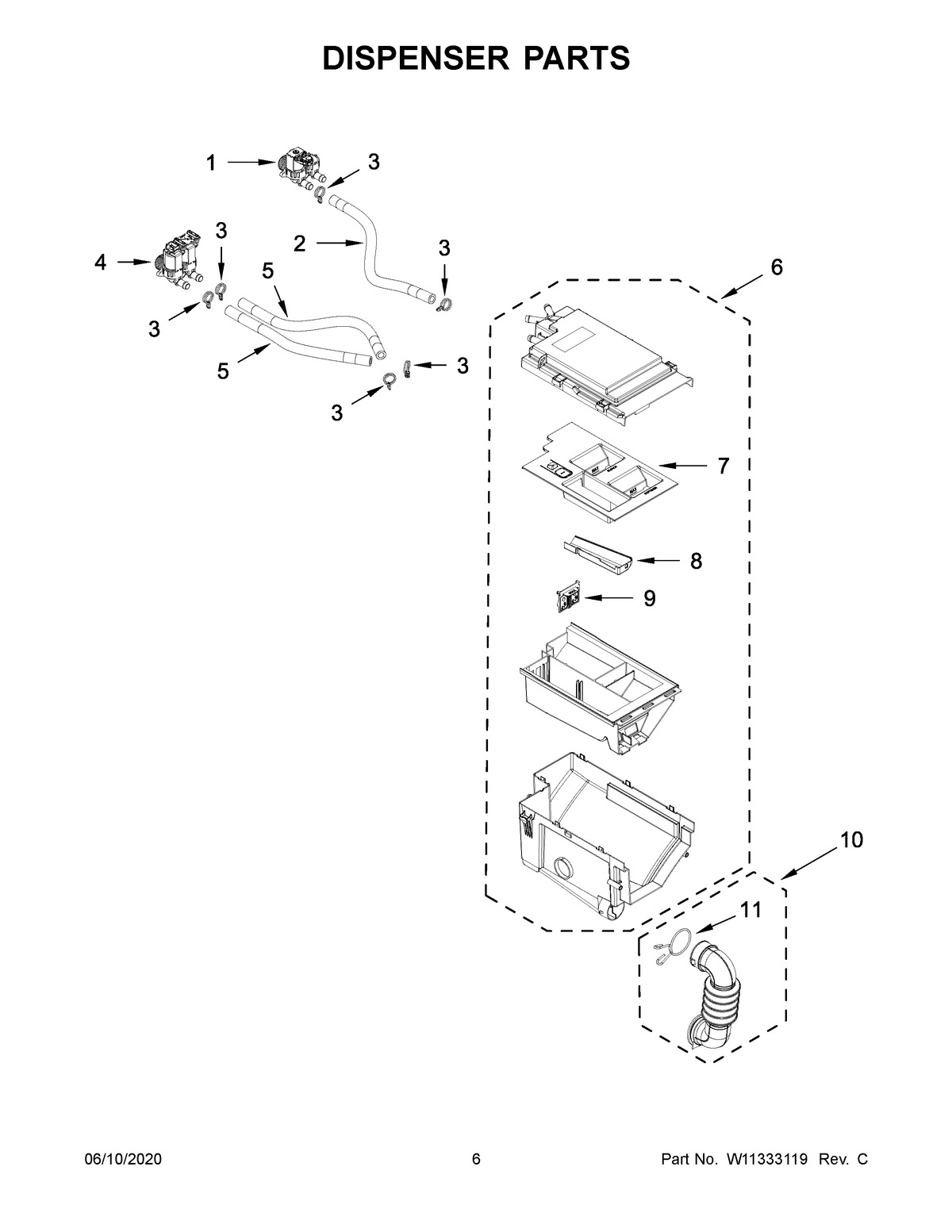

8TMHW6630HW0 04 – DISPENSER PARTS

Products

Position	Product
1	VALVE, INLET (SINGLE)
2	HOSE, INLET (HOT)
3	MAY W10096851
4	VALVE, INLET (DOUBLE)
5	HOSE, INLET (COLD)
6	ASSEMBLY, DISPENSER
7	SIPHON, BLEACH/SOFTENER
8	COVER, DETERGENT DRAWER
9	SEPARATOR, SIPHON
10	ASSEMBLY, DISPENSER HOSE
11	CLAMP, HOSE
