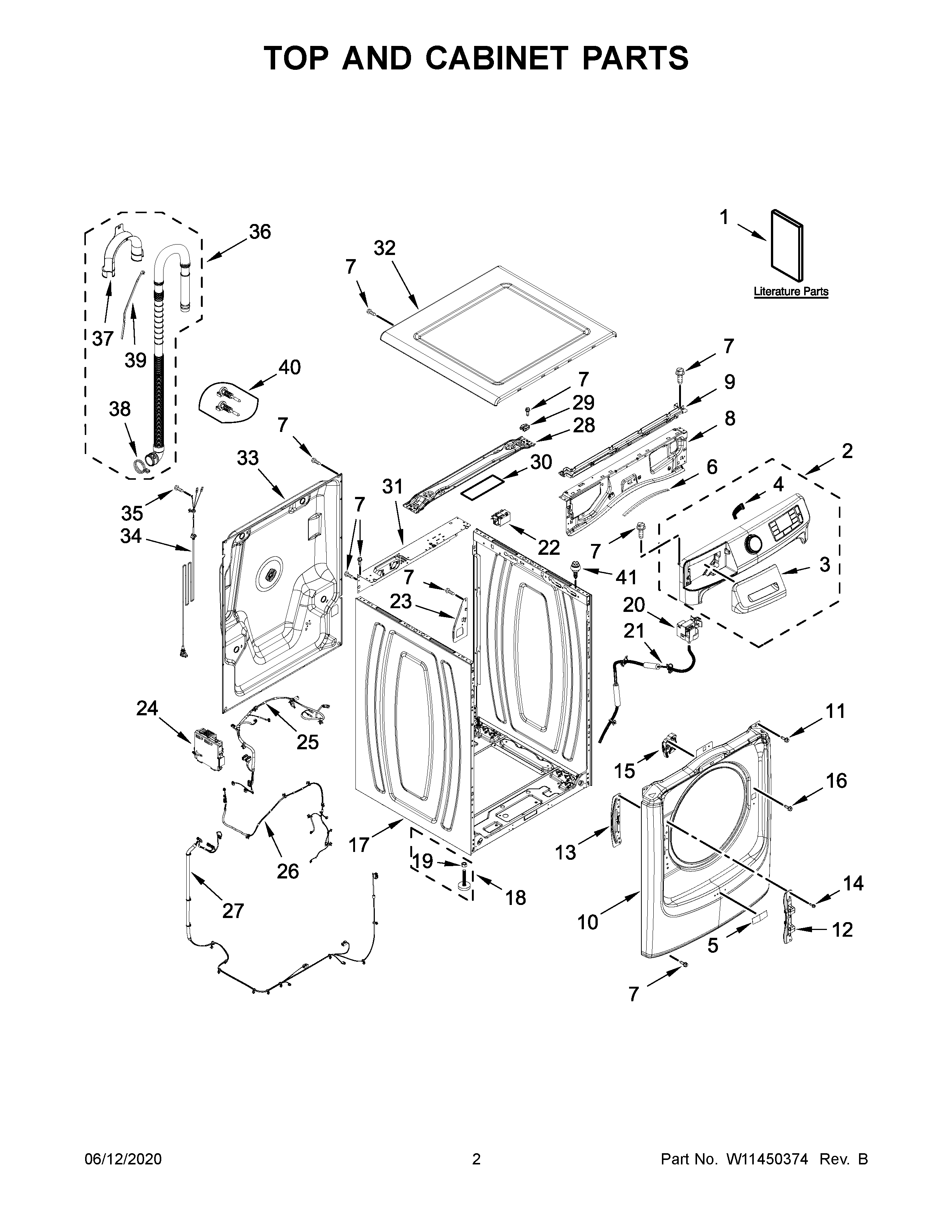

8TMHW6630HW1 02 – TOP AND CABINET PARTS

8TMHW6630HW1 02 – TOP AND CABINET PARTS

Written by

in

8TMHW6630HW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1C	TECH SHEET
1B	QUICK START GUIDE
1A	INSTALLATION INSTRUCTIONS
2	ASSEMBLY, CONSOLE (WHITE)
3	HANDLE, DRAWER (WHITE)
4	MAY W10920818
5	BADGE, MAYTAG
6	EDGE GUARD
7	MAY W10567155
8	BRACKET, CONSOLE
9	CHANNEL, WATER
10	PANEL, FRONT (WHITE)
11	SCREW
12	HINGE BASE
13	BRACKET, HINGE
14	MAY W10288126
15	LOCK, DOOR
16	SCREW
17	CABINET (WHITE)
18	LEVELING LEG ASSEMBLY
19	Nut, 3/8-16
20	PRESSURE SWITCH
21	HOSE, PRESSURE SWITCH
22	RFI FILTER
23	BRACKET, DRAIN HOSE
24	MAY W11466229
25	HARNESS, UPPER
26	HARNESS, NTC
27	HARNESS, MAIN LOWER
28	BRACE, TOP
29	RETAINER, SPRING
30	FOAM PAD
31	BRACKET, REAR
32	TOP (WHITE)
33	PANEL, REAR
34	CORD, POWER
35	SCREW
36	HOSE, DRAIN (EXTERNAL)
37	MAY W10280024
38	MAY 356138
39	MAY W10267532
40	BOLT, TRANSPORT (SHORT)
41	SCREW AND BUSHING ASSEMBLY
