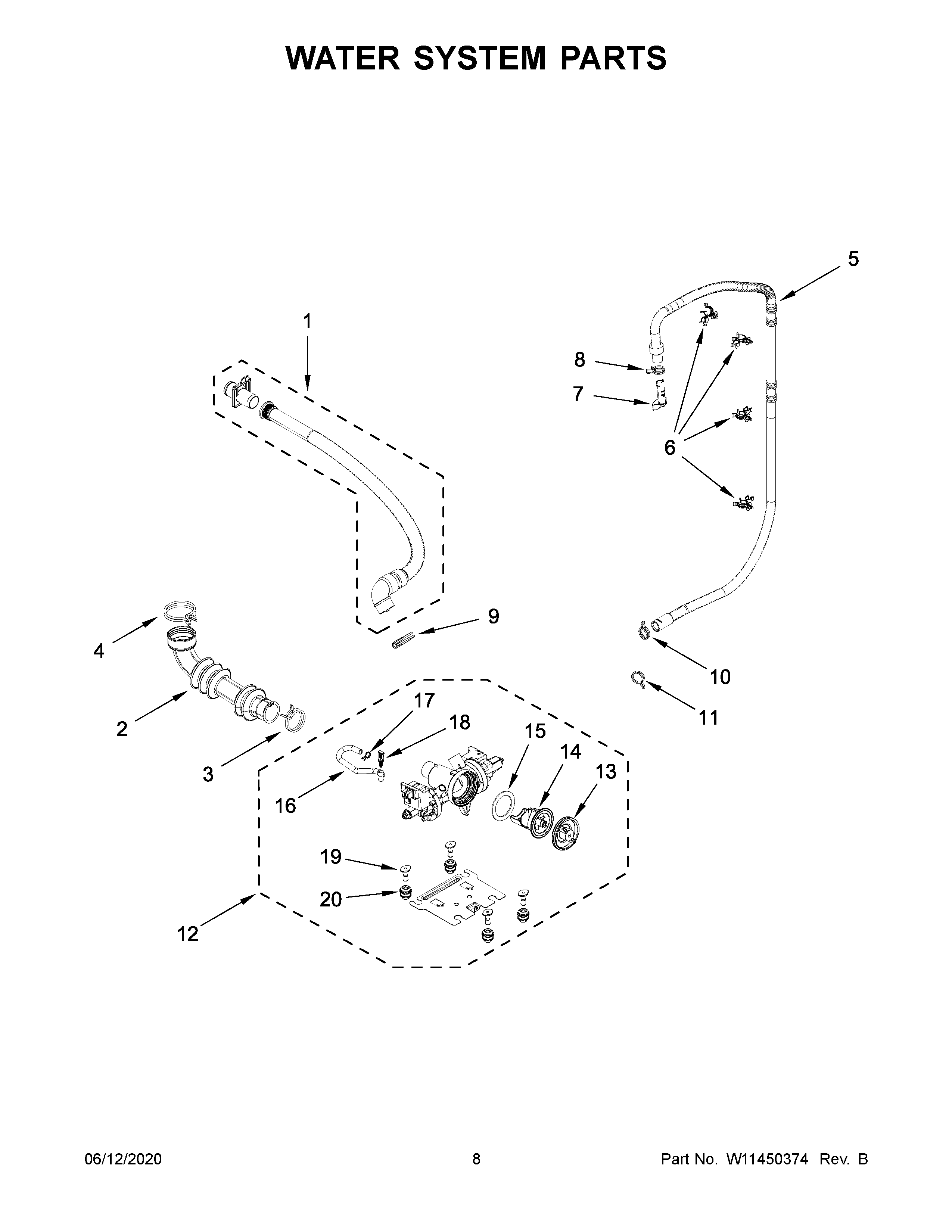

8TMHW6630HW1 05 – WATER SYSTEM PARTS

8TMHW6630HW1 05 – WATER SYSTEM PARTS

Written by

in

8TMHW6630HW1 05 – WATER SYSTEM PARTS

Products

Position	Product
1	ASSEMBLY, DRAIN HOSE
2	HOSE, TUB TO PUMP
3	MAY 370448
4	CLAMP, VENT HOSE
5	HOSE, PUMP TO BELLOW
6	CLIP, HOSE
7	NOZZLE, WATER
8	MAY 371503
9	MAY 356138
10	CLAMP, HOSE
11	CLAMP, HOSE
12	ASSEMBLY, PUMP
13	CAP, FILTER
14	FILTER, PUMP
15	SEAL, FILTER CAP
16	HOSE, DRAIN (PUMP)
17	CLAMP, HOSE
18	PLUG, DRAIN (PUMP)
19	GROMMET, PIN (PUMP)
20	GROMMET (PUMP)
