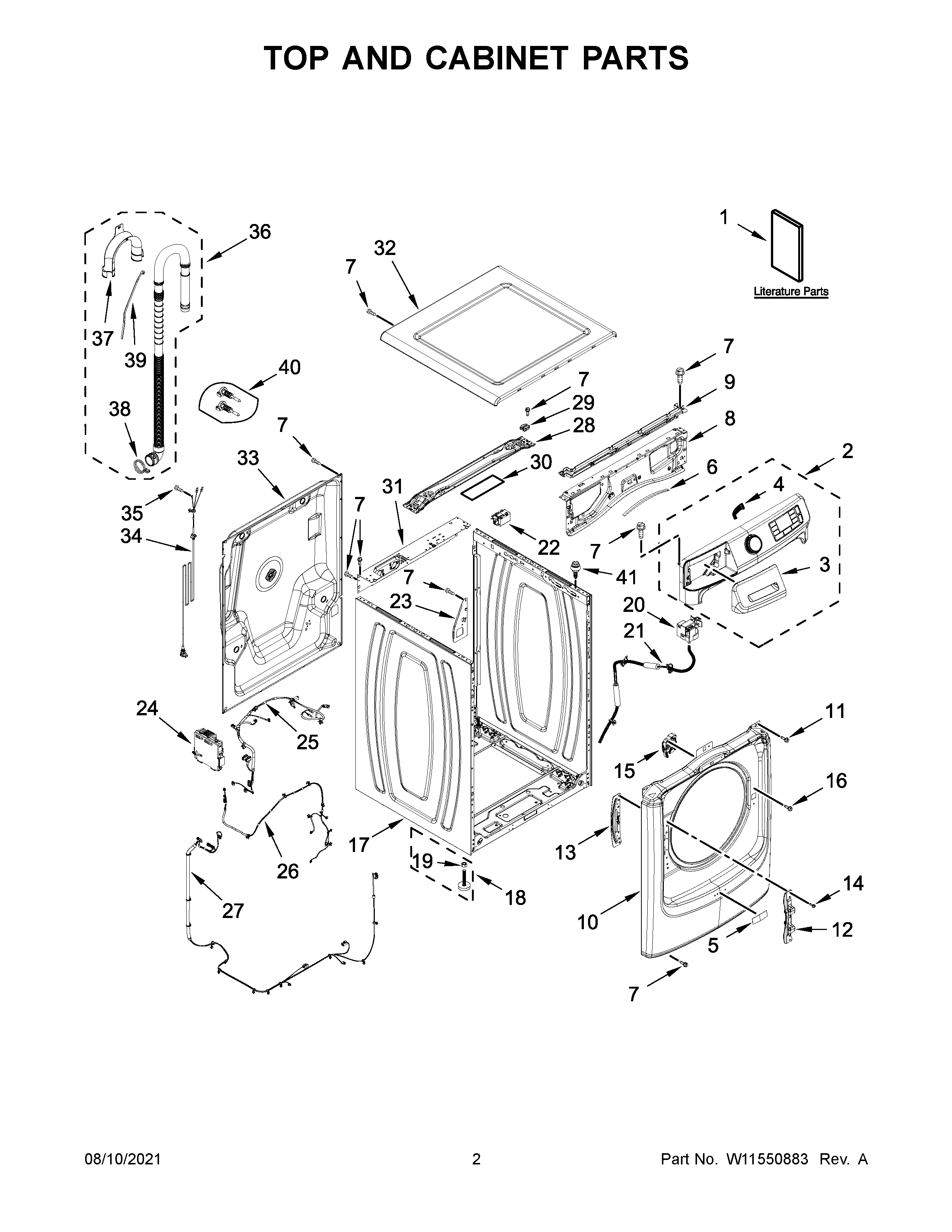

8TMHW6630HW2 02 – TOP AND CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
1B	QUICK START GUIDE
2	W11458339-includeCORE Whirlpool W11458339 Washer Electronic Control Board + Core
3	W11316627 Whirlpool Handle
4	W11316625 Whirlpool Wire Harness
5	W10908007 Whirlpool Medallion
6	W11316770 Whirlpool Protector
7	W11568617 Whirlpool Screw
8	W11314678 Whirlpool Bracket Assembly
9	W11458348 Whirlpool Channel
10	W11316249 Whirlpool Panel
11	W11573574 Whirlpool Screw
12	HINGE
13	W10299097 Whirlpool Bracket Assembly
14	SCREW
15	W11458150 Whirlpool Latch Assembly
16	W10306501 Whirlpool Screw
17	W11352995 Whirlpool Cabinet Assembly
18	W10888529 Whirlpool Washer Leveling Leg
19	WP3359452 Whirlpool Nut
20	SWITCH-WL
21	W11456953 Whirlpool Hose
22	W11470209 Whirlpool Filter Assembly
23	W11316769 Whirlpool Bracket
24	W11550672-includeCORE Whirlpool W11550672 Washer Electronic Control Board + Core
25	HARNESS, UPPER
26	HARNESS, NTC
27	HARNESS, MAIN LOWER
28	W10467484 Whirlpool Bracket
29	W10245452 Whirlpool Retainer
30	FOAM PAD
31	W11353016 Whirlpool Bracket
32	WPW10208373 Whirlpool Top
33	W11315708 Whirlpool Panel
34	W11235953 Whirlpool Power Cord
35	W10850756 Whirlpool Screw
36	W11551765 Whirlpool Hose
37	WPW10280024 Whirlpool Retainer
38	WP356138 Whirlpool Hose Clamp
39	WPW10339879 Whirlpool Wire Tie
40	W11316629 Whirlpool Bolt
41	W10208380 Whirlpool Screw
