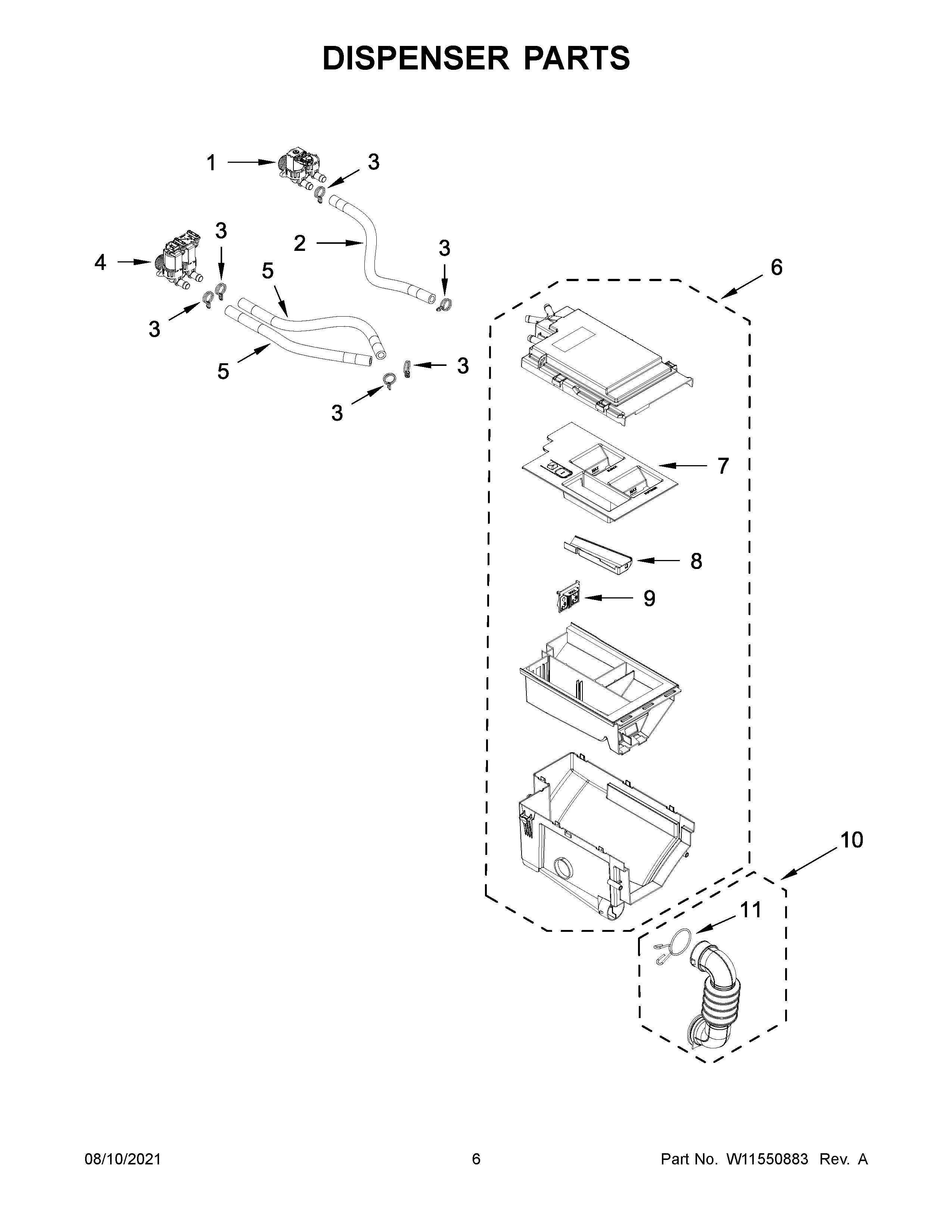

8TMHW6630HW2 04 – DISPENSER PARTS

Products

PositionProduct
1W11458152 Whirlpool Valve
2HOSE
3WP596669 Whirlpool Hose Clamp
4W11458153 Whirlpool Valve
5HOSE
6DRAWER
7W11316601 Whirlpool Microwave Dispenser
8W11316375 Whirlpool Cover Assembly
9W11316603 Whirlpool Divider Assembly
10W11316604 Whirlpool Hose
11W10239910 Whirlpool Clamp
