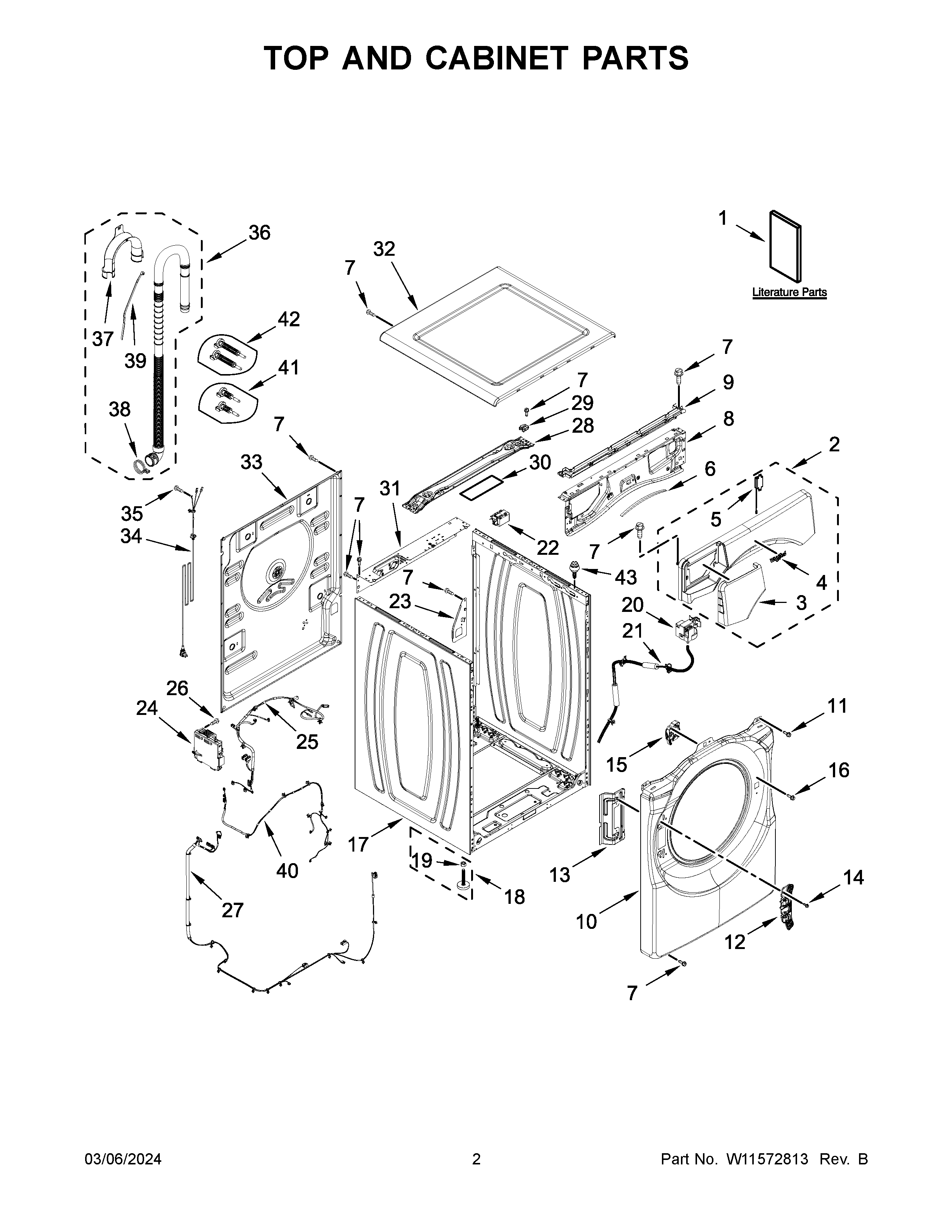

8TWFC6810LW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	QUICK START GUIDE
1	OWNERS MANUAL
1B	WIRING DIAGRAM
2	ASSEMBLY, CONSOLE (WHITE)
3	W11318818 Whirlpool Handle
4	W11223753 Whirlpool Refrigerator Nameplate
5	W11123146 Whirlpool Speaker
6	W11316770 Whirlpool Protector
7	W11568617 Whirlpool Screw
8	W11314678 Whirlpool Bracket Assembly
9	W11458348 Whirlpool Channel
10	W11318809 Whirlpool Panel
11	W11573574 Whirlpool Screw
12	HINGE ASSEMBLY
13	W11310030 Whirlpool Bracket Assembly
14	SCREW
15	W11458150 Whirlpool Latch Assembly
16	W10306501 Whirlpool Screw
17	W11352995 Whirlpool Cabinet Assembly
18	FOOT
19	WP3359452 Whirlpool Nut
20	SWITCH-WL
21	W11456953 Whirlpool Hose
22	W11470209 Whirlpool Filter Assembly
23	W11316769 Whirlpool Bracket
24	APPLIANCE CONTROL UNIT (ACU)
25	HARNESS, UPPER
26	SCREW
27	HARNESS, MAIN LOWER
28	W10467484 Whirlpool Bracket
29	W10245452 Whirlpool Retainer
30	FOAM PAD
31	W11353016 Whirlpool Bracket
32	WPW10208373 Whirlpool Top
33	W11491750 Whirlpool Panel
34	CORD, POWER
35	W10846509 Whirlpool Screw
36	W11551765 Whirlpool Hose
37	WPW10280024 Whirlpool Retainer
38	WP356138 Whirlpool Hose Clamp
39	WPW10339879 Whirlpool Wire Tie
40	HARNESS, NTC
41	W11316629 Whirlpool Bolt
42	W11316631 Whirlpool Bolt Fastener
43	W10208380 Whirlpool Screw
