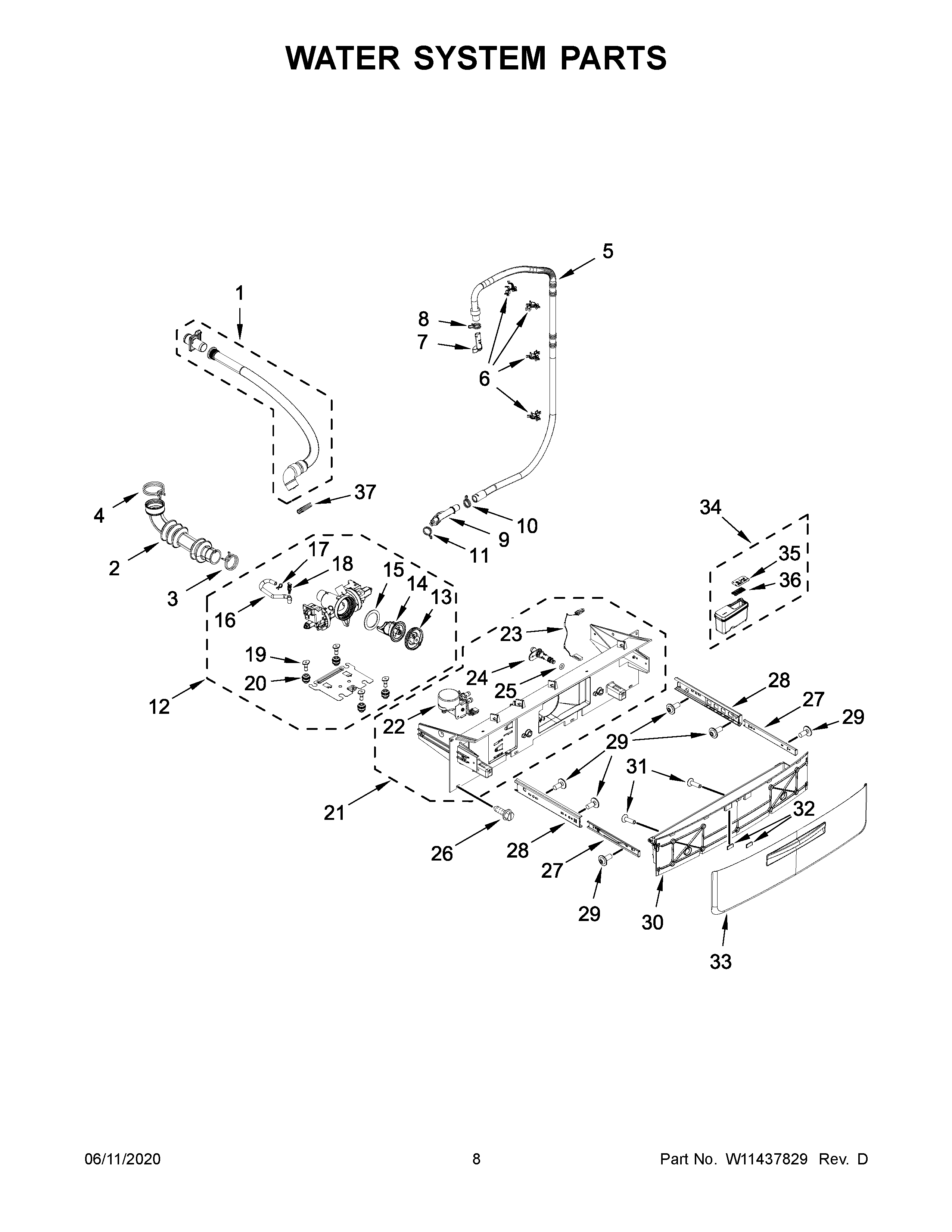

8TWFW5620HW0 05 – WATER SYSTEM PARTS

Products

Position	Product
1	HOSE
2	W11314666 Whirlpool Hose Assembly
3	WP616099 Whirlpool Clamp
4	W10273034 Whirlpool Clamp
5	W11318802 Whirlpool Hose
6	W11316608 Whirlpool Clip Assembly
7	W11316251 Whirlpool Injector Tube
8	WP596669 Whirlpool Hose Clamp
9	W11318805 Whirlpool Hose
10	W11316607 Whirlpool Clamp Assembly
12	W11458345 Whirlpool Water Pump
13	W11316610 Whirlpool Cap Assembly
14	W11458347 Whirlpool Filter
15	W11316613 Whirlpool Seal Assembly
16	W11316662 Whirlpool Hose
17	W11316666 Whirlpool Clamp
18	W11316669 Whirlpool Plug Assembly
19	W11316664 Whirlpool Pin
20	W11316663 Whirlpool Grommet Assembly
21	W11321036 Whirlpool Dispenser
22	W11318806 Whirlpool Pump Motor
23	W11195379 Whirlpool Sensor Switch Assembly
24	W11106544 Whirlpool Tube
25	W11628814 Whirlpool O-Ring Sealing
26	W11568617 Whirlpool Screw
27	W11551370 Whirlpool Slide
28	W11321012 Whirlpool Dispenser
29	W11230114 Whirlpool Screw Assembly
30	W11318828 Whirlpool Frame
31	SCREW
32	W11320962 Whirlpool Magnet
33	W11318826 Whirlpool Front Panel
34	W11568953 Whirlpool Tank Assembly
35	W11318832 Whirlpool Lid
36	W11320963 Whirlpool Insert
37	WP356138 Whirlpool Hose Clamp
