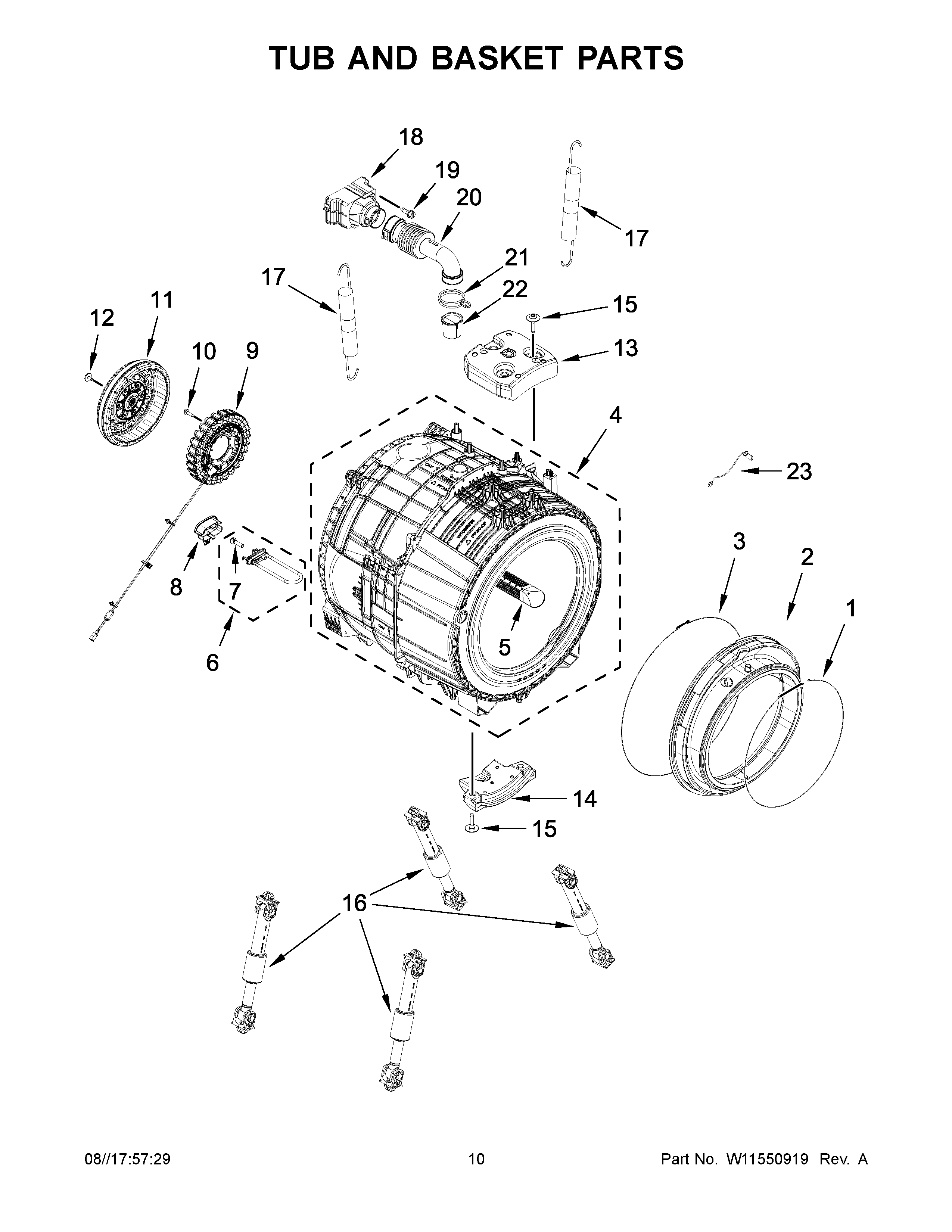

8TWFW8620HW2 06 – TUB AND BASKET PARTS

8TWFW8620HW2 06 – TUB AND BASKET PARTS

Written by

in

8TWFW8620HW2 06 – TUB AND BASKET PARTS

Products

PositionProduct
1CLAMP
2W11384425 Whirlpool Bellow
3W11314649 Whirlpool Clamp
4W11378552 Whirlpool Outer Tub
5W11460395 Whirlpool Baffle
6ASSEMBLY, HEATER
7W11314664 Whirlpool Heater
8W11314776 Whirlpool Appliance Cover
9W11354542 Whirlpool Stator
10W11314661 Whirlpool Screw
11W11314361 Whirlpool Rotor Assembly
12W11557803 Whirlpool Screw
13W11316052 Whirlpool Counterweight
14W11481720 Whirlpool Counterweight Assembly
15W11314651 Whirlpool Screw
16SHOCK-ABSR (1 EA)
17SPRING
18FAN
19W11230114 Whirlpool Screw Assembly
20W11316274 Whirlpool Hose
21WP371502 Whirlpool Clamp
22W11557921 Whirlpool Vent Coupling
23W11315707 Whirlpool Light
