8TWGD5010PW0 02 – TOP AND CONSOLE PARTS
Written by
in

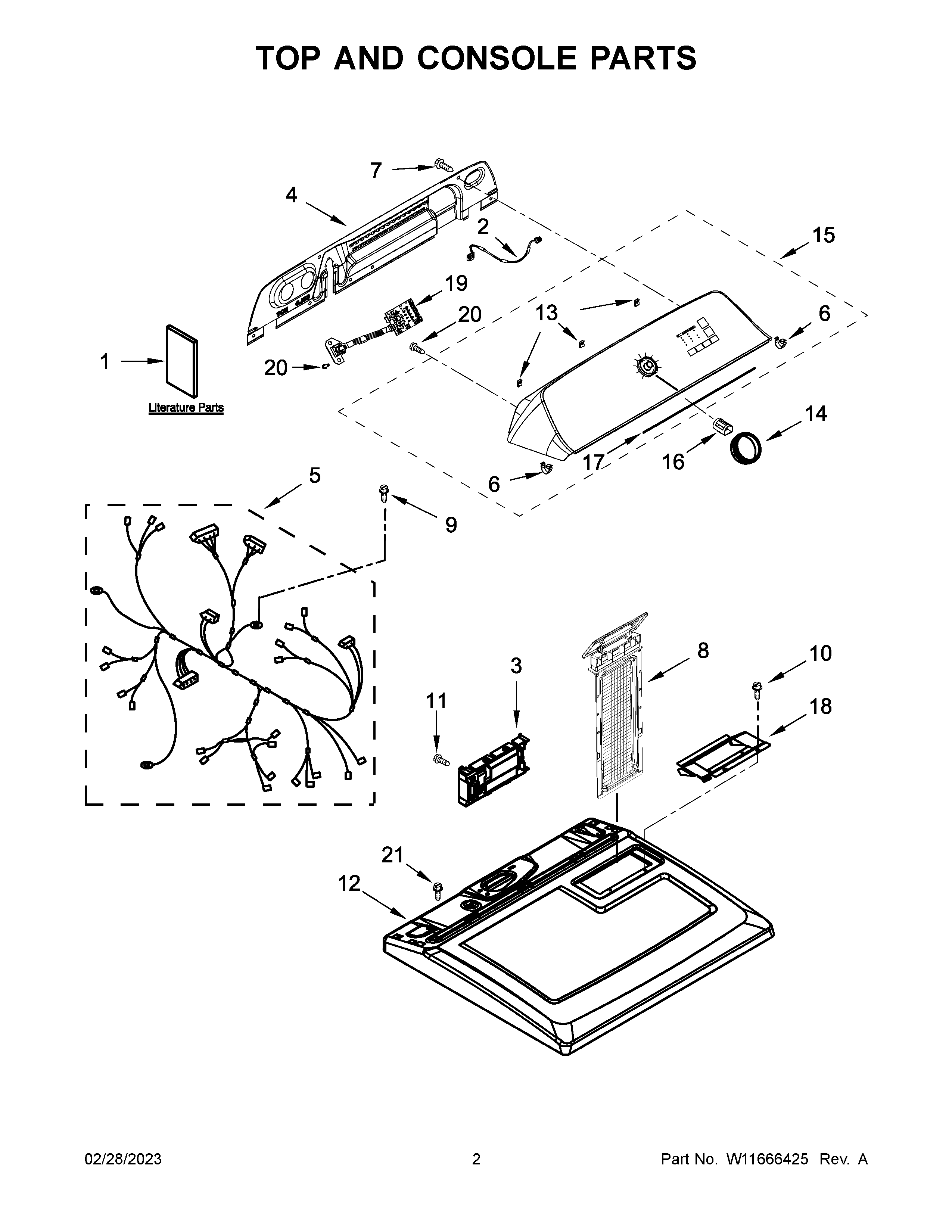

8TWGD5010PW0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1A
TECH SHEET
1
OWNERS MANUAL
1B
QUICK START GUIDE
2
HARNS-WIRE
3
W11728015-includeCORE Whirlpool W11728015 Washer Electronic Control + Core
4
W10775189 Whirlpool Rear Panel
5
HARNESS, MAIN
6
WP8312709 Whirlpool Endcap Clip
7
WP693995 Whirlpool Screw
8
SCREEN
9
W10850756 Whirlpool Screw
10
W11693756 Whirlpool Screw Assembly
11
WP90767 Whirlpool Screw
12
W11222514 Whirlpool Top Assembly
13
W11213336 Whirlpool Nut
14
W11662669 Whirlpool Dryer Knob
15
ASSEMBLY, CONSOLE (WHITE)
16
WP688805 Whirlpool Spring Clip
17
W11721376 Whirlpool Seal Assembly
18
W10662472 Whirlpool Cover Assembly
19
W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core
20
WP9740848 Whirlpool Dishwasher Screw
21
SCREW
←
