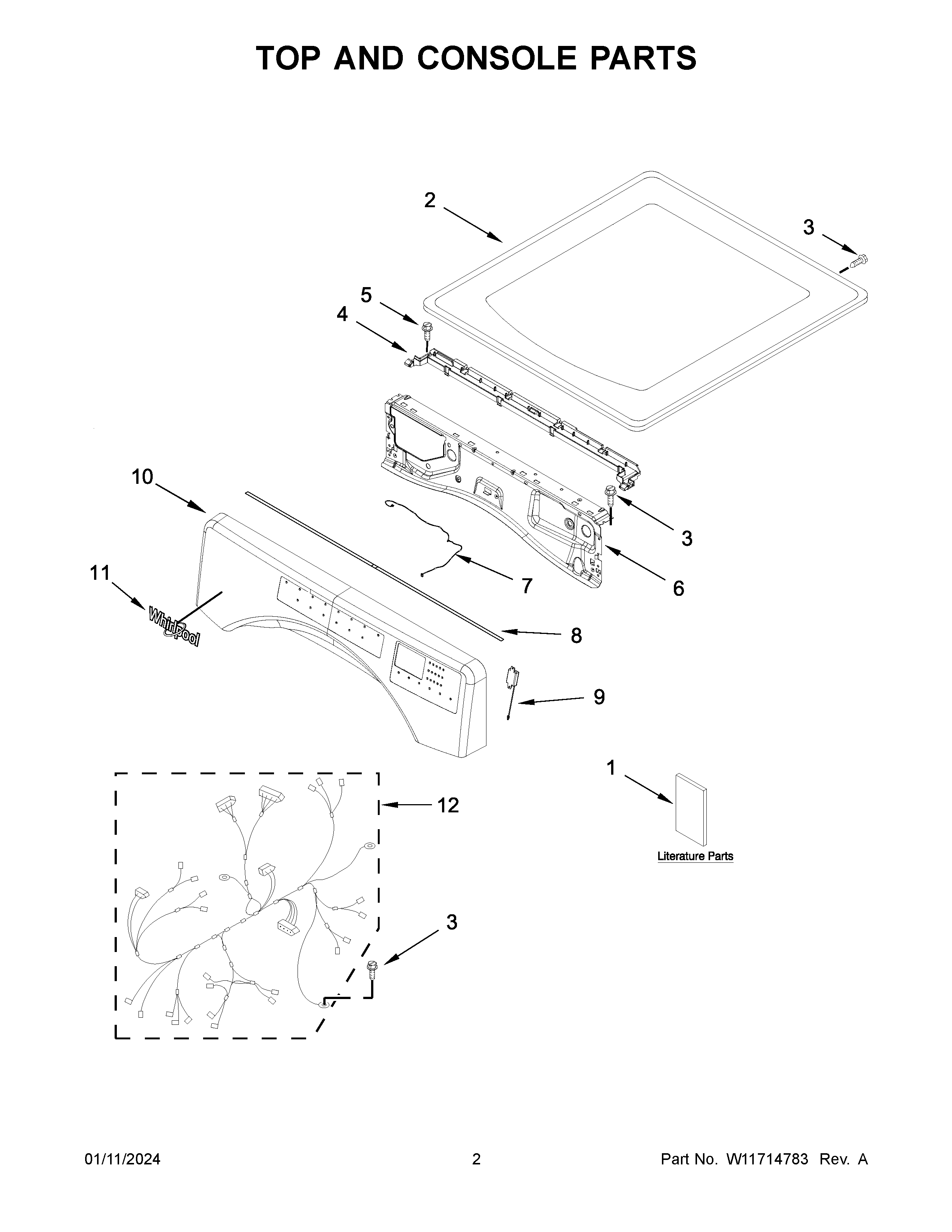

8TWGD5620HW2 02 – TOP AND CONSOLE PARTS

8TWGD5620HW2 02 – TOP AND CONSOLE PARTS

Written by

in

8TWGD5620HW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1CWIRING DIAGRAM
1DQUICK START GUIDE
1USE AND CARE GUIDE
2WPW10208383 Whirlpool Top Panel
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11459337 Whirlpool Wire Harness
8SEAL
9W11123146 Whirlpool Speaker
10W11714842-includeCORE Whirlpool Console+Core
11W11223753 Whirlpool Refrigerator Nameplate
12W11157863 Whirlpool Wire Harness
