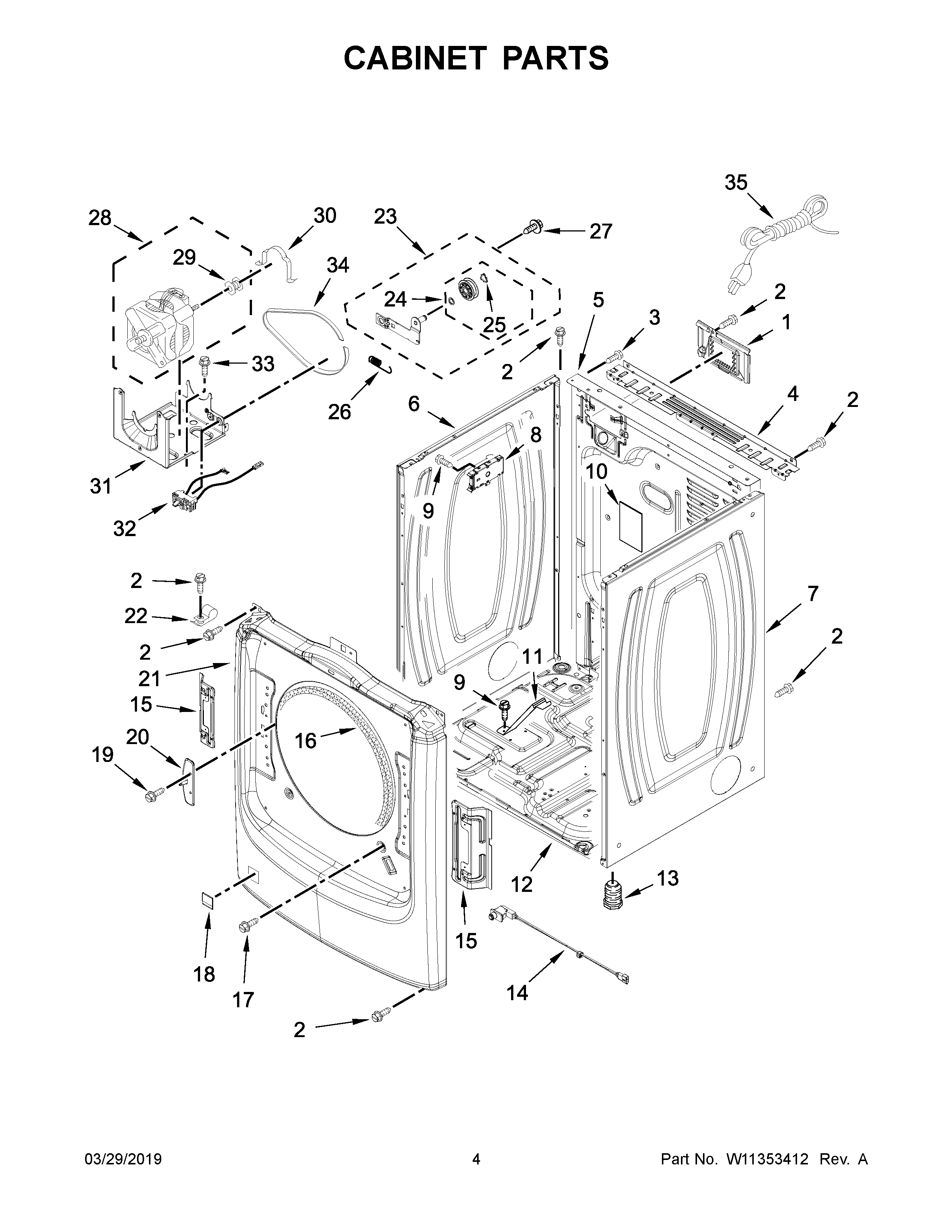

8TWGD6622HW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
1	W10819767 Whirlpool Cover
2	WP488729 Whirlpool Refrigerator Door Screw
3	W10850756 Whirlpool Screw
4	WPW10208382 Whirlpool Dryer Bracket
5	W10487430 Whirlpool Rear Panel
6	W11233548 Whirlpool Panel
7	W11310043 Whirlpool Panel
8	W11417010 Whirlpool Electronic Control Board + Core
9	WP693995 Whirlpool Screw
10	W11409002 Whirlpool Pad
11	W10181903 Whirlpool Bracket
12	W11215531 Whirlpool Base
14	W11427601 Whirlpool Door Switch
15	W11310030 Whirlpool Bracket Assembly
16	WP3387242 Whirlpool Seal
17	WP308685 Whirlpool Microwave Screw
18	W10811916 Whirlpool Plug
19	SCREW
20	W11310031 Whirlpool Strike Assembly
21	W11310029 Whirlpool Panel
22	3978776 Whirlpool Bracket
23	W10837240 Whirlpool Dryer Idler Pulley
24	279640 Whirlpool Dryer Idler Pulley Kit
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	WPW10446781 Whirlpool Spring
27	WP3389420 Whirlpool Screw
28	MOTOR-DRVE
29	WP8066184 Whirlpool Dryer Motor Pulley
30	CLAMP
31	W11481730 Whirlpool Bracket
32	W11662087 Whirlpool Dryer Switch
33	SCREW
34	661570V Whirlpool Dryer Drum Belt
35	W10869140 Whirlpool Power Cord
