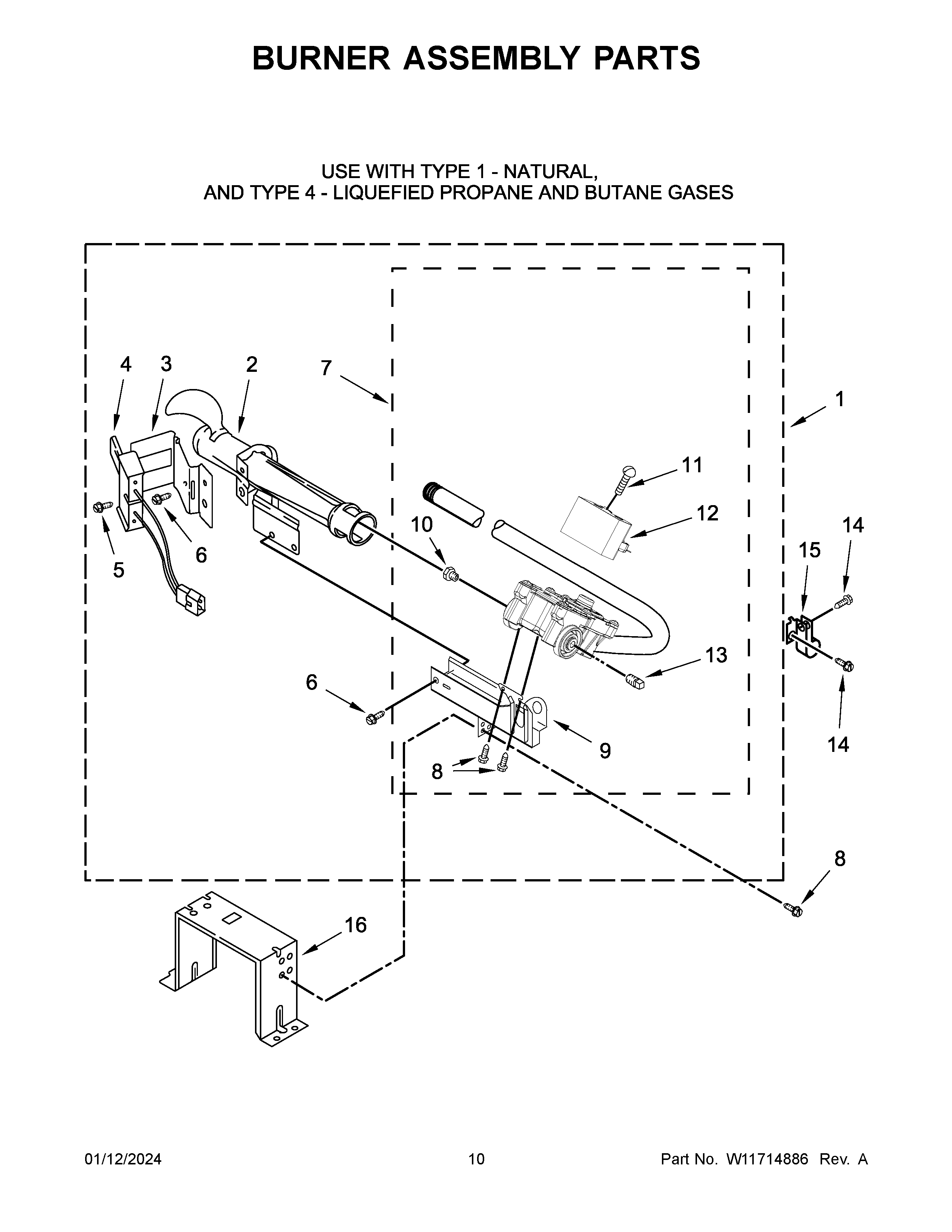

8TWGD6622HW2 06 – BURNER ASSEMBLY PARTS

8TWGD6622HW2 06 – BURNER ASSEMBLY PARTS

Written by

in

8TWGD6622HW2 06 – BURNER ASSEMBLY PARTS

Products

PositionProduct
NIW11581317 Whirlpool LP Gas Connector
NIFOLLOWING PARTS NOT ILLUSTRATED
1W11652258 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7W11646259 Whirlpool Gas Valve
8WP693995 Whirlpool Screw
9Base, Burner
10WP15418 Whirlpool Gas Orifice
11326049536 Whirlpool Screw
12WPW10328463 Whirlpool Valve Coil
13W10295523 Whirlpool Plug
14WP488729 Whirlpool Refrigerator Door Screw
153387561 Whirlpool Clamp
16Bracket, Support
