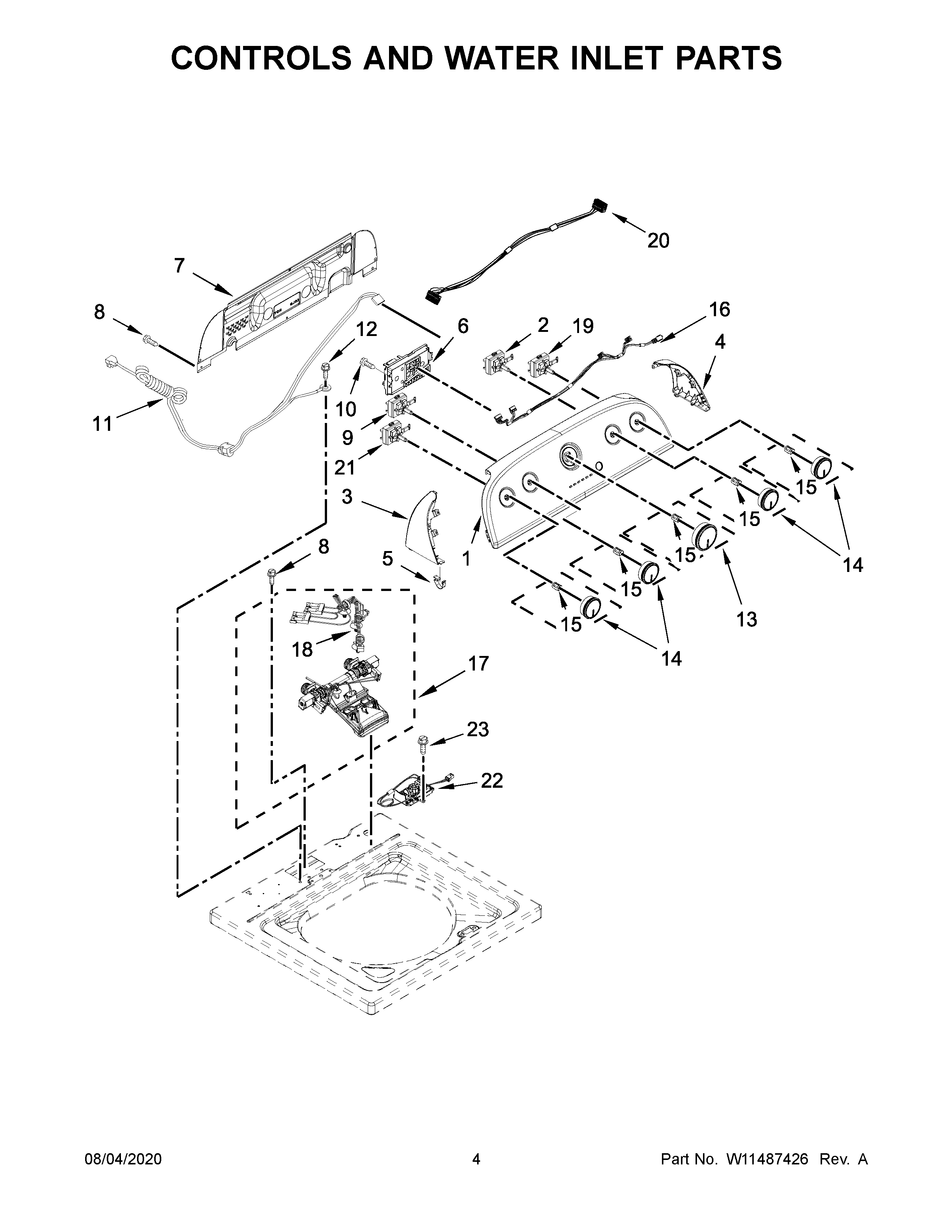

8TWTW4955JW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WPW10285512 Whirlpool Cycle Switch
3	END CAP (LEFT) (WHITE)
4	END CAP (RIGHT) (WHITE)
5	WP8312709 Whirlpool Endcap Clip
6	W11491467 Whirlpool Electronic Control Board + Core
7	W10552335 Whirlpool Rear Panel
8	W11685943 Whirlpool Screw
9	WPW10285518 Whirlpool Cycle Switch
10	WP90767 Whirlpool Screw
11	CORD, POWER
12	W10846509 Whirlpool Screw
13	W10756270 Whirlpool Dryer Timer Knob
15	WP688805 Whirlpool Spring Clip
16	W11211519 Whirlpool Wire Harness
17	VALVE-WATER INLET WASHER
18	W10868094 Whirlpool Wire Harness
19	WPW10285511 Whirlpool Cycle Switch
20	W10786100 Whirlpool Wire Harness
21	WPW10285517 Whirlpool Cycle Switch
22	ASSEMBLY, LINE FILTER
23	WP3400818 Whirlpool Screw
