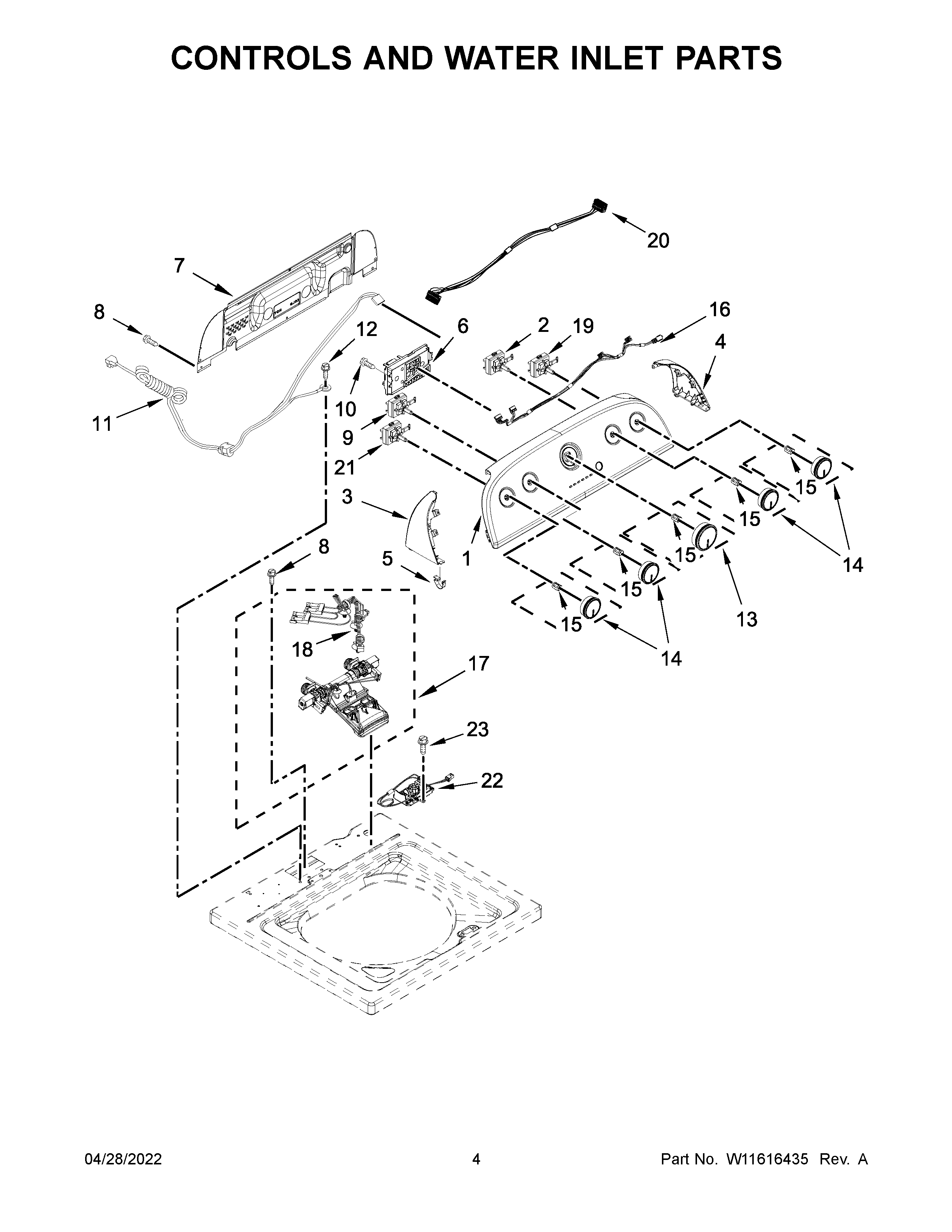

8TWTW4955JW1 03 – CONTROLS AND WATER INLET PARTS

8TWTW4955JW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

8TWTW4955JW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WPW10285512 Whirlpool Cycle Switch
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5WP8312709 Whirlpool Endcap Clip
6W11608062-includeCORE Whirlpool W11608062 Refrigerator Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10285518 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11CORD, POWER
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WP688805 Whirlpool Spring Clip
16W11211519 Whirlpool Wire Harness
17VALVE-WATER INLET WASHER
18W10868094 Whirlpool Wire Harness
19WPW10285511 Whirlpool Cycle Switch
20W10786100 Whirlpool Wire Harness
21WPW10285517 Whirlpool Cycle Switch
22ASSEMBLY, LINE FILTER
23WP3400818 Whirlpool Screw
