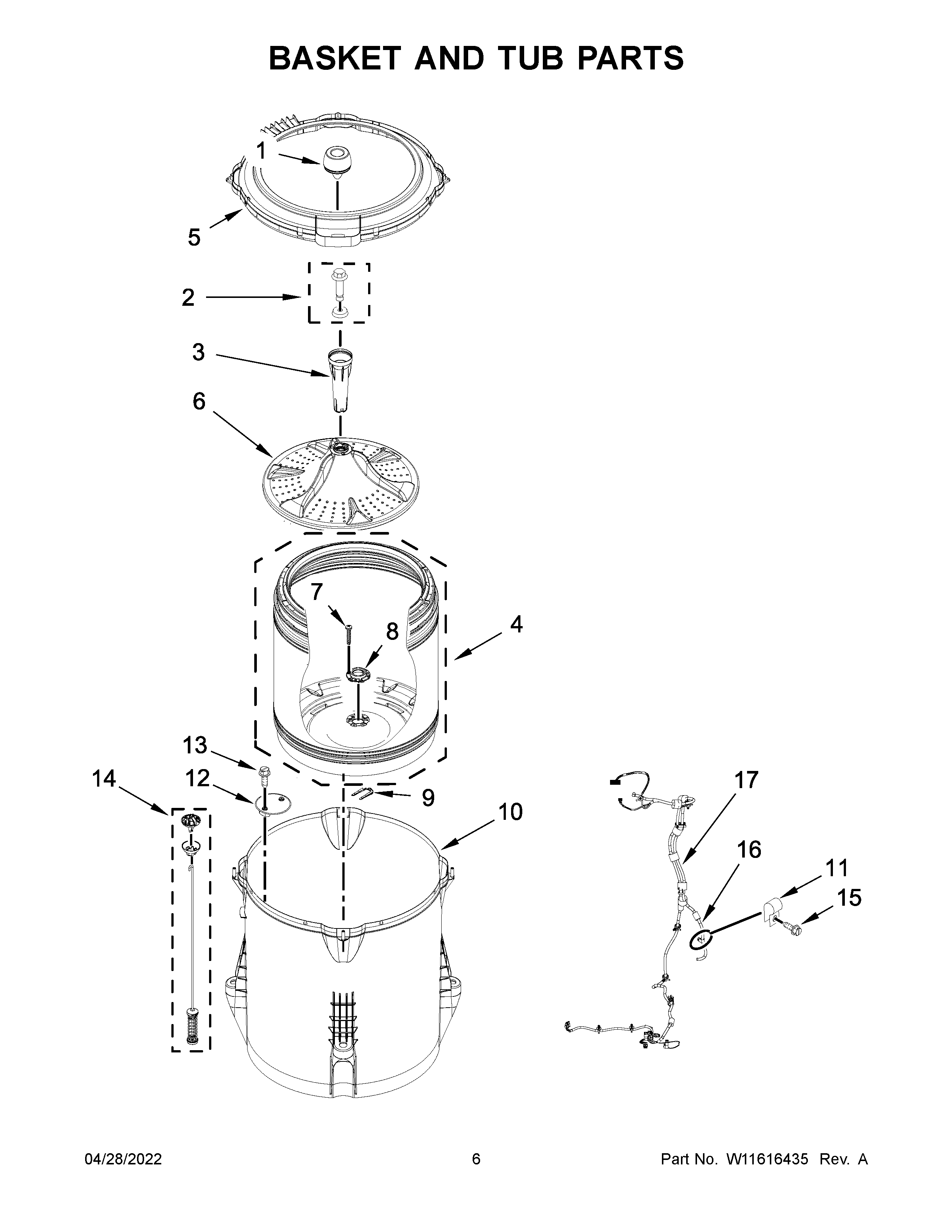

8TWTW4955JW1 04 – BASKET AND TUB PARTS

8TWTW4955JW1 04 – BASKET AND TUB PARTS

Written by

in

8TWTW4955JW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10793634 Whirlpool Dispenser
2W11223765 Whirlpool Screw
3W10836692 Whirlpool Agitator Upper
4W11172199 Whirlpool Basket
5W11550886 Whirlpool Tub Ring
6W11397111 Whirlpool Washplate Assembly
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10W10371566 Whirlpool Outer Tub
11W10005430 Whirlpool Clamp
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
14SUSPENSION (SET OF 4)
15WPW10109200 Whirlpool Screw
16WP353244 Whirlpool Hose
17W11665968 Whirlpool Washer Wire Harness
