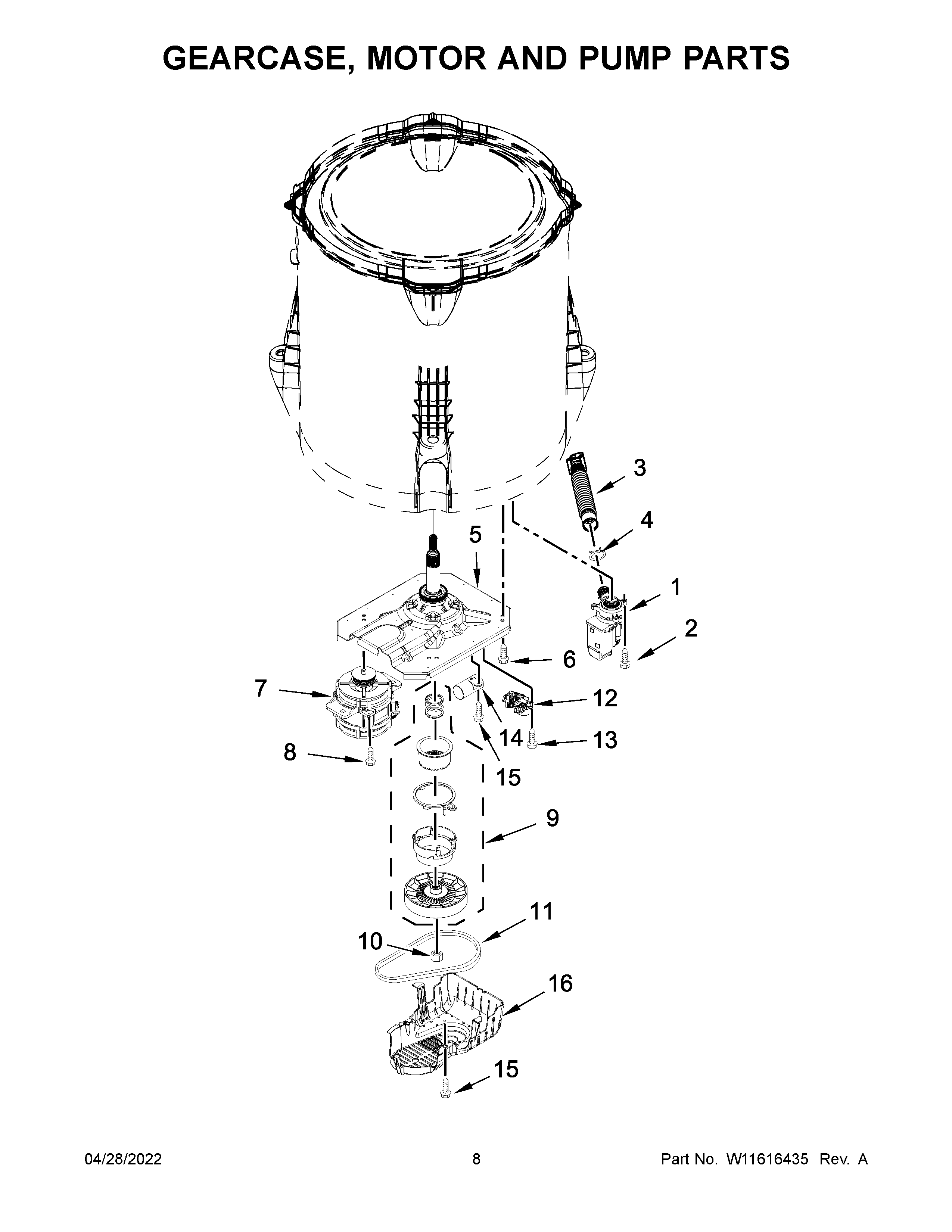

8TWTW4955JW1 05 – GEARCASE, MOTOR AND PUMP PARTS

8TWTW4955JW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

8TWTW4955JW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP-WATER
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5W11596834 Whirlpool Gearcase
6WPW10249633 Whirlpool Screw
7W10832724 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10W10759923 Whirlpool Washer Pulley Nut
11W11239857 Whirlpool Washer Belt
12ACTUATOR
13W11596033 Whirlpool Microwave Screw
14CAPACITOR (WASHER)
15W11573574 Whirlpool Screw
16W11409708 Whirlpool Shield Assembly
