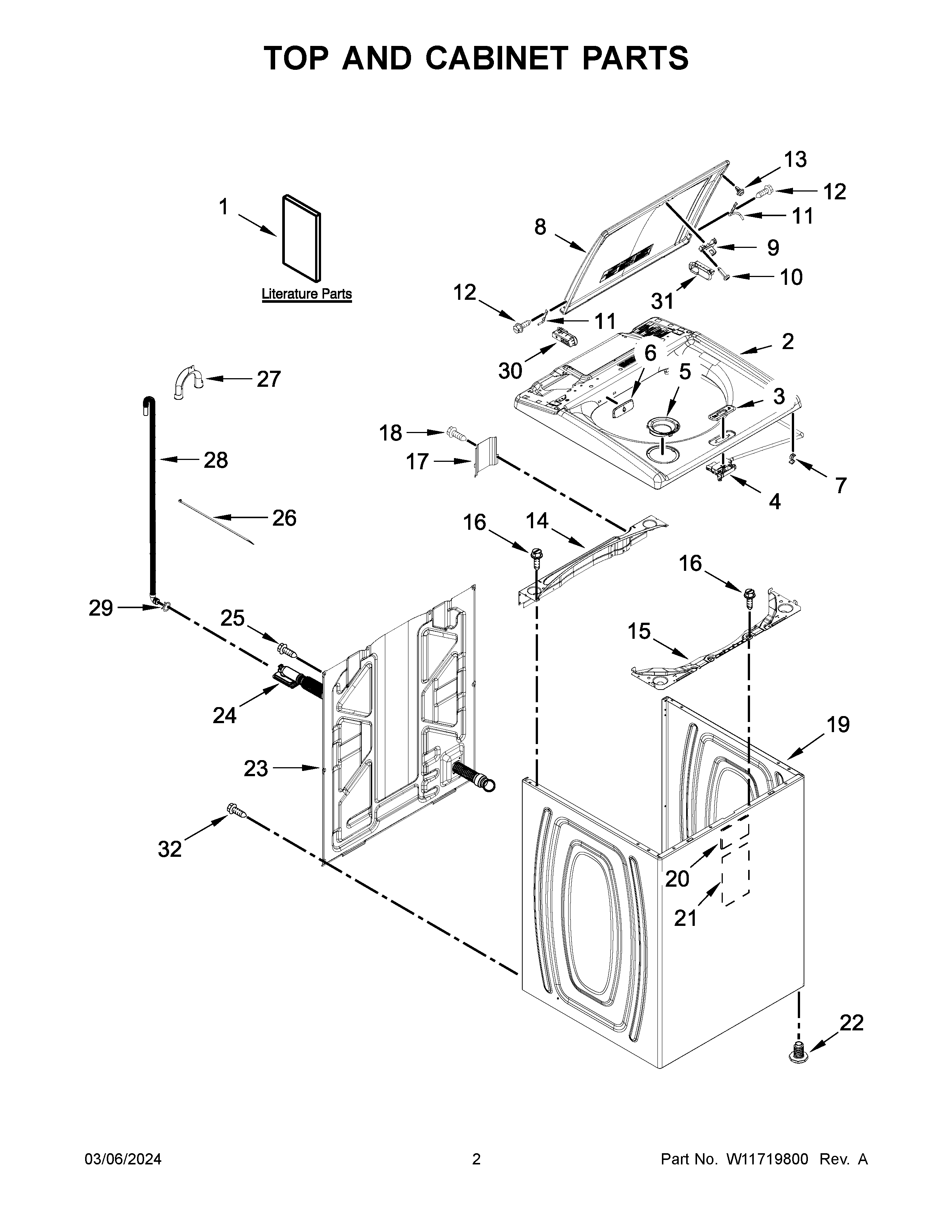

8TWTW5010PW0 02 – TOP AND CABINET PARTS
Written by
in
8TWTW5010PW0 02 – TOP AND CABINET PARTS
Products
Position
Product
1A
QUICK START GUIDE
1
OWNERS MANUAL
1B
TECH SHEET
2
W11513251 Whirlpool Top
3
W11643703 Whirlpool Bezel
4
LATCH, LID LOCK ASSEMBLY
5
W11234069 Whirlpool Dispenser
6
W11396263 Whirlpool Bezel
7
WP90016 Whirlpool Clip
8
W11513256 Whirlpool Lid
9
W11513250 Whirlpool Washer Lid Strike
10
WPW10273971 Whirlpool Screw
11
WP91770 Whirlpool Hinge
11A
W11513247 Whirlpool Hinge Assembly
12
SCREW
13
8572266 Whirlpool Bumper Assembly
14
W11712680 Whirlpool Commercial Part Brace
15
W11381327 Whirlpool Brace
16
W11568617 Whirlpool Screw
17
W10676061 Whirlpool Cover Assembly
18
W10846509 Whirlpool Screw
19
W10676680 Whirlpool Cabinet
20
WP8564458 Whirlpool Absorber
21
W11611669 Whirlpool Absorber
22
W11213957 Whirlpool Dishwasher Leveling Leg
23
W11486091 Whirlpool Rear Panel
24
W10899966 Whirlpool Hose Assembly
25
WP9740848 Whirlpool Dishwasher Screw
26
WPW10339879 Whirlpool Wire Tie
27
WPW10280024 Whirlpool Retainer
28
W11244231 Whirlpool Hose
29
WP356138 Whirlpool Hose Clamp
30
W11654274 Whirlpool Washer Bearing
31
W11654272 Whirlpool Bearing
32
W11685943 Whirlpool Screw
←
