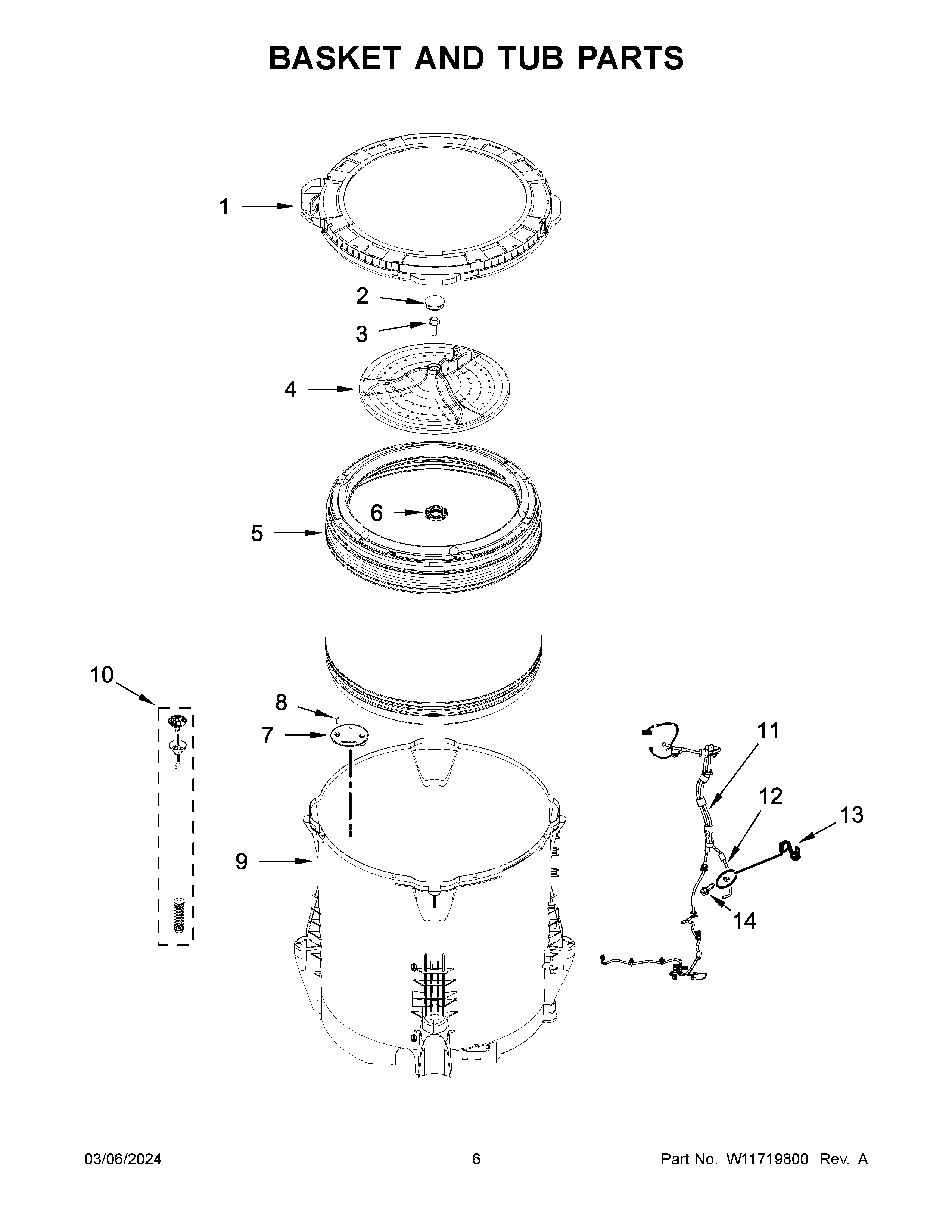

8TWTW5010PW0 04 – BASKET AND TUB PARTS

8TWTW5010PW0 04 – BASKET AND TUB PARTS

Written by

in

8TWTW5010PW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10849477 Whirlpool Tub Ring
2W11050804 Whirlpool Cap
3W10752187 Whirlpool Screw
4W10752283 Whirlpool Washer Washplate
5W11513244 Whirlpool Basket
6W11551646 Whirlpool Spanner Nut
7W11568797 Whirlpool Filter
8WP8533928 Whirlpool Refrigerator Screw
9W11219115 Whirlpool Outer Tub
10SUSPENSION
11HARNESS LOWER 4.7/4.8
12WP353244 Whirlpool Hose
13CLIP
14WPW10109200 Whirlpool Screw
