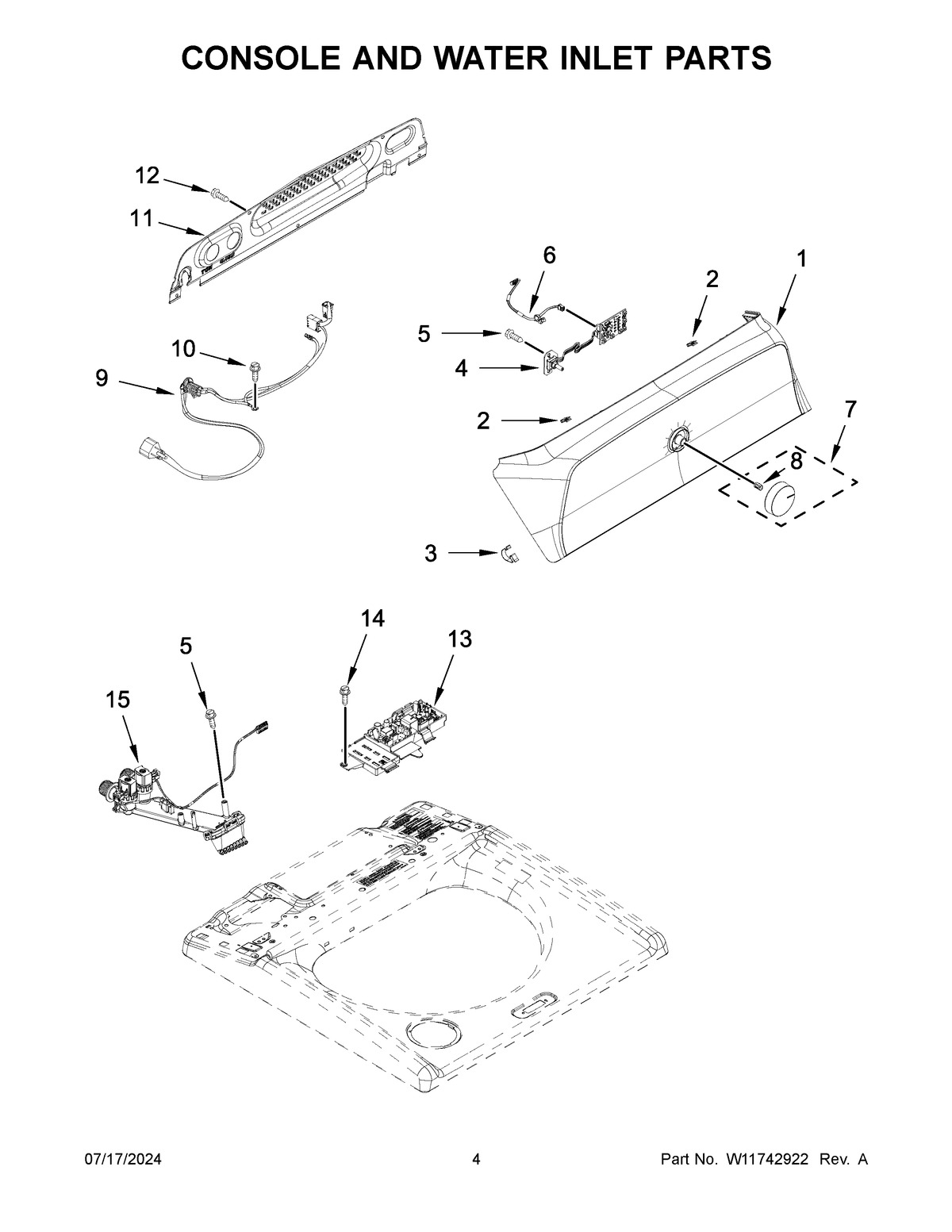

8TWTW5010PW1 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY
2W11213336 Whirlpool Nut
3WP8312709 Whirlpool Endcap Clip
4W11627516-includeCORE Whirlpool W11627516 Washer Electronic Control Board + Core
5WP9740848 Whirlpool Dishwasher Screw
6W11665945 Whirlpool Wire Harness
7W11662669 Whirlpool Dryer Knob
8WP688805 Whirlpool Spring Clip
9POWER CORD ASSEMBLY
10W10846509 Whirlpool Screw
11W10611544 Whirlpool Rear Panel
12W11685943 Whirlpool Screw
14WP693995 Whirlpool Screw
15WATER INLET ASSEMBLY (COMPLETE)
