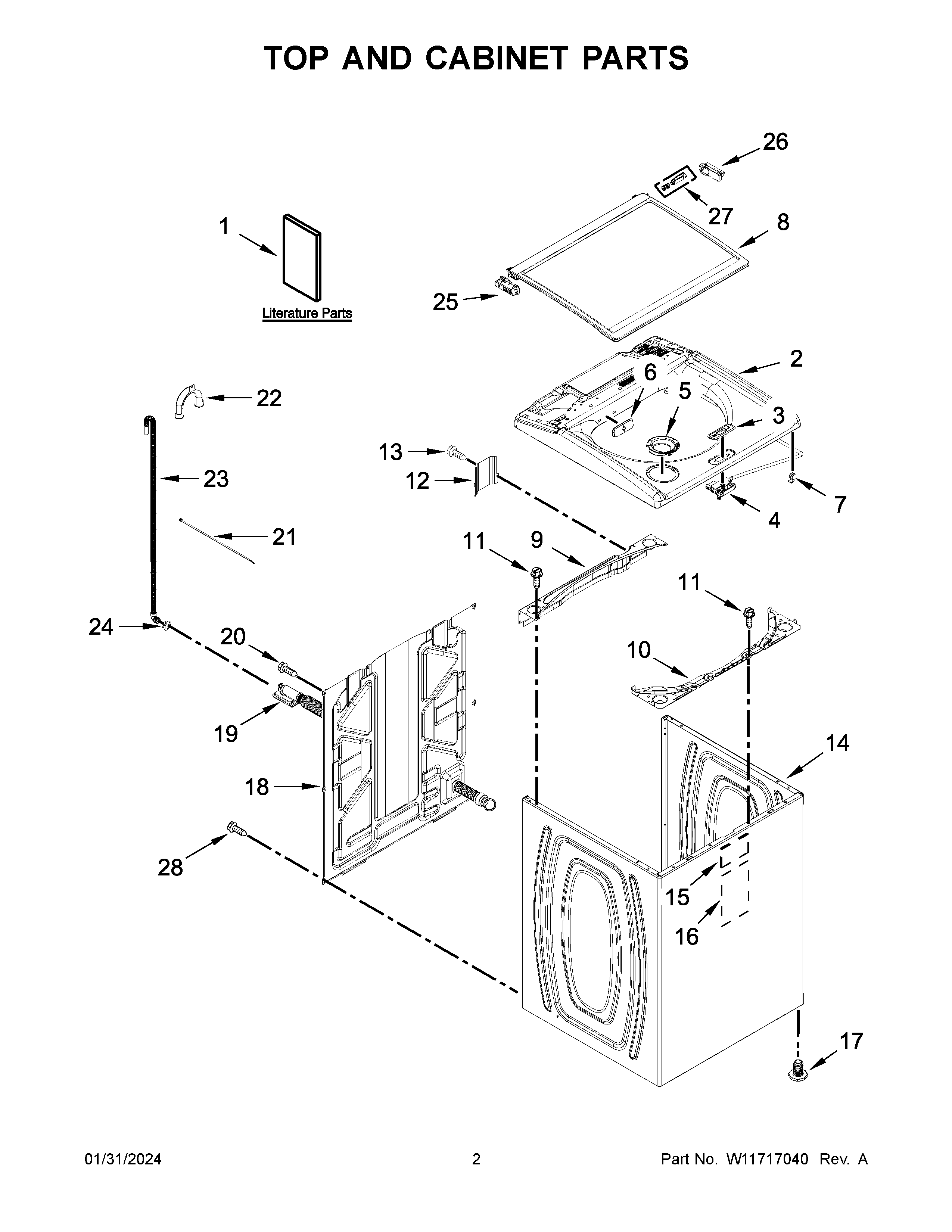

8TWTW5057PW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	QUICK START GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	W11513254 Whirlpool Top
3	W11643703 Whirlpool Bezel
4	LATCH, LID LOCK ASSEMBLY
5	W11234069 Whirlpool Dispenser
6	W11396263 Whirlpool Bezel
7	WP90016 Whirlpool Clip
8	LID ASSEMBLY (COMPLETE)
9	W11712680 Whirlpool Commercial Part Brace
10	W11381327 Whirlpool Brace
11	W11685943 Whirlpool Screw
12	W10676061 Whirlpool Cover Assembly
13	W10846509 Whirlpool Screw
14	W10676680 Whirlpool Cabinet
15	WP8564458 Whirlpool Absorber
16	W11197416 Whirlpool Absorber
17	W11213957 Whirlpool Dishwasher Leveling Leg
18	W11486091 Whirlpool Rear Panel
19	W10899966 Whirlpool Hose Assembly
20	WP9740848 Whirlpool Dishwasher Screw
21	WPW10339879 Whirlpool Wire Tie
22	WPW10280024 Whirlpool Retainer
23	W11244231 Whirlpool Hose
24	WP356138 Whirlpool Hose Clamp
25	W11638180 Whirlpool Bearing
26	W11638181 Whirlpool Bearing
27	RIGHT HINGE SPRING
28	W11568617 Whirlpool Screw
