8TWTW5057PW0 03 – CONSOLE AND WATER INLET PARTS
Written by
in

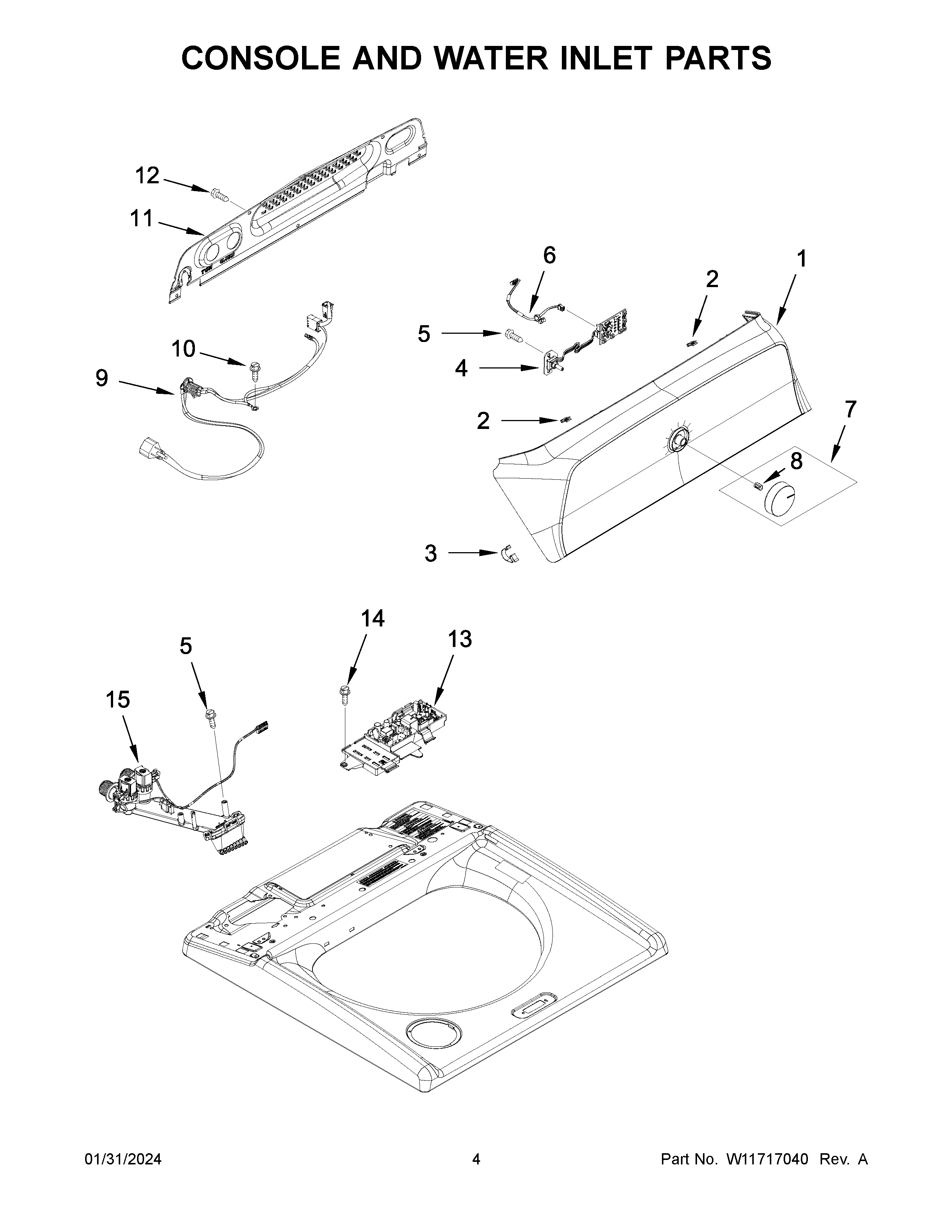

8TWTW5057PW0 03 – CONSOLE AND WATER INLET PARTS
Products
Position
Product
1
CONSOLE ASSEMBLY
2
W11213336 Whirlpool Nut
3
WP8312709 Whirlpool Endcap Clip
4
W11627516-includeCORE Whirlpool W11627516 Washer Electronic Control Board + Core
5
WP9740848 Whirlpool Dishwasher Screw
6
W11665945 Whirlpool Wire Harness
7
W11662669 Whirlpool Dryer Knob
8
WP688805 Whirlpool Spring Clip
9
POWER CORD ASSEMBLY
10
W10846509 Whirlpool Screw
11
W10611544 Whirlpool Rear Panel
12
W11685943 Whirlpool Screw
13
W11703388-includeCORE Whirlpool W11703388 Dishwasher Electronic Control Board with Core
14
WP693995 Whirlpool Screw
15
WATER INLET ASSEMBLY (COMPLETE)
←
