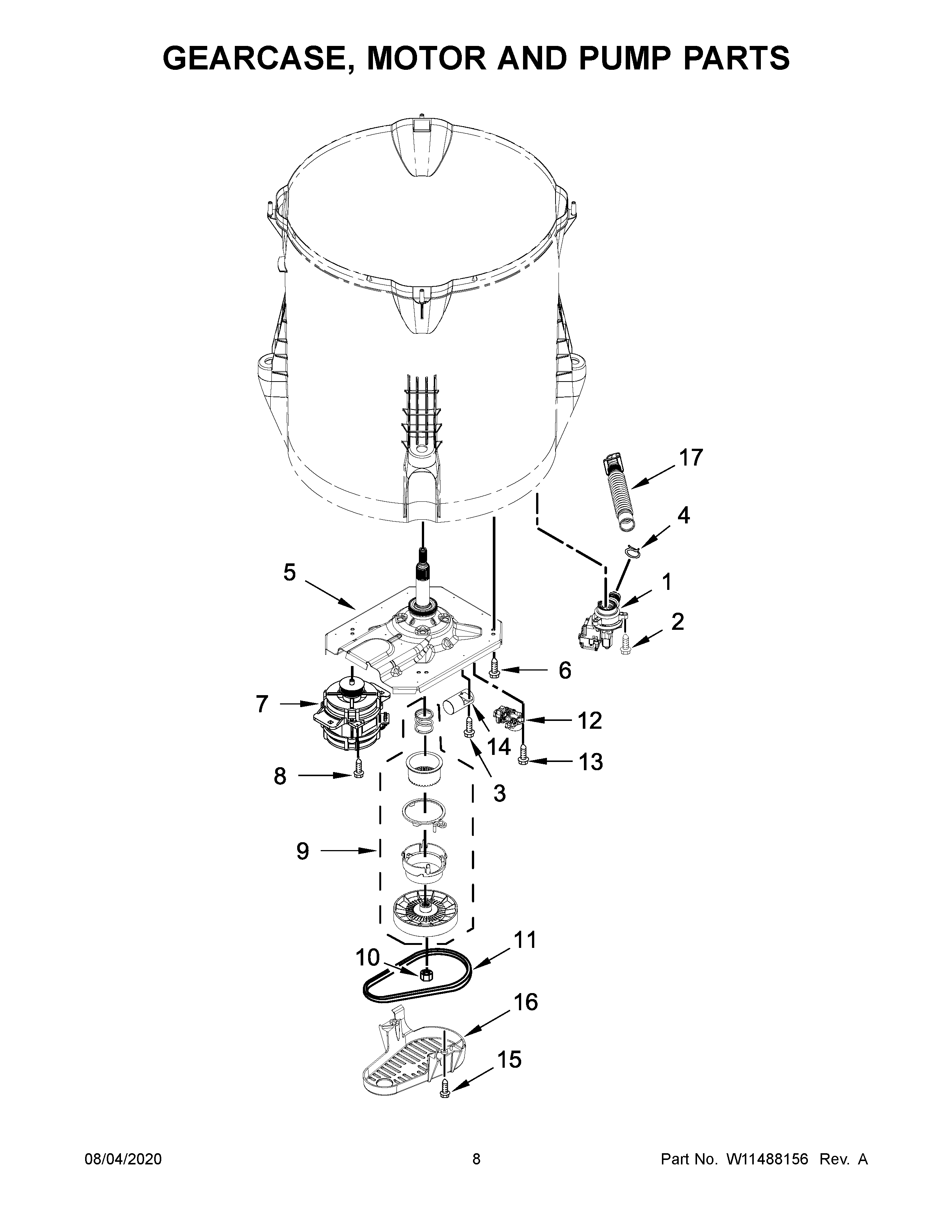

8TWTW6000JW0 05 – GEARCASE, MOTOR AND PUMP PARTS

8TWTW6000JW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

8TWTW6000JW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP-WATER
2WPW10004910 Whirlpool Screw
3WP489128 Whirlpool Refrigerator Screw
4WP285655 Whirlpool Hose Clamp
5GEARCASE DW1
6WPW10249633 Whirlpool Screw
7W11686050 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10W10759923 Whirlpool Washer Pulley Nut
11W11239857 Whirlpool Washer Belt
12W10913953 Whirlpool Washer Shift Actuator
13W11596033 Whirlpool Microwave Screw
14CAPACITOR-SCREW
15W11573574 Whirlpool Screw
16WPW10427633 Whirlpool Belt Shield
17W10899966 Whirlpool Hose Assembly
