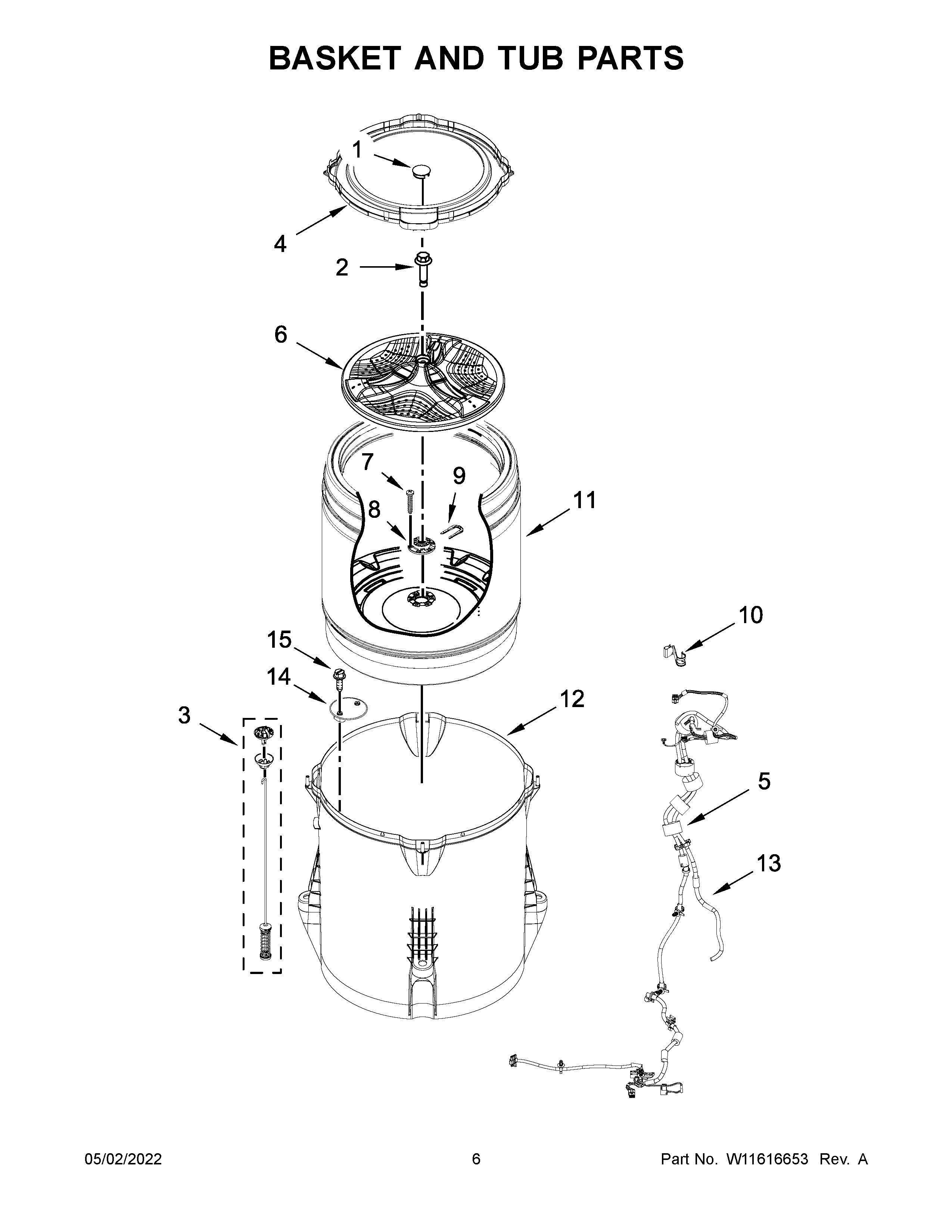

8TWTW6000JW1 04 – BASKET AND TUB PARTS

8TWTW6000JW1 04 – BASKET AND TUB PARTS

Written by

in

8TWTW6000JW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W11050804 Whirlpool Cap
2W10752187 Whirlpool Screw
3SUSPENSION
4W10849477 Whirlpool Tub Ring
5W11545744 Whirlpool Wire Harness
6W10752283 Whirlpool Washer Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10CLIP
11W10752719 Whirlpool Basket Assembly
12W11219115 Whirlpool Outer Tub
13WP353244 Whirlpool Hose
14W11568797 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
