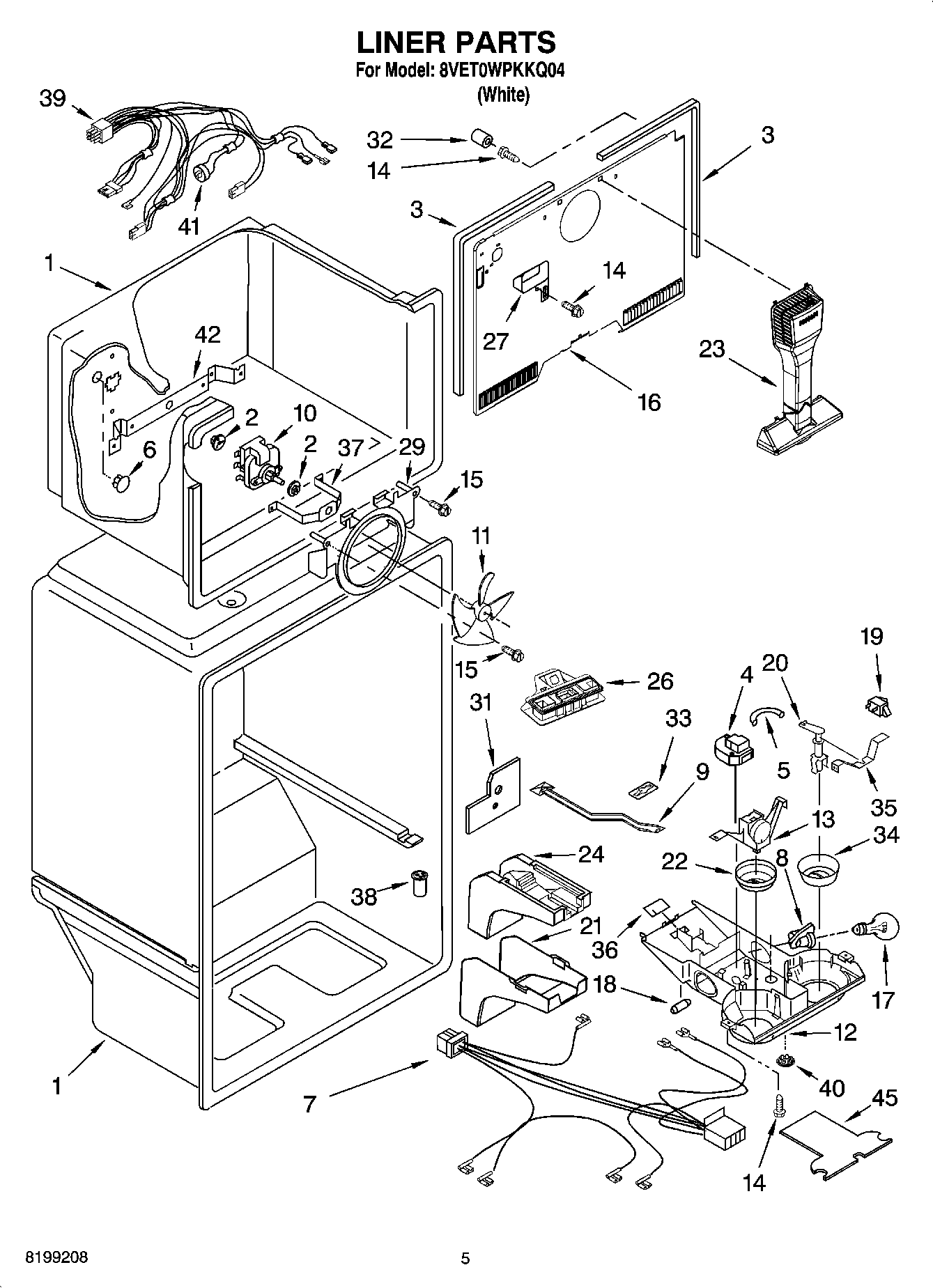

8VET0WPKKQ04 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	Thermostat Tube Barrier
6	WP941839 Whirlpool Refrigerator Button Plug
7	2310174 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	WP489478 Whirlpool Refrigerator Screw
15	WP693995 Whirlpool Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	Air Separator Assembly
27	Cover, Hole
29	Bracket, Fan Motor
31	Shield, heat
32	WP487996 Whirlpool Refrigerator Cap Tube
33	Clip, Defrost Timer
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
37	Bracket, Evap. Fan, Front
38	WP2210509 Whirlpool Refrigerator Tub Valve
39	Wire Assembly, Freezer Compartment
40	940014 Whirlpool Refrigerator Primary Button Plug
41	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
42	Bracket, Evap. Fan, Rear
45	Shield
