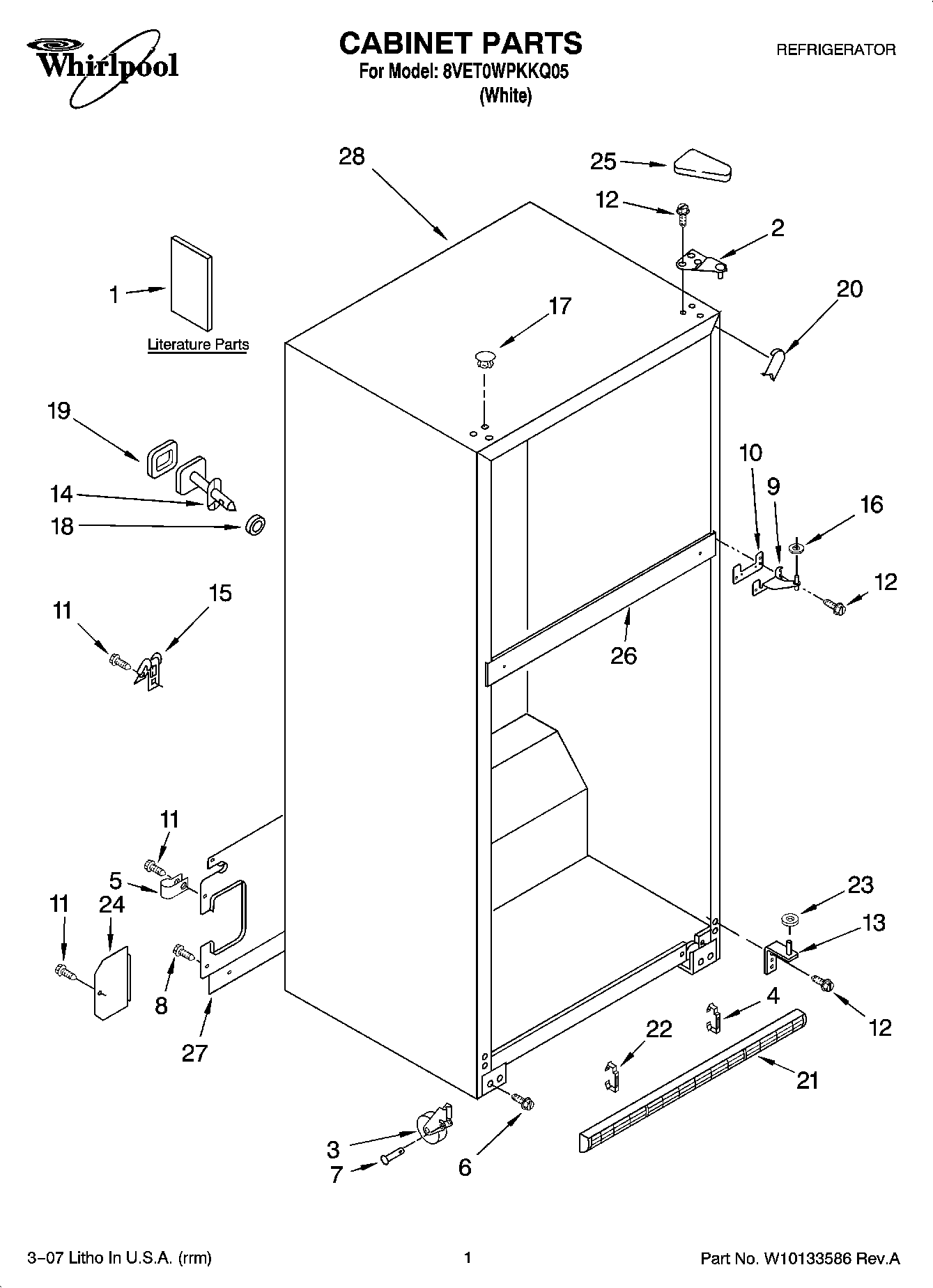

8VET0WPKKQ05 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	CLIP, GRILLE
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP489427 Whirlpool Refrigerator Screw
9	WP2254618 Whirlpool Center Door Hinge
10	WP2183854 Whirlpool Refrigerator Shim
11	WP489464 Whirlpool Refrigerator Screw
12	WP489497 Whirlpool Screw
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	Fitting, Water Tube (Not Serviced)
15	489348 Whirlpool Refrigerator Tube Clamp
16	WP489467 Whirlpool Hinge Shim
17	WP2151652 Whirlpool Refrigerator Button Plug
18	Seal, Front (Not Serviced)
19	Seal, Rear (Not Serviced)
20	WPW10283959 Whirlpool Refrigerator Filler
21	WP2254386 Whirlpool Refrigerator Grille
22	2254385 Whirlpool Refrigerator Clip
23	WP487576 Whirlpool Washer
24	Cover, Water Valve
25	WP2213360 Whirlpool Refrigerator Cover
26	Rail, Center (Not Serviced)
27	WP2189475 Whirlpool Refrigerator Unit Cover
28	Cabinet, (Not A Serviceable Part)
