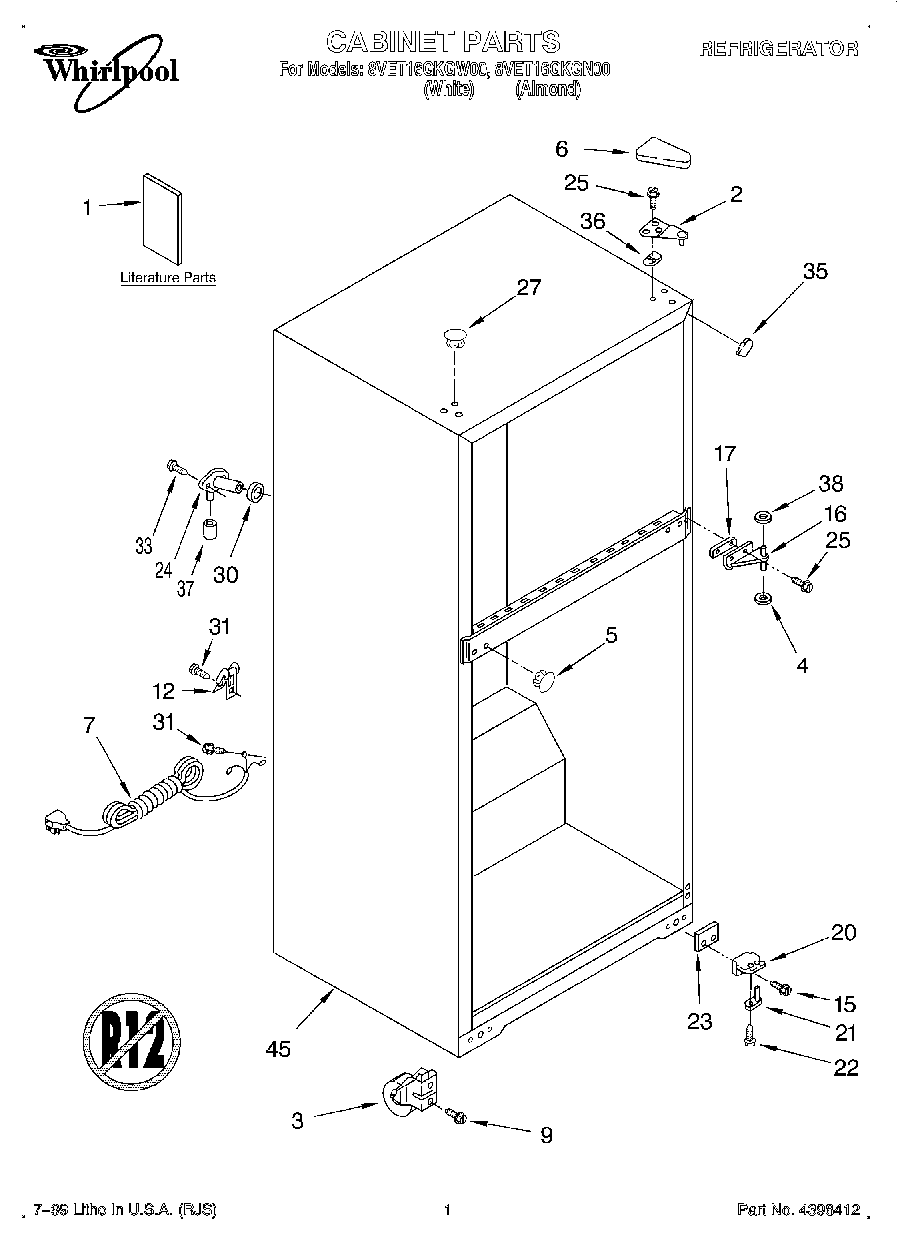

8VET16GKGW00 01 – CABINET, LITERATURE

Products

Position	Product
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Service & Wiring Sheet
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	Roller-Front
4	WP487802 Whirlpool Refrigerator Washer
5	Hole Plug (4) (White)
6	Cover, Hinge (Almond)
6	WP2213360 Whirlpool Refrigerator Cover
7	Cord, Service
9	Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP999367 Whirlpool Refrigerator Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	Screw 10-32 x 5/16
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
25	WP489497 Whirlpool Screw
27	Hole Plug (6) (Almond)
27	WP2151652 Whirlpool Refrigerator Button Plug
30	WP1106508 Whirlpool Refrigerator Gasket
31	WP489442 Whirlpool Refrigerator Screw
35	Corner Filler (Almond)
35	W10859322 Whirlpool Refrigerator Filler
36	Shim, Hinge Top
37	WP487996 Whirlpool Refrigerator Cap Tube
38	WP489467 Whirlpool Hinge Shim
