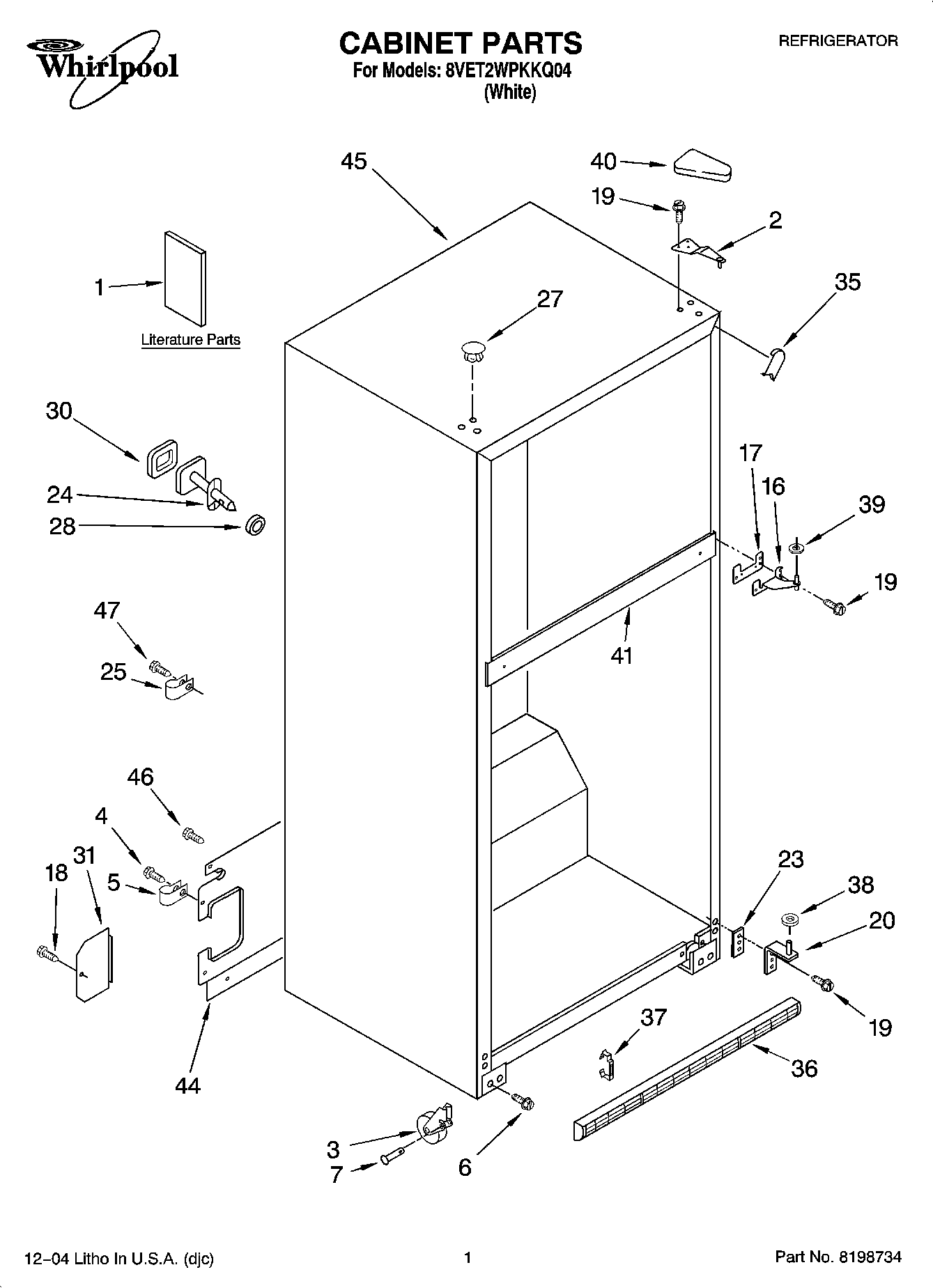

8VET2WPKKQ04 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	WP489497 Whirlpool Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
25	549193 Whirlpool Refrigerator Power Clamp
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
31	Cover, Water Valve
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille (White)
37	CLIP, GRILLE
38	WP487576 Whirlpool Washer
39	WP489467 Whirlpool Hinge Shim
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
46	WP489427 Whirlpool Refrigerator Screw
47	WP489442 Whirlpool Refrigerator Screw
