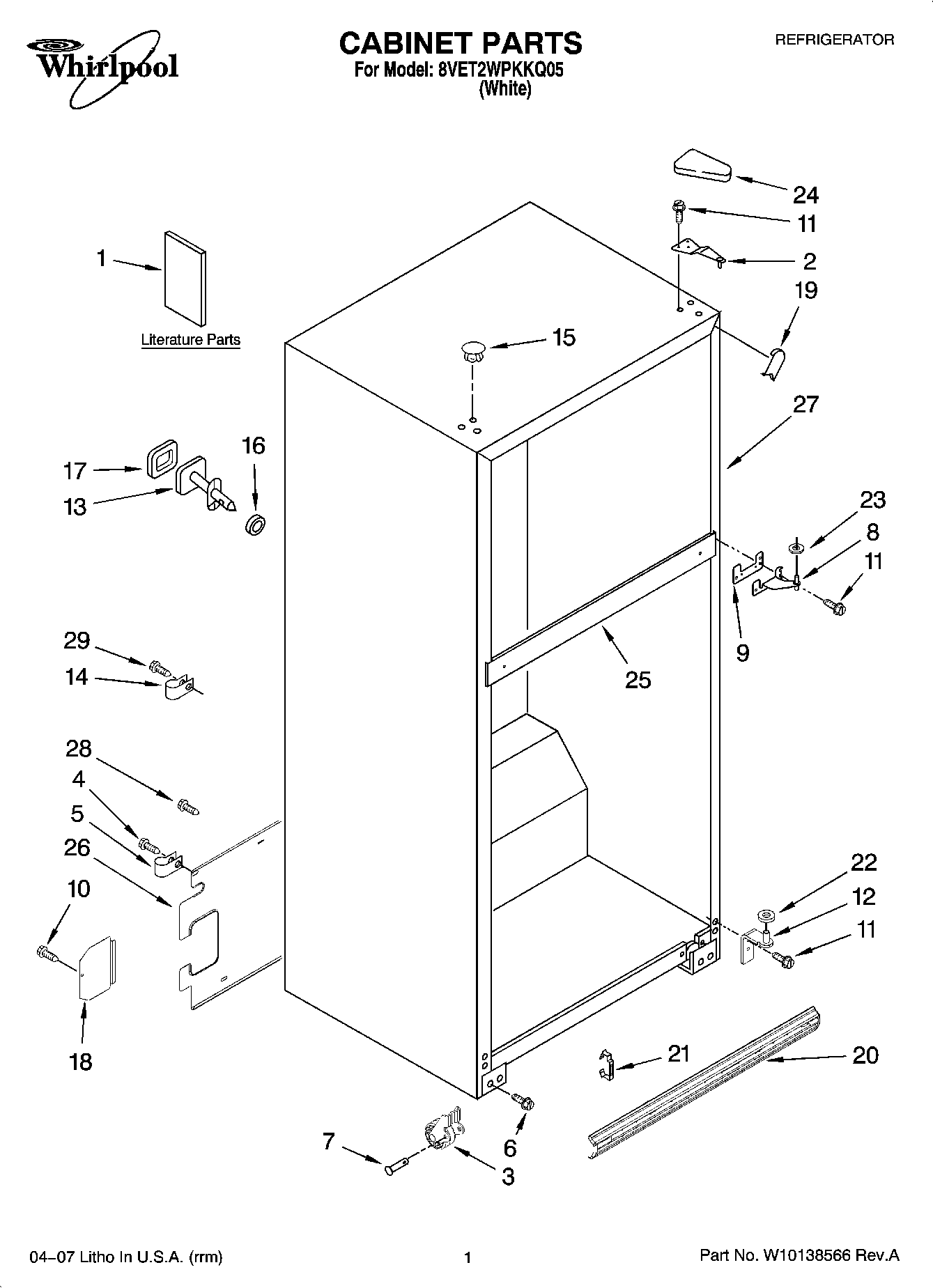

8VET2WPKKQ05 01 – CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183854 Whirlpool Refrigerator Shim
10	WP489464 Whirlpool Refrigerator Screw
11	WP489497 Whirlpool Screw
12	WP2254473 Whirlpool Refrigerator Door Hinge
13	Fitting, Water Tube (Not Serviced)
14	489348 Whirlpool Refrigerator Tube Clamp
15	WP2151652 Whirlpool Refrigerator Button Plug
16	Seal, Front (Not Serviced)
17	Seal, Rear (Not Serviced)
18	Cover, Water Valve
19	WPW10283959 Whirlpool Refrigerator Filler
20	Grille (White)
21	CLIP, GRILLE
22	WP487576 Whirlpool Washer
23	WP489467 Whirlpool Hinge Shim
24	WP2213360 Whirlpool Refrigerator Cover
25	Rail, Center (Not Serviced)
26	Cover, Unit
27	Cabinet, (Not A Serviceable Part)
28	WP489427 Whirlpool Refrigerator Screw
29	WP489442 Whirlpool Refrigerator Screw
