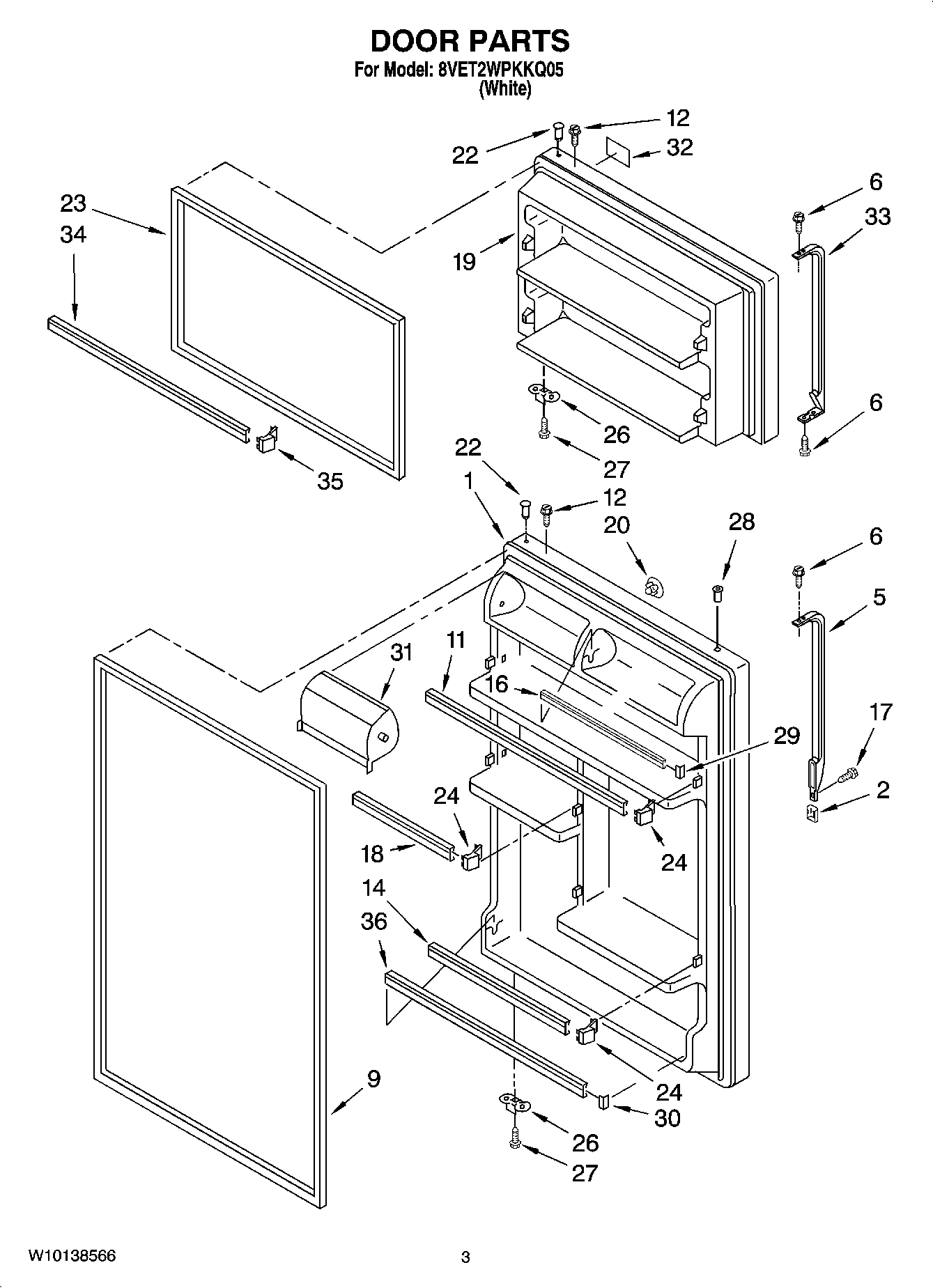

8VET2WPKKQ05 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 8 & 9) (White)
2	WP2193353W Whirlpool Refrigerator Trim Handle
6	8534058 Whirlpool Refrigerator Screw
9	2159061 Whirlpool Refrigerator Door Gasket
11	Trim, Door Shelf
12	WP8281206 Whirlpool Refrigerator Screw
14	WP2195943 Whirlpool Shelf Retainer Bar
16	TRIM-DOOR
17	WP8281146 Whirlpool Screw
18	Trim, Door Shelf
19	W11023679 Whirlpool Refrigerator Door Assembly
20	WP2189000 Whirlpool Refrigerator Handle Plug
22	WP2314293 Whirlpool Refrigerator Thimble
23	WHITE DOOR GASKET-FIP
24	WP2195915 Whirlpool Door Shelf Support
26	W11745278 Whirlpool Bracket
27	WP681249 Whirlpool Screw Assembly
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218118 Whirlpool Refrigerator Door Compressor
32	Nameplate (White)
33	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
34	Trim, Door Shelf (2)
35	ENDCAP
36	WPW10421486 Whirlpool Refrigerator Door Trim
