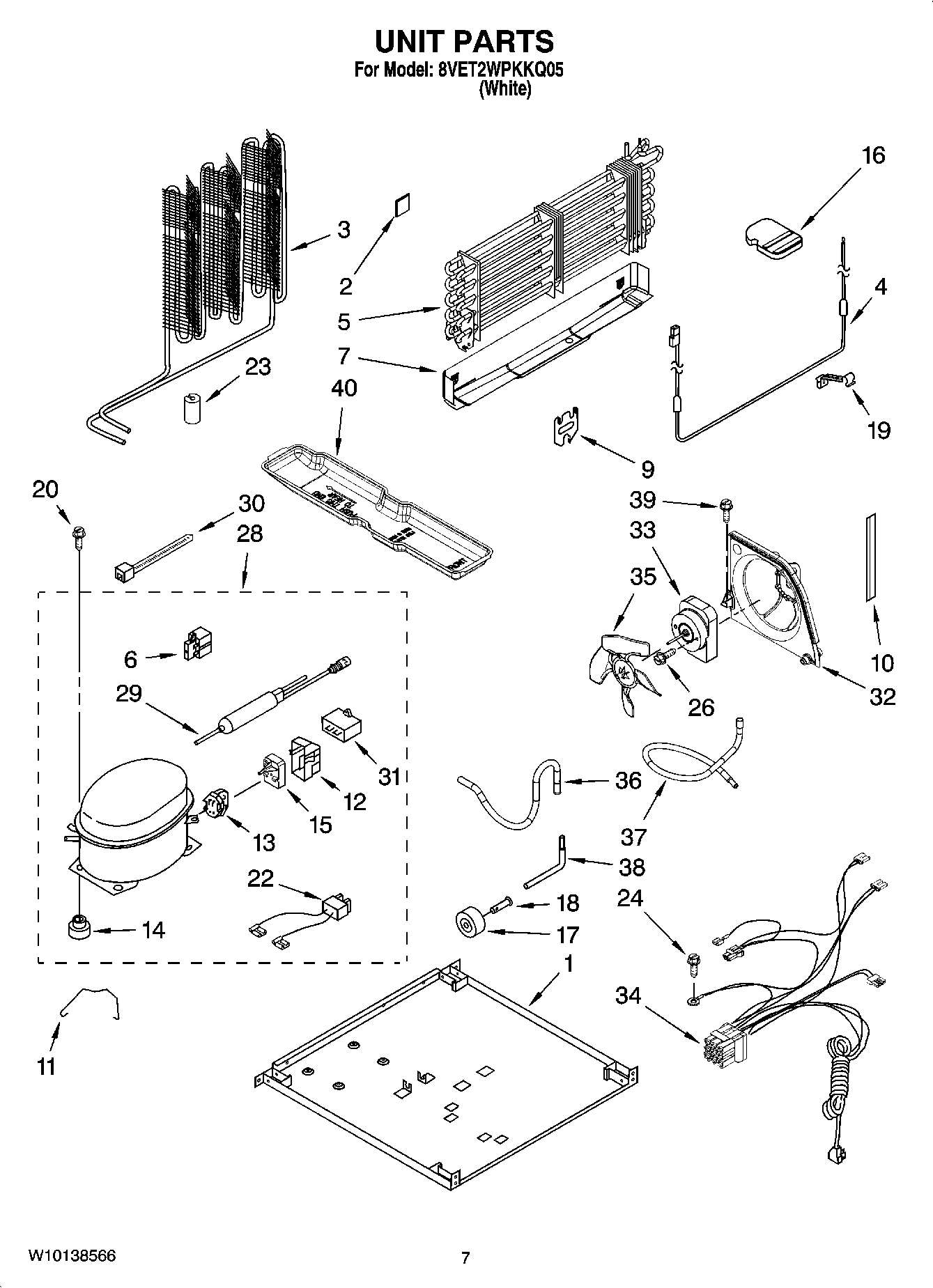

8VET2WPKKQ05 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W10920279 Whirlpool Refrigerator Start Relay
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	2212996 Whirlpool Refrigerator Retainer
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WP2225929 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
22	WP2172890 Whirlpool Refrigerator Wire
23	W10852725 Whirlpool Refrigerator Grommet
24	WP489128 Whirlpool Refrigerator Screw
26	WPW10171469 Whirlpool Refrigerator Screw
28	W10309988 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	WP2315541 Whirlpool Refrigerator Air Baffle
33	WP2188874 Whirlpool Refrigerator Condenser Motor
34	Wire Assembly Unit
35	W11458267 Whirlpool Refrigerator Fan Blade
36	Tube, Discharge
37	Tube, Suction
38	2154109 Whirlpool Refrigerator Tube
39	3400518 Whirlpool Oven Foot Mount Screw
40	Following Parts Not Illustrated and Optional Parts Not Included
40	VALVE, ACCESS (5/8“)
40	876764 Whirlpool Refrigerator Primary Valve
40	978027 Whirlpool Refrigerator Primary Valve
40	978030 Whirlpool Refrigerator Valve
40	WP978025 Whirlpool Refrigerator Valve
40	VALVE, ACCESS (1/2“)
40	WP2254574 Whirlpool Refrigerator Evaporator Tray
40	978026 Whirlpool Refrigerator Primary Valve
40	REFRIGERANT CHARGE 4.0 Ozs. (R134A)
