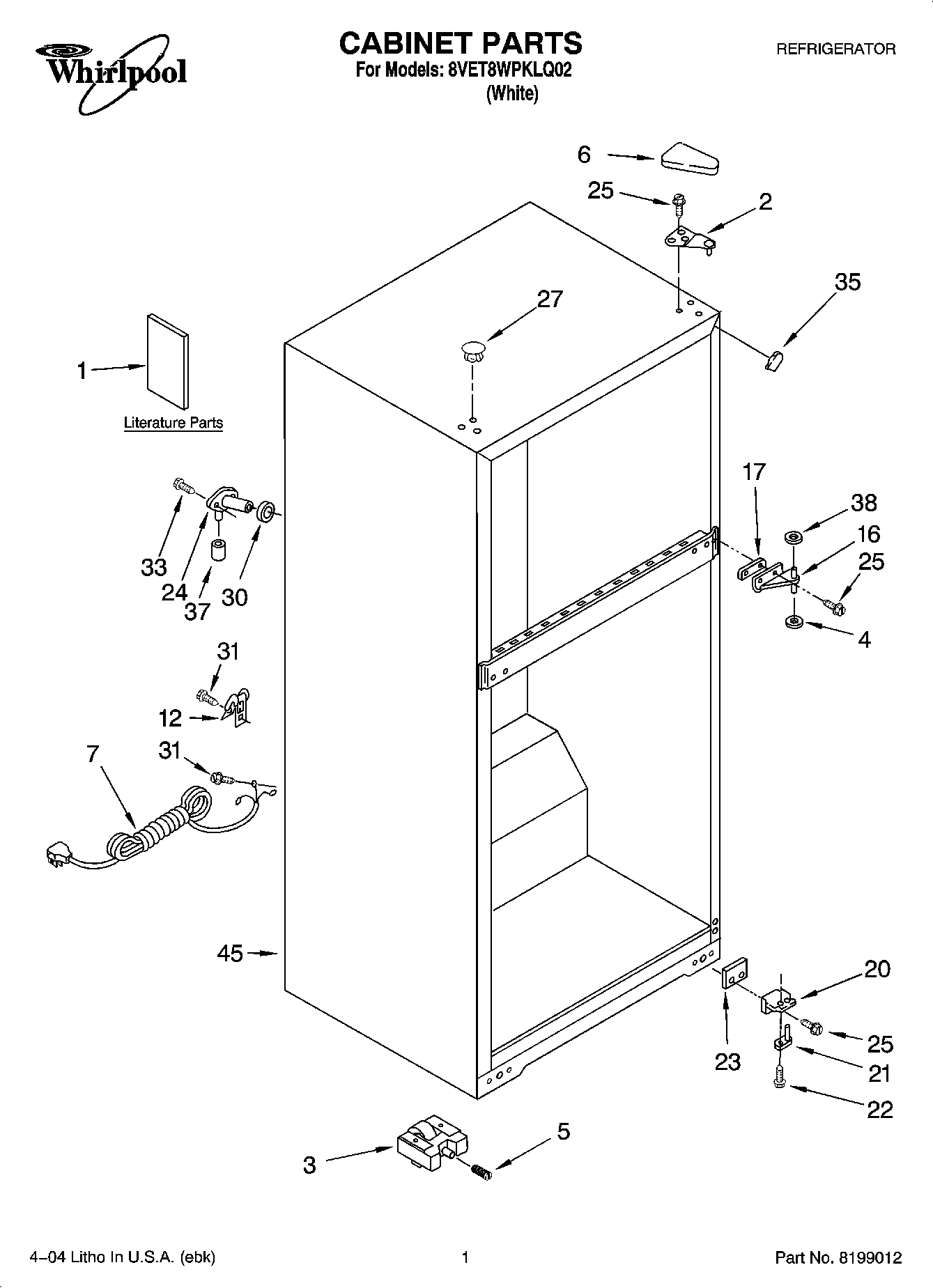

8VET8WPKLQ02 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP487802 Whirlpool Refrigerator Washer
5	2222100 Whirlpool Refrigerator Screw
6	WP2213360 Whirlpool Refrigerator Cover
7	Cord, Service
12	549193 Whirlpool Refrigerator Power Clamp
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	WP3428970 Whirlpool Refrigerator Screw
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
25	WP489497 Whirlpool Screw
27	WP2151652 Whirlpool Refrigerator Button Plug
30	WP1106508 Whirlpool Refrigerator Gasket
31	WP489442 Whirlpool Refrigerator Screw
33	WP488729 Whirlpool Refrigerator Door Screw
35	W10859322 Whirlpool Refrigerator Filler
37	WP487996 Whirlpool Refrigerator Cap Tube
38	WP489467 Whirlpool Hinge Shim
45	Cabinet (Not A Serviceable Part)
