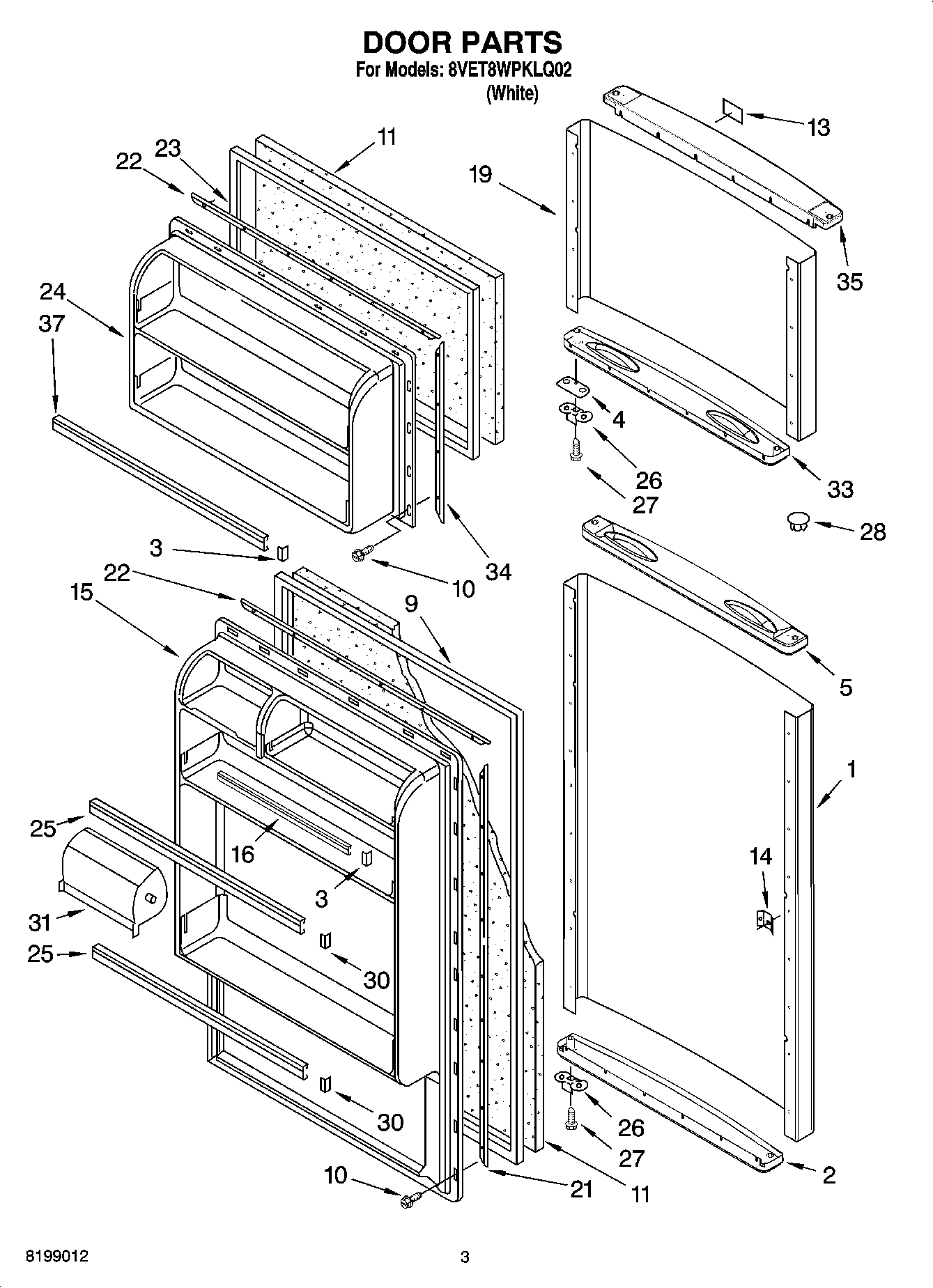

8VET8WPKLQ02 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Items 5 & 6) (Also order Item 11)
2	Endcap, Bottom (White)
3	ENDCAP-TRM
4	WP2258681W Whirlpool Refrigerator Shim
5	2265645W Whirlpool Refrigerator Handle
9	WP2319264T Whirlpool Door Gasket
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
13	WP2213265 Whirlpool Refrigerator Nameplate
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
16	Trim, Door Shelf (Upper)
19	Freezer Door Panel (Includes Items 2 & 33) (Also order Item 11) (White)
21	Retainer, Gasket
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
25	WP2266738 Whirlpool Refrigerator Door Trim
26	W11745278 Whirlpool Bracket
27	SCREW
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	Compartment Door
34	Retainer, Gasket
35	2265644W Whirlpool Refrigerator Door Trim
37	WP2266727 Whirlpool Refrigerator Door Trim
