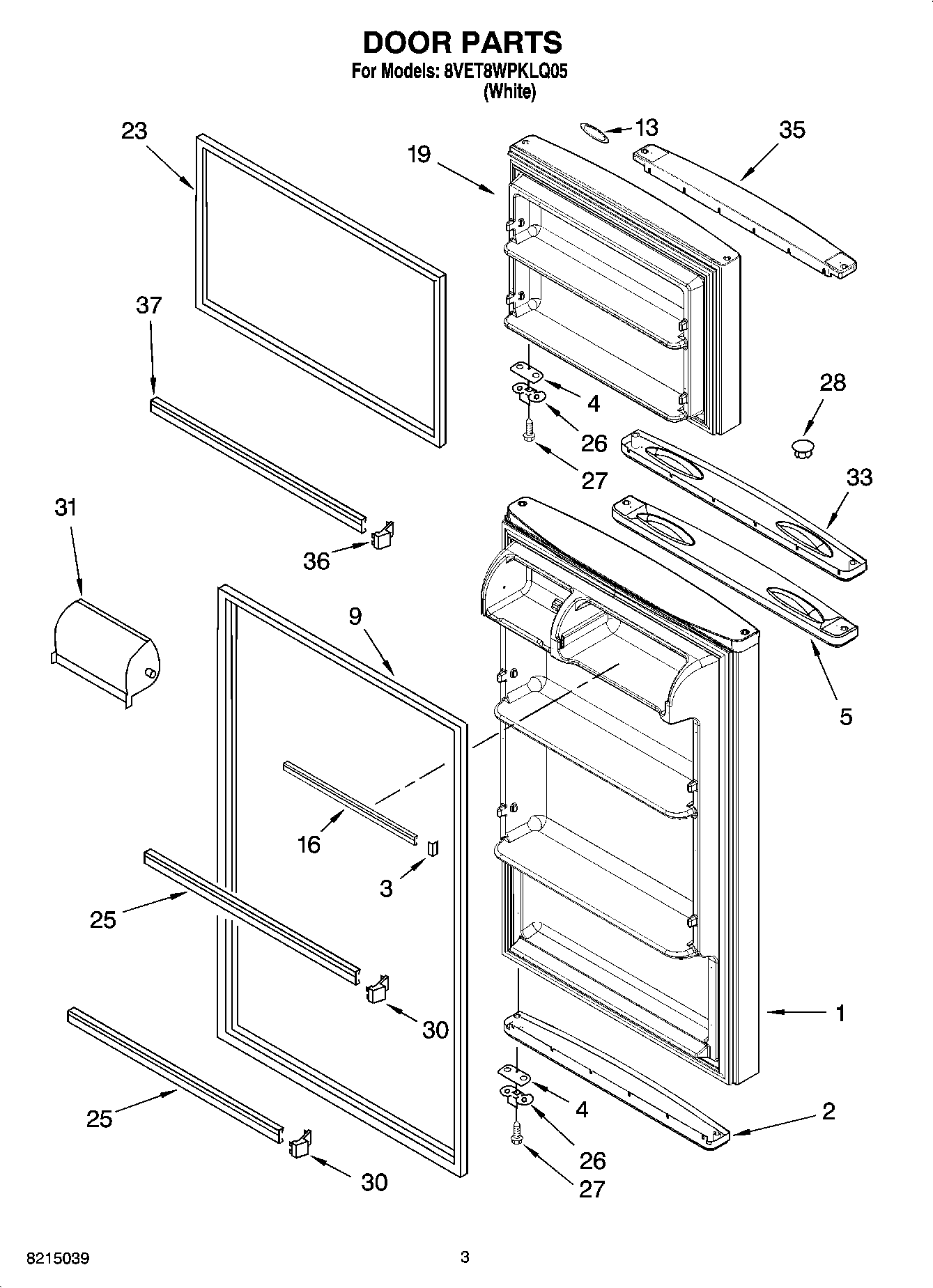

8VET8WPKLQ05 02 – DOOR PARTS

8VET8WPKLQ05 02 – DOOR PARTS

Written by

in

8VET8WPKLQ05 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 5,6 & 9) (White)
2Endcap, Bottom (White)
3ENDCAP-TRM
4WP2258681W Whirlpool Refrigerator Shim
9WP2319264T Whirlpool Door Gasket
13WP2213265 Whirlpool Refrigerator Nameplate
16Trim, Door Shelf (Upper)
192316367W Whirlpool Refrigerator DOR-FIP WH (DROP SHIP)
23WP2319263T Whirlpool Refrigerator FIP Gasket
25WP2266738 Whirlpool Refrigerator Door Trim
26W11745278 Whirlpool Bracket
27SCREW
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
30ENDCAP
31Compartment Door
332265645W Whirlpool Refrigerator Handle
352265644W Whirlpool Refrigerator Door Trim
36WP2156003 Whirlpool Refrigerator Door Shelf End Cap
37WP2266727 Whirlpool Refrigerator Door Trim
