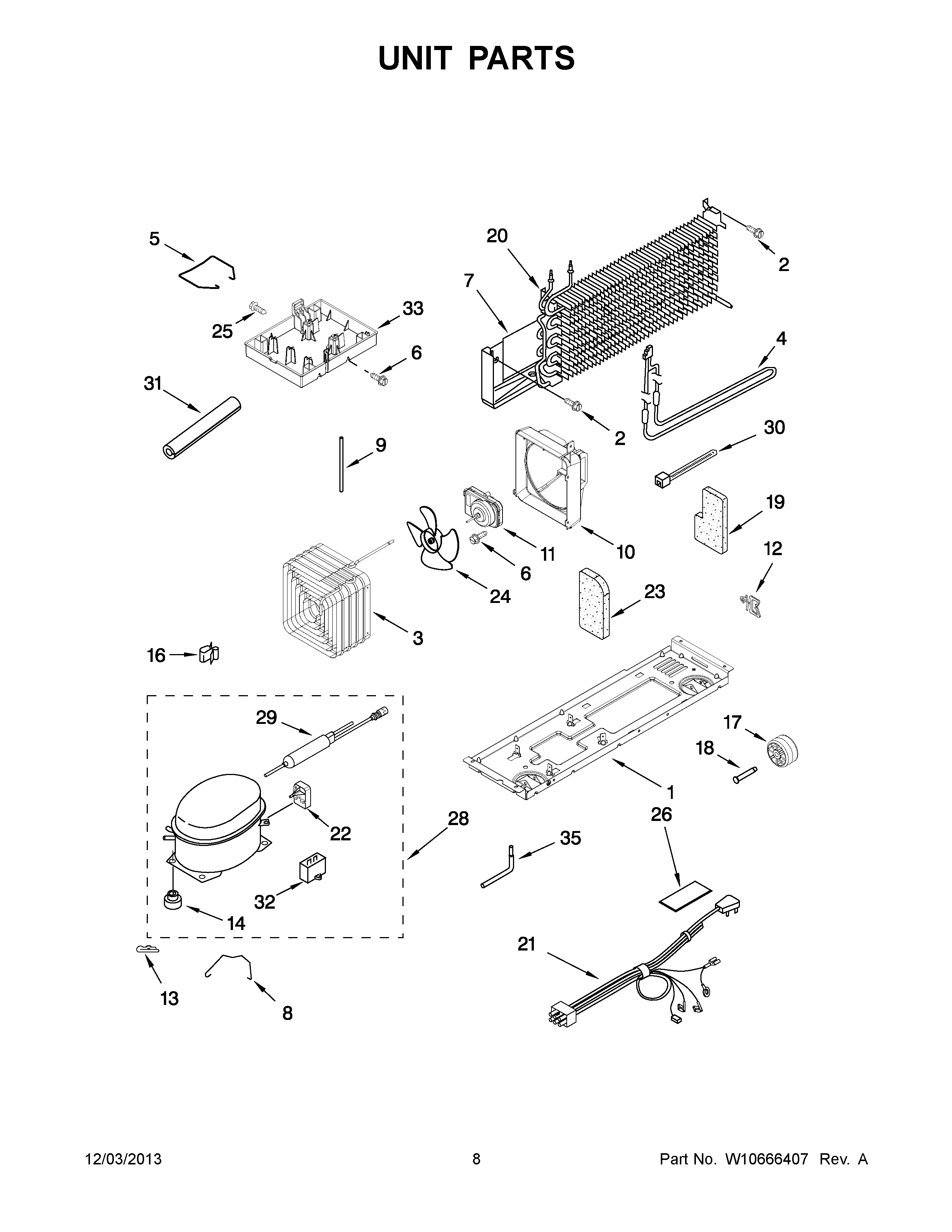

8W8TXDGFBW00 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8``)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2``)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	2264597 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	Retainer
10	W10358308 Whirlpool Refrigerator Air Baffle
11	WP2188874 Whirlpool Refrigerator Condenser Motor
12	2264278 Whirlpool Refrigerator Extension
13	Clip, Compressor
14	WPW10169124 Whirlpool Refrigerator Grommet
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	WIRE ASSY, UNIT
22	WPW10197428 Whirlpool Start Device
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
28	W10160407 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2263928 Whirlpool Refrigerator Evaporator Tray
35	W11661102 Whirlpool Tube
