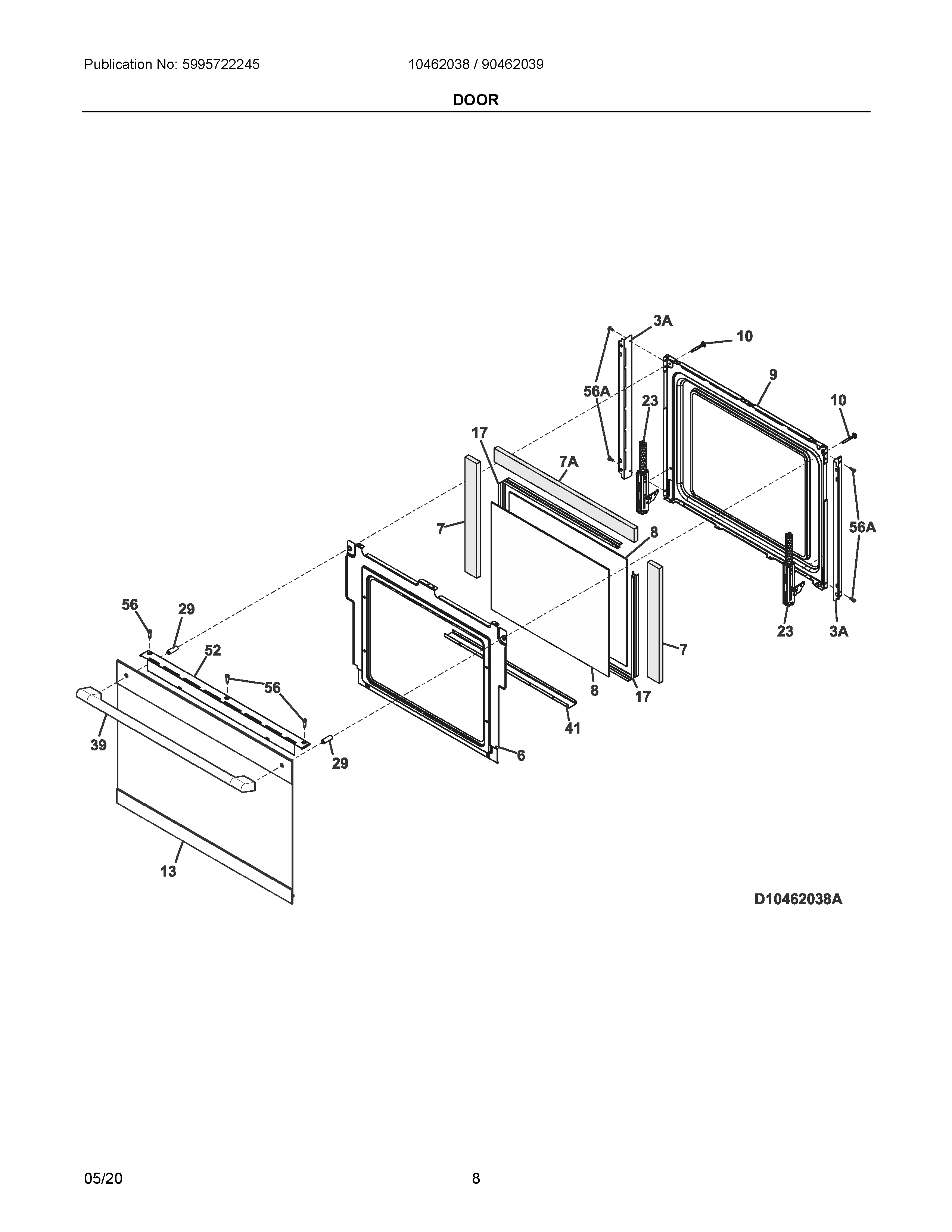

90462039A 04 – DOOR

90462039A 04 – DOOR

Written by

in

90462039A 04 – DOOR

Products

PositionProduct
NI316021109 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
3A5304520787 Frigidaire Trim
6808474502 Frigidaire Shield
7A5304505925 Frigidaire Insulation
7807887502 Frigidaire Insulation
8316502502 Frigidaire Oven Glass
9LINER, OVEN DOOR, BLACK
10SCREW, TRUSS HEAD, 10 24X1.980
135304514955 Frigidaire Door Assembly
175304503172 Frigidaire Door Glass Spacer
23139010300 Frigidaire Hinge
29808296701 Frigidaire Oven Spacer
39HANDLE
41SUPPORT, GLASS
525304520856 Frigidaire Trim
565303324184 Frigidaire Wall Oven Range Screw
