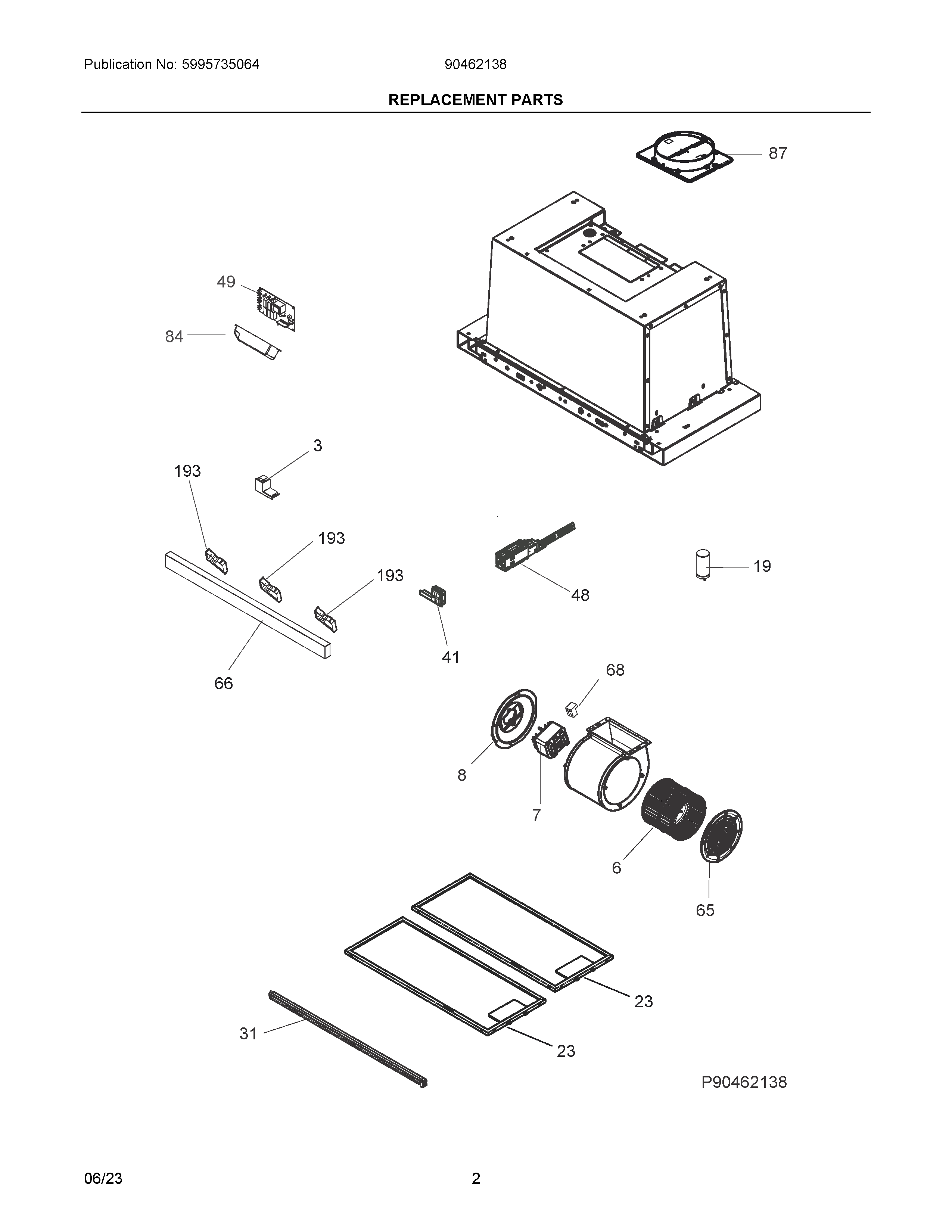

90462138 02 – REPLACEMENT PARTSadmin2025-04-26T08:49:31+00:0090462138 02 – REPLACEMENT PARTS
Products
| Position | Product |
|---|
| 3 | PLUG, DASHBOARD |
| 6 | WHEEL, BLOWER |
| 7 | MOTOR, BLOWER |
| 8 | BRACKET, MOTOR SUPPORT |
| 19 | CAPACITOR |
| 23 | FILTER, GREASE |
| 31 | LAMP, ASSEMBLY, LED |
| 41 | CONTROL PANEL, ASSEMBLY |
| 48 | CIRCUIT BOARD, ASSEMBLY |
| 49 | PC BOARD, VARIATOR |
| 65 | GRILL, PROTECTION, BLOWER |
| 66 | PANEL, DASHBOARD |
| 68 | CONNECTOR, ELECTRICAL |
| 84 | TRANSFORMER |
| 87 | FLUE ASSEMBLY, CONNECTION |
| 193 | SUPPORT, DASHBAORD PANEL |
