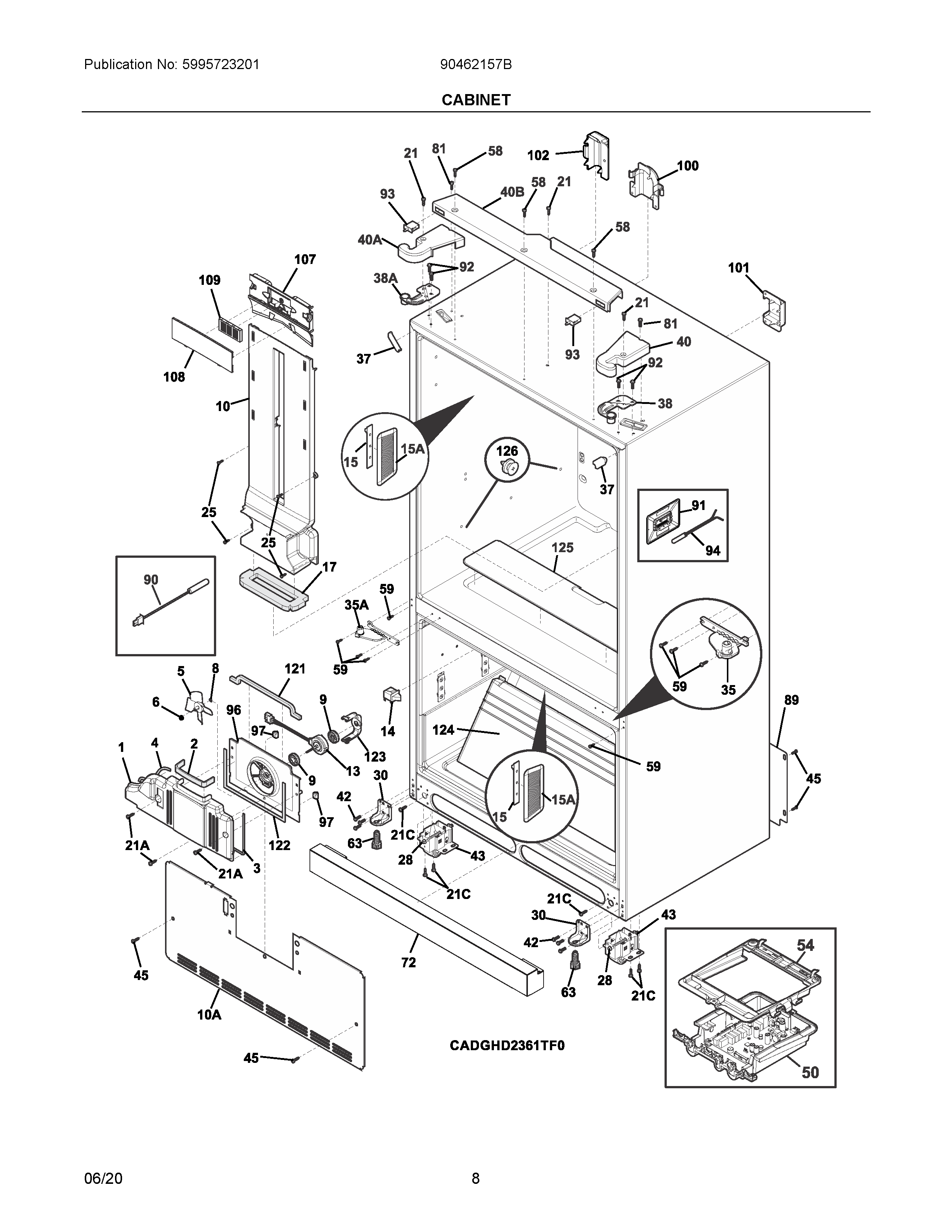

90462157B 04 – CABINET

90462157B 04 – CABINET

Written by

in

90462157B 04 – CABINET

Products

Position	Product
NIA	215474201 Frigidaire Refrigerator Washer
NI	134154100 Frigidaire Screw 10-32 x 0.375 Co
NI	241860402 Frigidaire Refrigerator Evaporator Coil Cover
NI	241853202 Frigidaire Refrigerator Screw
NIA	5304508006 Frigidaire Refrigerator Bushing
NI	5304508007 Frigidaire Refrigerator Bracket
NI	242054802 Frigidaire Refrigerator Grille Kickplate Black
NI	242006903 Frigidaire Refrigerator Air Duct
NI	242071201 Frigidaire Refrigerator Cover
NI	5304515677 Frigidaire Package of 4 Screws
NI	218515401 Frigidaire Refrigerator Clip
NIA	241695904 Frigidaire Refrigerator Screw
1	218362501 Frigidaire Refrigerator Screw
5	5304503130 Frigidaire Refrigerator Cover
6	218249809 Frigidaire Refrigerator Seal
8	241860111 Frigidaire Refrigerator Evaporator Gasket
9	241860112 Frigidaire Refrigerator Evaporator Gasket
10	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10A	5304508010 Frigidaire Refrigerator Spring
13	5304510255 Frigidaire Refrigerator Air Tower
14A	241860104 Frigidaire Refrigerator Coil Cover Gasket
15B	241860105 Frigidaire Refrigerator Gasket-Coil Cover
15A	MOTOR
17A	5304453707 Frigidaire Oven Screw
21	242060202 Frigidaire Refrigerator Switch-Light/Lamp
21C	242202701 Frigidaire Refrigerator Lens
21A	240494001 Frigidaire Refrigerator Plug Button
21A	5304525264 Frigidaire LED Light
23	5304455650 Frigidaire Refrigerator Screw
25	5304508008 Frigidaire Refrigerator Gasket
30	241732101 Frigidaire Refrigerator Screw
35	242015001 Frigidaire Refrigerator Screw
35A	218252201 Frigidaire Refrigerator Screw
37	240383407 Frigidaire Refrigerator Screw
38	241778702 Frigidaire Refrigerator Bracket-Anti Tip
38A	5304508044 Frigidaire Refrigerator Hinge Assembly
40B	241761301 Frigidaire Upper Bracket Hinge
40A	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
40	5304508045 Frigidaire Refrigerator Hinge Assembly
42	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
43	5304504486 Frigidaire Refrigerator Right Hand Black Upper Hinge Cover
45	5304504487 Frigidaire Refrigerator Upper Left Hand Black Hinge Cover
50	241862402 Frigidaire Refrigerator Upper Hinge Cover
54	240578902 Frigidaire Screw Mounting Hinge
58	5304499445 Frigidaire Refrigerator Roller Assembly
59	241500303 Frigidaire Refrigerator Screw
63	5304510308 Frigidaire Refrigerator Board Assembly
72	807854301 Frigidaire Refrigerator Support
81	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
90	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
91	240597220 Frigidaire Sensor
92A	241842301 Frigidaire Refrigerator Thermistor Cap
93B	241953902 Frigidaire Refrigerator Screw
94C	241969001 Frigidaire Refrigerator Cap
96	5304508041 Frigidaire Refrigerator Cover
97	241710601 Frigidaire Refrigerator Screw
100	241835502 Frigidaire Refrigerator Black Light Switch
101	5303918775 Frigidaire Refrigerator Thermistor
102	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241860110 Frigidaire Refrigerator Gasket-Coil Cover
108	242157601 Frigidaire Refrigerator Cover
109	242157801 Frigidaire Refrigerator Cover
121	242157501 Frigidaire Refrigerator Cover
122	5304512656 Frigidaire Refrigerator Housing
123	5304512640 Frigidaire Refrigerator Cover
124	PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
125	241860103 Frigidaire Refrigerator Gasket-Evaporator
126	241860117 Frigidaire Gasket
